凹腔多孔介质吸热器耦合传热模型性能优化

doi:10.16085/j.issn.1000-6613.2024-2071

摘要/Abstract

摘要：

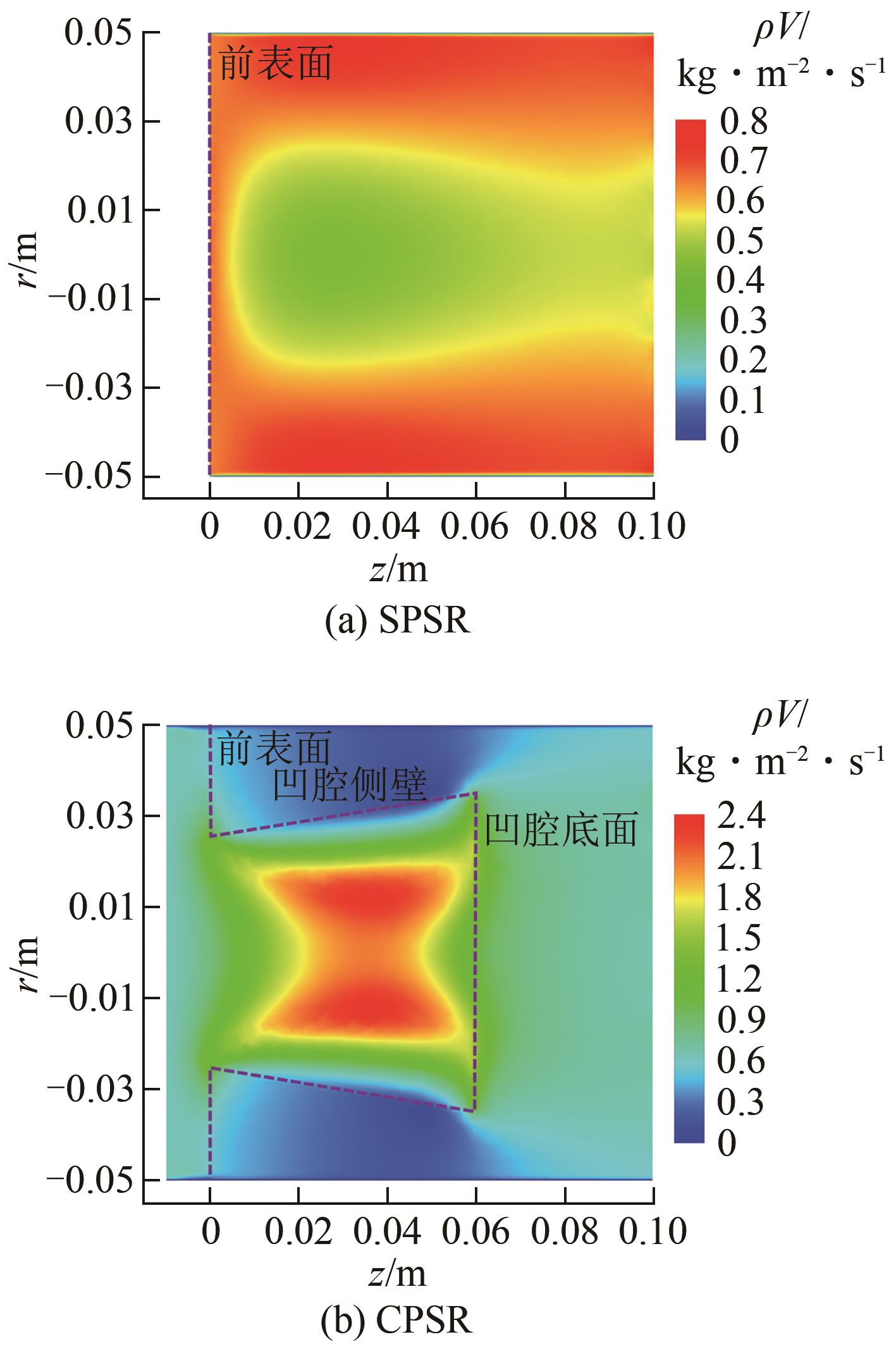

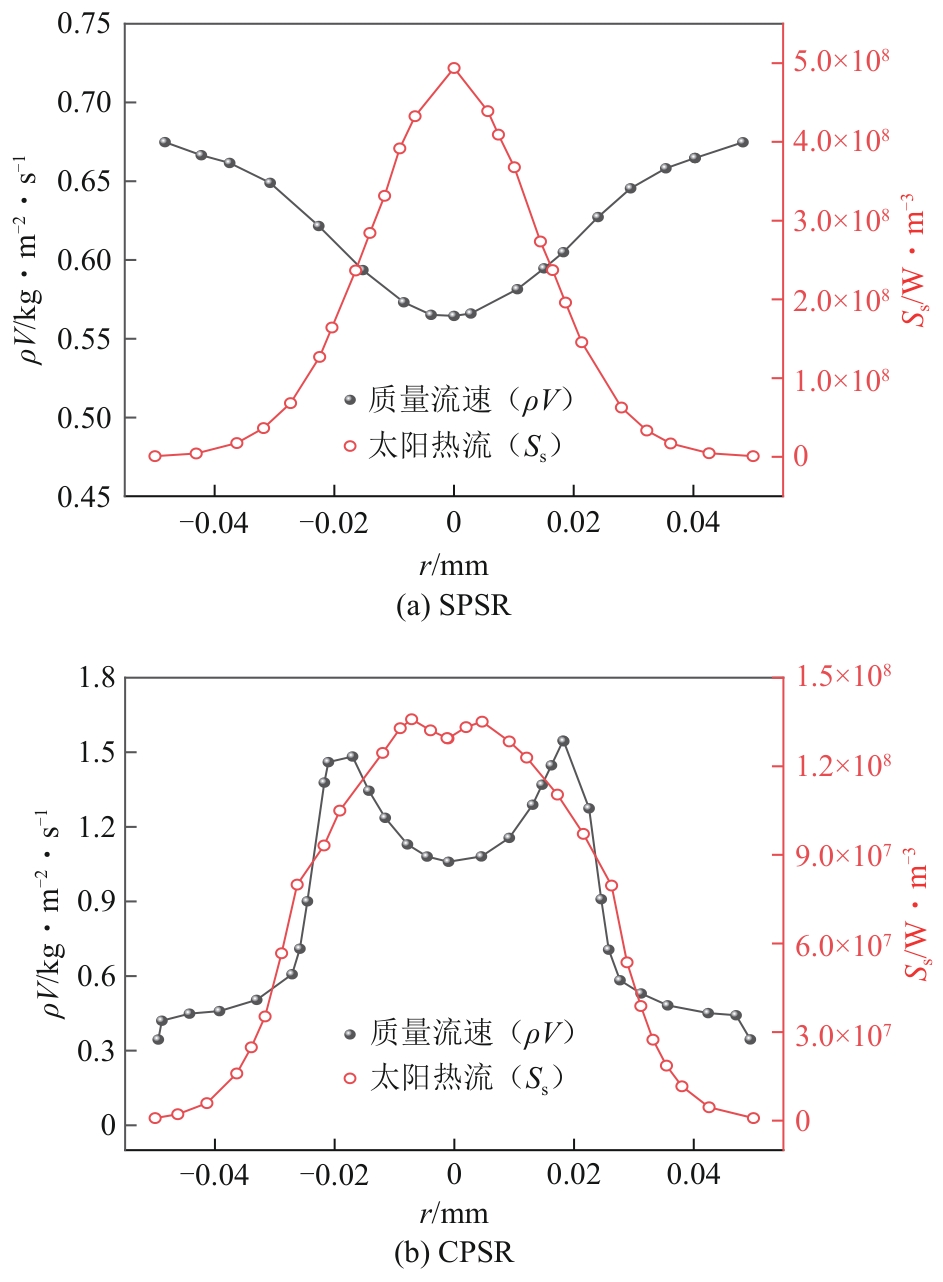

为解决多孔介质吸热器质量流速与聚集太阳能流密度不匹配、固体峰值温度高及红外辐射损失大的问题，本文提出了一种凹腔多孔介质吸热器模型，建立了凹腔多孔介质吸热器耦合传热模型，并进行了验证。在此基础上，以热效率和固体峰值温度为优化目标，采用正交优化法分析凹腔形状和几何尺寸对优化目标的影响规律。结果表明，渐扩型凹腔吸热器的热效率高于渐缩型和圆柱型，且开口半径对热效率影响最显著，凹腔深度是决定固体峰值温度的关键因素。通过极差和方差综合分析得到凹腔吸热芯的最佳几何尺寸。在质量流率 $m ˙ f$ =5g/s的标准工况下，与实心多孔介质吸热器相比，最佳凹腔多孔介质吸热器的固体峰值温度较前者降低488K，热效率提升了约21百分点。本文研究结果为多孔介质吸热器综合性能优化和技术创新提供参考依据。

关键词: 太阳能, 吸热器, 多孔介质, 传热性能, 热效率

Abstract:

A cavity-shaped porous solar receiver (CPSR) with a cavity at the inlet section was proposed to solve the mismatch between the mass velocity of the heat transfer fluid (HTF) and the distribution of concentrated solar flux (CSF), as well as the issues of high solid peak temperature and significant infrared radiation losses. Based on a coupled heat transfer model and validation through a small-scale solar simulator, the influence of cavity shape and geometric dimensions on optimization objectives (thermal efficiency and solid peak temperature) was analyzed using orthogonal optimization. The results indicated that the divergent cavity-shaped receiver exhibited higher thermal efficiency compared to the convergent and cylindrical cavity designs. The opening radius had the most significant effect on thermal efficiency, while the depth was the key factor determining the solid peak temperature. Comprehensive range and variance analyses revealed that the optimal geometric dimensioned for the CPSR. At the standard mass flow rate of 5g/s, the solid peak temperature of the optimal CPSR decreased by 488K compared to the solid porous solar receiver (SPSR), while the thermal efficiency increased by approximately 21.48%. The findings provide a valuable reference for improving the heat transfer performance of PSR.

Key words: solar energy, solar receiver, porous media, thermal performance, thermal efficiency

中图分类号:

TK513.3

戴贵龙, 刘益硕, 穆龙坤, 龚凌褚. 凹腔多孔介质吸热器耦合传热模型性能优化[J]. 化工进展, 2025, 44(6): 3258-3270.

DAI Guilong, LIU Yishuo, MU Longkun, GONG Lingchu. Optimization on coupled heat transfer model performance of cavity-shaped porous solar receivers[J]. Chemical Industry and Engineering Progress, 2025, 44(6): 3258-3270.

图/表 17

参考文献 31

[1]	HE Yaling, DU Shen, SHEN Sheng. Advances in porous volumetric solar receivers and enhancement of volumetric absorption[J]. Energy Reviews, 2023, 2(3): 100035.
[2]	BECKER M, FEND Th, HOFFSCHMIDT B, et al. Theoretical and numerical investigation of flow stability in porous materials applied as volumetric solar receivers[J]. Solar Energy, 2006, 80(10): 1241-1248.
[3]	李青, 白凤武, 张亚南. 碳化硅泡沫陶瓷空气吸热器性能数值模拟[J]. 化工学报, 2014, 65(S1): 217-222.
	LI Qing, BAI Fengwu, ZHANG Yanan. Numerical simulation of heat transfer between air flow and ceramic foam in air receiver[J]. CIESC Journal, 2014, 65(S1): 217-222.
[4]	SEDIGHI Mohammadreza, PADILLA Ricardo Vasquez, TAYLOR Robert A, et al. High-temperature, point-focus, pressurised gas-phase solar receivers: A comprehensive review[J]. Energy Conversion and Management, 2019, 185: 678-717.
[5]	AVILA-MARIN A L, FERNANDEZ-RECHE J, MARTINEZ-TARIFA A. Modelling strategies for porous structures as solar receivers in central receiver systems: A review[J]. Renewable and Sustainable Energy Reviews, 2019, 111: 15-33.
[6]	BEHZAD Masoud, HERRMANN Benjamin, CALDERÓN-MUÑOZ Williams R, et al. Thermo-structural analysis of a honeycomb-type volumetric absorber for concentrated solar power applications[J]. International Journal of Numerical Methods for Heat & Fluid Flow, 2022, 32(2): 598-615.
[7]	KRIBUS Abraham, GRAY Yonatan, GRIJNEVICH Michael, et al. The promise and challenge of solar volumetric absorbers[J]. Solar Energy, 2014, 110: 463-481.
[8]	BENOIT H, PÉREZ LÓPEZ I, GAUTHIER D, et al. On-Sun demonstration of a 750℃ heat transfer fluid for concentrating solar systems: Dense particle suspension in tube[J]. Solar Energy, 2015, 118: 622-633.
[9]	FEND Thomas, Robert PITZ-PAAL, REUTTER Oliver, et al. Two novel high-porosity materials as volumetric receivers for concentrated solar radiation[J]. Solar Energy Materials and Solar Cells, 2004, 84(1/2/3/4): 291-304.
[10]	CHEN Xue, XIA Xinlin, MENG Xianlong, et al. Thermal performance analysis on a volumetric solar receiver with double-layer ceramic foam[J]. Energy Conversion and Management, 2015, 97: 282-289.
[11]	ZAVERSKY Fritz, ALDAZ Leticia, Marcelino SÁNCHEZ, et al. Numerical and experimental evaluation and optimization of ceramic foam as solar absorber—Single-layer vs multi-layer configurations[J]. Applied Energy, 2018, 210: 351-375.
[12]	DU Shen, XIA Tian, HE Yaling, et al. Experiment and optimization study on the radial graded porous volumetric solar receiver matching non-uniform solar flux distribution[J]. Applied Energy, 2020, 275: 115343.
[13]	CAPUANO Raffaele, FEND Thomas, STADLER Hannes, et al. Optimized volumetric solar receiver: Thermal performance prediction and experimental validation[J]. Renewable Energy, 2017, 114: 556-566.
[14]	Mahmoud ALI, RADY Mohamed, ATTIA Mohamed A A, et al. Consistent coupled optical and thermal analysis of volumetric solar receivers with honeycomb absorbers[J]. Renewable Energy, 2020, 145: 1849-1861.
[15]	戴贵龙, 夏雨婷, 谢林毅, 等. 半透明玻璃管束吸热芯聚集太阳光传输特性分析[J]. 太阳能学报, 2020, 41(7):222-226.
	DAI Guilong, XIA Yuting, XIE Linyi, et al. Transferring performances of concentrated sunlight inside quartz glass pipe bundle absorber.[J]. Acta Energiae Solaris Sinica, 2020， 41(7):222-226.
[16]	MENG Xianlong, XIA Xinlin, ZHANG Shunde, et al. Coupled heat transfer performance of a high temperature cup shaped porous absorber[J]. Energy Conversion and Management, 2016, 110: 327-337.
[17]	TENG Liang, XUAN Yimin. Thermal and hydrodynamic performance of a novel volumetric solar receiver[J]. Solar Energy, 2018, 163: 177-188.
[18]	LI Xiaolei, XIA Xinlin, SUN Chuang, et al. Performance analysis on a volumetric solar receiver with an annular inner window[J]. Renewable Energy, 2021, 170: 487-499.
[19]	LI Tao, XIE Lingtian, ZHAO Boyang, et al. Analysis on the effects of different receiver structures and porous parameters on the volumetric effects and heat transfer performance of porous volumetric solar receiver[J]. International Journal of Energy Research, 2023, 2023(1): 3289428.
[20]	LONI Reyhaneh, ASKARI ASLI-ARDEH E, GHOBADIAN B, et al. Numerical comparison of a solar dish concentrator with different cavity receivers and working fluids[J]. Journal of Cleaner Production, 2018, 198: 1013-1030.
[21]	DAABO Ahmed M, MAHMOUD Saad, AL-DADAH Raya K. The effect of receiver geometry on the optical performance of a small-scale solar cavity receiver for parabolic dish applications[J]. Energy, 2016, 114: 513-525.
[22]	LONI Reyhaneh, ASKARI ASLI-AREH E, GHOBADIAN B, et al. Research and review study of solar dish concentrators with different nanofluids and different shapes of cavity receiver: Experimental tests[J]. Renewable Energy, 2020, 145: 783-804.
[23]	DEHGHAN Maziar, JAMAL-ABAD Milad Tajik, RASHIDI Saman. Analytical interpretation of the local thermal non-equilibrium condition of porous media imbedded in tube heat exchangers[J]. Energy Conversion and Management, 2014, 85: 264-271.
[24]	JIANG Peixue, REN Zepei. Numerical investigation of forced convection heat transfer in porous media using a thermal non-equilibrium model[J]. International Journal of Heat and Fluid Flow, 2001, 22(1): 102-110.
[25]	XIA Xinlin, CHEN Xue, SUN Chuang, et al. Experiment on the convective heat transfer from airflow to skeleton in open-cell porous foams[J]. International Journal of Heat and Mass Transfer, 2017, 106: 83-90.
[26]	VILLAFÁN-VIDALES H I, ABANADES Stéphane, CALIOT Cyril, et al. Heat transfer simulation in a thermochemical solar reactor based on a volumetric porous receiver[J]. Applied Thermal Engineering, 2011, 31(16): 3377-3386.
[27]	CUNSOLO Salvatore, COQUARD Rémi, BAILLIS Dominique, et al. Radiative properties of irregular open cell solid foams[J]. International Journal of Thermal Sciences, 2017, 117: 77-89.
[28]	STASER J, BIRSS V, GOSTICK J, et al. Characterization of porous materials 6[M]. State of New Jersey, USA: The Electrochemical Society, 2014.
[29]	WU Zhiyong, CALIOT Cyril, FLAMANT Gilles, et al. Coupled radiation and flow modeling in ceramic foam volumetric solar air receivers[J]. Solar Energy, 2011, 85(9): 2374-2385.
[30]	HEISEL Cyprien, CALIOT Cyril, CHARTIER Thierry, et al. Digital design and 3D printing of innovative SiC architectures for high temperature volumetric solar receivers[J]. Solar Energy Materials and Solar Cells, 2021, 232: 111336.
[31]	李云雁, 胡传荣. 试验设计与数据处理[M]. 北京: 化学工业出版社, 2005: 256.
	LI Yunyan, HU Chuanrong. Experiment design and data processing[M]. Beijing: Chemical Industry Press, 2005: 256.

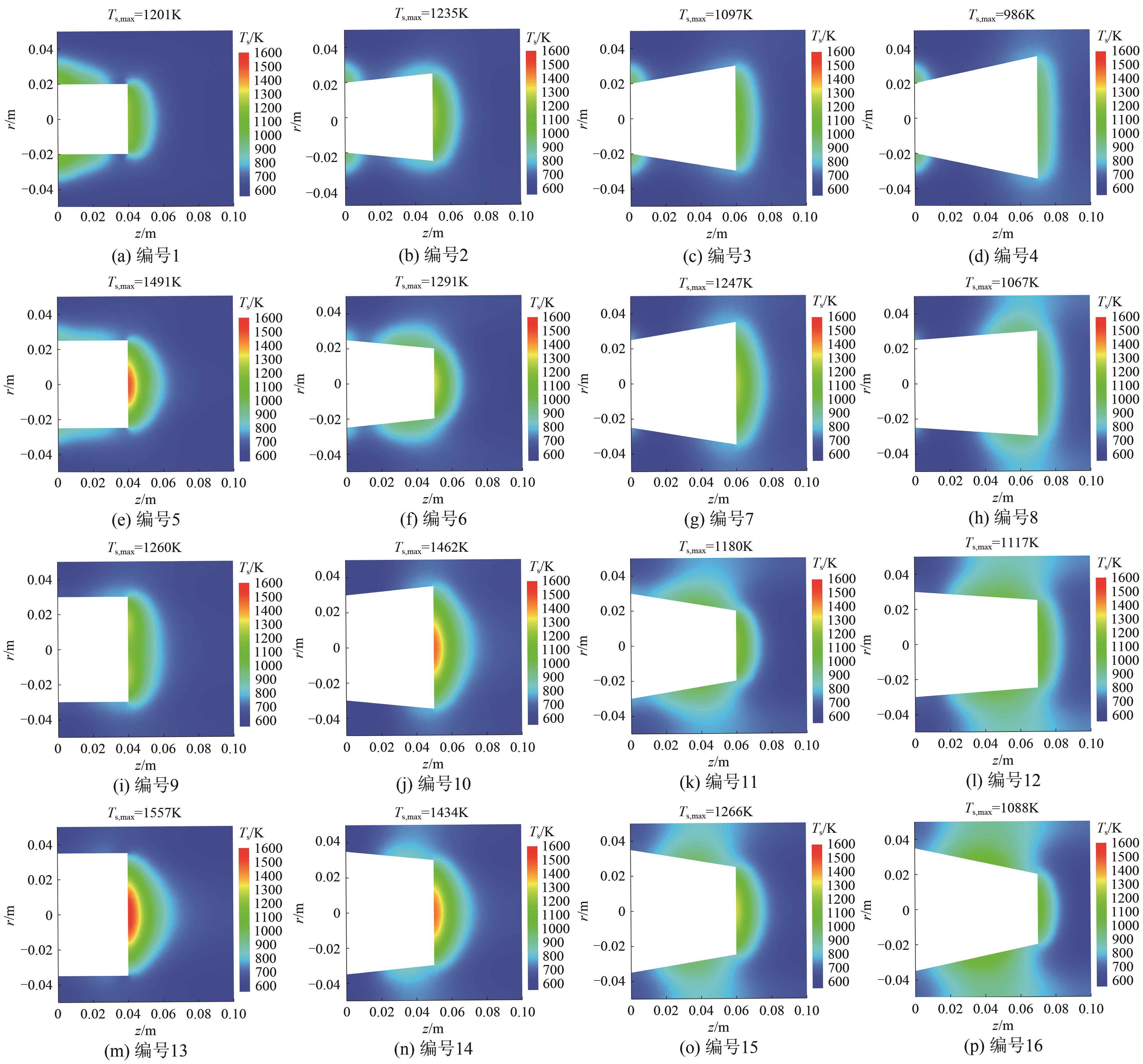

编号（形状）	因素			优化目标
编号（形状）	A：R₁/mm	B：L₁/mm	C：R₂/mm	η/%	T_s,max/K
1（圆柱）	20	40	20	81.07	1201
16（渐缩）	35	70	20	81.10	1088
13（圆柱）	35	40	35	82.75	1557
15（渐缩）	35	60	25	83.06	1266
5（圆柱）	25	40	25	83.98	1491
14（渐缩）	35	50	30	84.27	1434
11（渐缩）	30	60	20	84.65	1180
9（圆柱）	30	40	30	85.21	1260
12（渐缩）	30	70	25	85.64	1117
6（渐缩）	25	50	20	86.15	1291
2（渐扩）	20	50	25	86.36	1235
10（渐扩）	30	50	35	86.61	1462
3（渐扩）	20	60	30	87.09	1097
4（渐扩）	20	70	35	87.54	986
8（渐扩）	25	70	30	88.05	1067
7（渐扩）	25	60	35	88.35	1247

编号（形状）	因素			优化目标
编号（形状）	A：R₁/mm	B：L₁/mm	C：R₂/mm	η/%	T_s,max/K
1（圆柱）	20	40	20	81.07	1201
16（渐缩）	35	70	20	81.10	1088
13（圆柱）	35	40	35	82.75	1557
15（渐缩）	35	60	25	83.06	1266
5（圆柱）	25	40	25	83.98	1491
14（渐缩）	35	50	30	84.27	1434
11（渐缩）	30	60	20	84.65	1180
9（圆柱）	30	40	30	85.21	1260
12（渐缩）	30	70	25	85.64	1117
6（渐缩）	25	50	20	86.15	1291
2（渐扩）	20	50	25	86.36	1235
10（渐扩）	30	50	35	86.61	1462
3（渐扩）	20	60	30	87.09	1097
4（渐扩）	20	70	35	87.54	986
8（渐扩）	25	70	30	88.05	1067
7（渐扩）	25	60	35	88.35	1247

优化目标	因素
优化目标	A	B	C
η
K1	3.420601	3.330014	3.329633
K2	3.465237	3.433888	3.390439
K3	3.421021	3.431493	3.446158
K4	3.311755	3.423217	3.452385
R	0.153482	0.103874	0.122752
T_s,max
K1	4519	5509	4760
K2	5096	5422	5109
K3	5019	4790	4858
K4	5345	4258	5252
R	826	1251	492

优化目标	因素
优化目标	A	B	C
η
K1	3.420601	3.330014	3.329633
K2	3.465237	3.433888	3.390439
K3	3.421021	3.431493	3.446158
K4	3.311755	3.423217	3.452385
R	0.153482	0.103874	0.122752
T_s,max
K1	4519	5509	4760
K2	5096	5422	5109
K3	5019	4790	4858
K4	5345	4258	5252
R	826	1251	492
