表面活性剂强化重质油矿溶剂萃取残渣中残留溶剂鼓泡分离

doi:10.16085/j.issn.1000-6613.2021-0767

摘要/Abstract

摘要：

针对重质油矿溶剂萃取残渣中残留溶剂的回收和去除问题，本文在鼓泡分离工艺的基础上提出了表面活性剂强化鼓泡分离工艺，探究了表面活性剂种类对于鼓泡分离过程的影响，并研究了阴离子表面活性剂十二烷基硫酸钠（SDS）对于鼓泡分离过程的动力学。结果表明，表面活性剂种类对去除效果具有重要影响：SDS可以通过降低甲苯-水界面张力和增加固体表面的亲水性，促进甲苯液层从固体颗粒表面的脱离，进而强化鼓泡分离过程，该过程符合一级动力学模型。然而，阳离子表面活性剂十四烷基三甲基溴化铵（C₁₄TAB）和双亲性表面活性剂月桂基甜菜碱（SB-12）则通过增加固体表面的疏水性，促使颗粒离开溶液体系，抑制了鼓泡分离的进行，但由于SB-12对固体表面改性的程度弱于C₁₄TAB，SB-12的抑制作用弱于C₁₄TAB，且随鼓泡时间的延长，SB-12对甲苯-水界面张力的改变成为影响鼓泡分离效果的主要因素，SB-12对鼓泡分离过程的影响由抑制转为强化，但C₁₄TAB在鼓泡分离过程中始终呈现抑制作用。上述结果对于类似的固相溶剂萃取后残留溶剂去除或回收具有一定的理论指导意义。

关键词: 分离, 表面活性剂, 界面张力, 过程强化, 动力学模型

Abstract:

Aiming at the recovery and removal of residual solvents in the solvent extraction residues of heavy oil mines, a surfactant-enhanced bubbling separation process based on the bubbling separation process was proposed. The influence of surfactant types on the bubbling separation process was explored, and the kinetics of the anionic surfactant sodium dodecyl sulfate (SDS) on the bubbling separation process was studied. The results showed that the type of surfactant has an important influence on the removal effect. By reducing the toluene-water interfacial tension and increasing the hydrophilicity of the solid surface, the anionic surfactant SDS promoted the separation of the toluene liquid layer from the surface of the solid particles, thereby strengthening the bubbling separation process. The first-order kinetic model of the process was confirmed. However, the cationic surfactant tetradecyl trimethyl ammonium bromide (C₁₄TAB) and the amphiphilic surfactant lauryl betaine (SB-12) increased the hydrophobicity of the solid surface, which promoted the particled to leave the solution system and inhibited the progress of bubbling separation. But the degree of SB-12 modification on the solid surface was weaker than that of C₁₄TAB, so the inhibitory effect of SB-12 was weaker than that of C₁₄TAB. With the extension of the bubbling time, the change of toluene-water interfacial tension caused by SB-12 became the main factor affecting the effect of bubbling separation, the effect of SB-12 on the bubbling separation process changed from inhibition to enhancement. But C₁₄TAB always exhibited an inhibitory effect during the bubbling separation process. The above results had certain theoretical significance for the removal and recovery of residual solvents after similar solid-phase solvent extraction.

Key words: separation, surfactant, interfacial tension, process intensification, kinetic model

中图分类号:

TE99

宋飞, 王君妍, 何林, 隋红, 李鑫钢. 表面活性剂强化重质油矿溶剂萃取残渣中残留溶剂鼓泡分离[J]. 化工进展, 2022, 41(4): 2007-2014.

SONG Fei, WANG Junyan, HE Lin, SUI Hong, LI Xingang. Surfactant enhancement of bubbling for separation of residual solvent from oil sands residue after solvent extraction[J]. Chemical Industry and Engineering Progress, 2022, 41(4): 2007-2014.

图/表 11

参考文献 21

1	王君妍，白云，马国强，等. 重质油-固体系分离与资源化回收研究进展[J]. 化工进展, 2019, 38(1): 649-663.
	WAN Junyan, BAI Yun, MA Guoqiang, et al. Recent advances in separation and recovery of oil from heavy oil-solid systems[J].Chemical Industry and Engineering Progress, 2019, 38(1): 649-663.
2	SANTOS R G, LOH W, BANNWART A C, et al. An overview of heavy oil properties and its recovery and transportation methods[J]. Brazilian Journal of Chemical Engineering, 2014, 31(3): 571-590.
3	HEATH G A, MASNADI M S, EL-HOUJEIRI H M, et al. Global carbon intensity of crude oil production[J]. Science, 2018, 361(6405): 851-853.
4	MASLIYAH J, ZHOU Z J, XU Z H, et al. Understanding water-based bitumen extraction from athabasca oil sands[J]. The Canadian Journal of Chemical Engineering, 2004, 82(4): 628-654.
5	LIN F, STOYANOV S R, XU Y M. Recent advances in nonaqueous extraction of bitumen from mineable oil sands: a review[J]. Organic Process Research & Development, 2017, 21(4): 492-510.
6	LI X G, YANG Z Q, SUI H, et al. A hybrid process for oil-solid separation by a novel multifunctional switchable solvent[J]. Fuel, 2018, 221: 303-310.
7	SUI H, MA G Q, HE L, et al. Recovery of heavy hydrocarbons from Indonesian carbonate asphalt rocks (I): Solvent extraction, particle sedimentation, and solvent recycling[J]. Energy & Fuels, 2016, 30(11): 9242-9249.
8	GONG Z Q, DU A X, WANG Z B, et al. Analysis on integrated thermal treatment of oil sludge by Aspen Plus[J]. Waste Manage, 2019, 87: 512-524.
9	MA Y, LI S Y. The pyrolysis, extraction and kinetics of Buton oil sand bitumen[J]. Fuel Processing Technology, 2012, 100: 11-15.
10	DING M S, ZHANG Y, LIU J, et al. Application of microbial enhanced oil recovery technology in water-based bitumen extraction from weathered oil sands[J]. American Institute of Chemical Engineers, 2014, 60(8): 2985-2993.
11	HE L, LIN F, LI X G, et al. Interfacial sciences in unconventional petroleum production: from fundamentals to applications[J]. Chemical Society Reviews, 2015, 44(15): 5446-5494.
12	LI X G, HE L, WU G Z, et al. Operational parameters, evaluation methods, and fundamental mechanisms: aspects of nonaqueous extraction of bitumen from oil sands[J]. Energy & Fuels, 2012, 26(6): 3553-3563.
13	NIKAKHTARI H, PAL K, WOLF S, et al. Solvent removal from cyclohexane-extracted oil sands gangue[J]. The Canadian Journal of Chemical Engineering, 2016, 94(3): 408-414.
14	PANDA S, PAL K, MERZARA S, et al. Transport and removal of a solvent in porous media in the presence of bitumen, a highly viscous solute[J]. Chemical Engineering Science, 2017, 165: 229-239.
15	RENAUD R, PAL K, WEIß T, et al. Vacuum drying of cyclohexane from solvent-extracted oil sands gangue[J]. The Canadian Journal of Chemical Engineering, 2017, 95(3): 459-466.
16	WANG J Y, LI X G, MA G Q, et al. Removal of residual solvent from solvent-extracted unconventional oil ores gangue by gas bubbling[J]. Separation and Purification Technology, 2021, 254: 117551.
17	NAJAFI A S, DRELICH J, YEUNG A, et al. A novel method of measuring electrophoretic mobility of gas bubbles[J]. Journal of Colloid and Interface Science, 2007, 308(2): 344-350.
18	蒋平, 张贵才, 葛际江, 等. 表面活性剂剥离固体表面原油机理[J]. 石油学报(石油加工), 2008, 24(2): 222-226.
	JIANG Ping, ZHANG Guicai, GE Jijiang, et al. The mechanism of oil displacement from solid surface by surfactant[J]. Acta Petrolei Sinica (Petroleum Processing Section), 2008, 24(2): 222-226
19	HARKINS W D, Films FELDMAN A.. the spreading of liquids and the spreading coefficient[J]. Journal of the American Chemical Society, 1922, 44(12): 2665-2685.
20	SCHRADER M E. Young-dupre revisited[J]. Langmuir, 1995, 11(9): 3585-3589.
21	HUANG S-D, VALSARAJ K T, Wilson D J. Removal of refractory organics by aeration ( Ⅴ ): Solvent sublation of naphthalene and phenanthrene[J]. Separation Science and Technology, 1983, 18(10): 941-968.

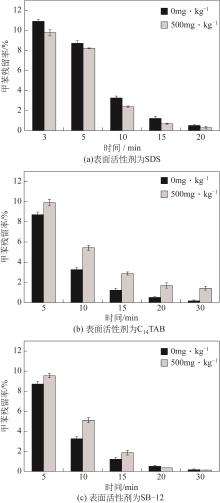

时间 /min	甲苯残留量 (无表面活性剂)/%	表面活性剂强化程度/%
时间 /min	甲苯残留量 (无表面活性剂)/%	SDS	TTAB	SB-12
3	10.91	10.42	—	—
5	8.72	5.67	-13.23	-9.13
10	3.27	26.55	-67.46	-57.45
15	1.22	43.71	-135.28	-52.94
20	0.52	43.41	-226.11	30.31
30	0.17	—	-731.21	19.59

时间 /min	甲苯残留量 (无表面活性剂)/%	表面活性剂强化程度/%
时间 /min	甲苯残留量 (无表面活性剂)/%	SDS	TTAB	SB-12
3	10.91	10.42	—	—
5	8.72	5.67	-13.23	-9.13
10	3.27	26.55	-67.46	-57.45
15	1.22	43.71	-135.28	-52.94
20	0.52	43.41	-226.11	30.31
30	0.17	—	-731.21	19.59

表面活性剂浓度/mg·kg^-1	W_ad（T/W）/mJ·m^-2
表面活性剂浓度/mg·kg^-1	SDS	C₁₄TAB	SB-12
0	64.6	64.6	64.6
191	55	67.5	66.6
381	58.2	70.3	60.1
572	60.6	63.7	59.1
762	59.6	63.8	58.9
953	58.8	67.9	58.3

表面活性剂浓度/mg·kg^-1	W_ad（T/W）/mJ·m^-2
表面活性剂浓度/mg·kg^-1	SDS	C₁₄TAB	SB-12
0	64.6	64.6	64.6
191	55	67.5	66.6
381	58.2	70.3	60.1
572	60.6	63.7	59.1
762	59.6	63.8	58.9
953	58.8	67.9	58.3

水量/mL	去离子水		SDS溶液
水量/mL	c_y /mol·L^-1	H	c_y /mol·L^-1	H
10	0.00096	0.185	0.00075	0.1445
15	0.00103	0.198	0.00089	0.1723
20	0.00107	0.2052	0.00069	0.1322
