Preparation and properties of polyacrylate latex pressure-sensitive adhesive with high peel strength

doi:10.16085/j.issn.1000-6613.2024-1904

Abstract

Abstract:

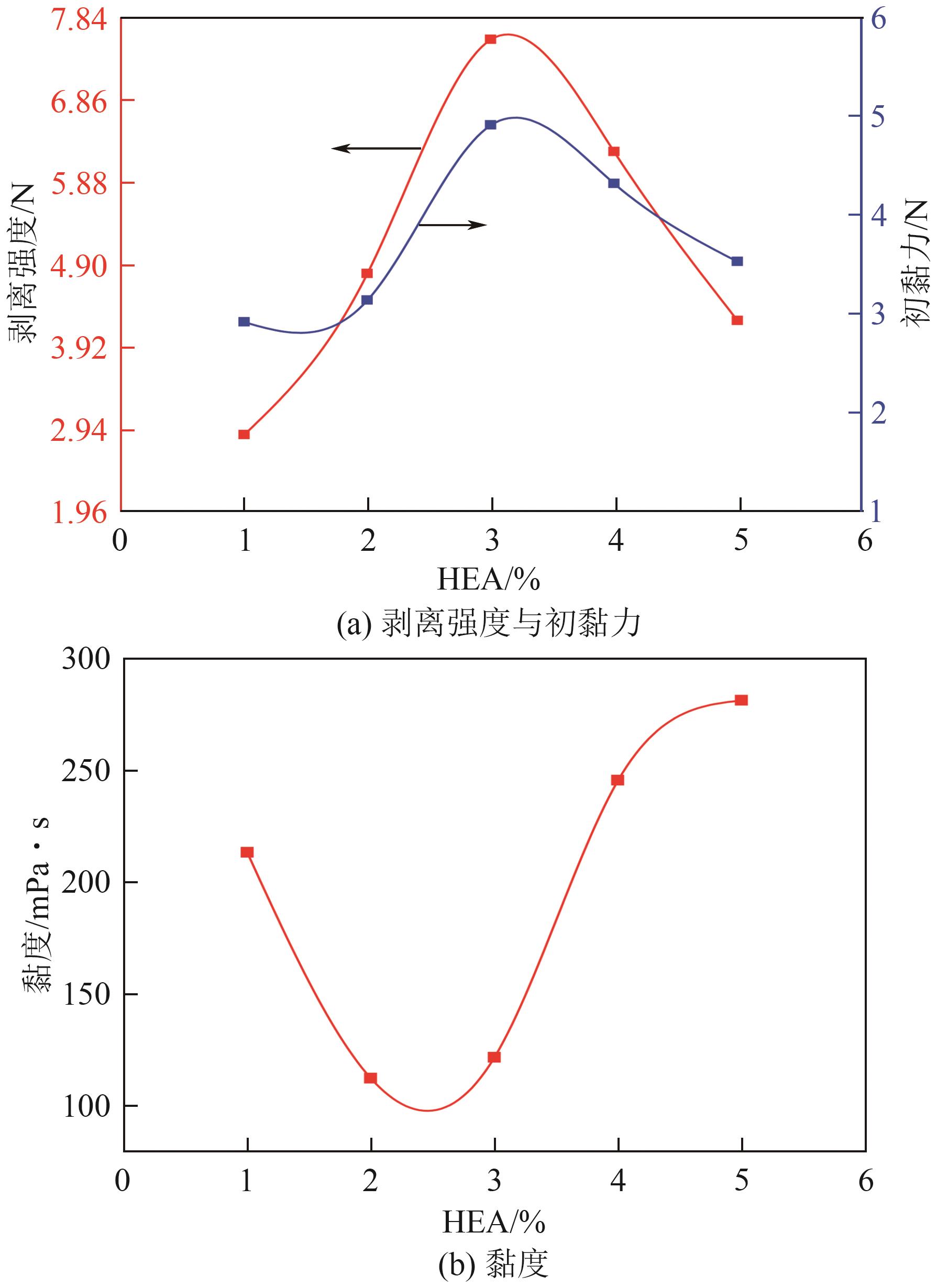

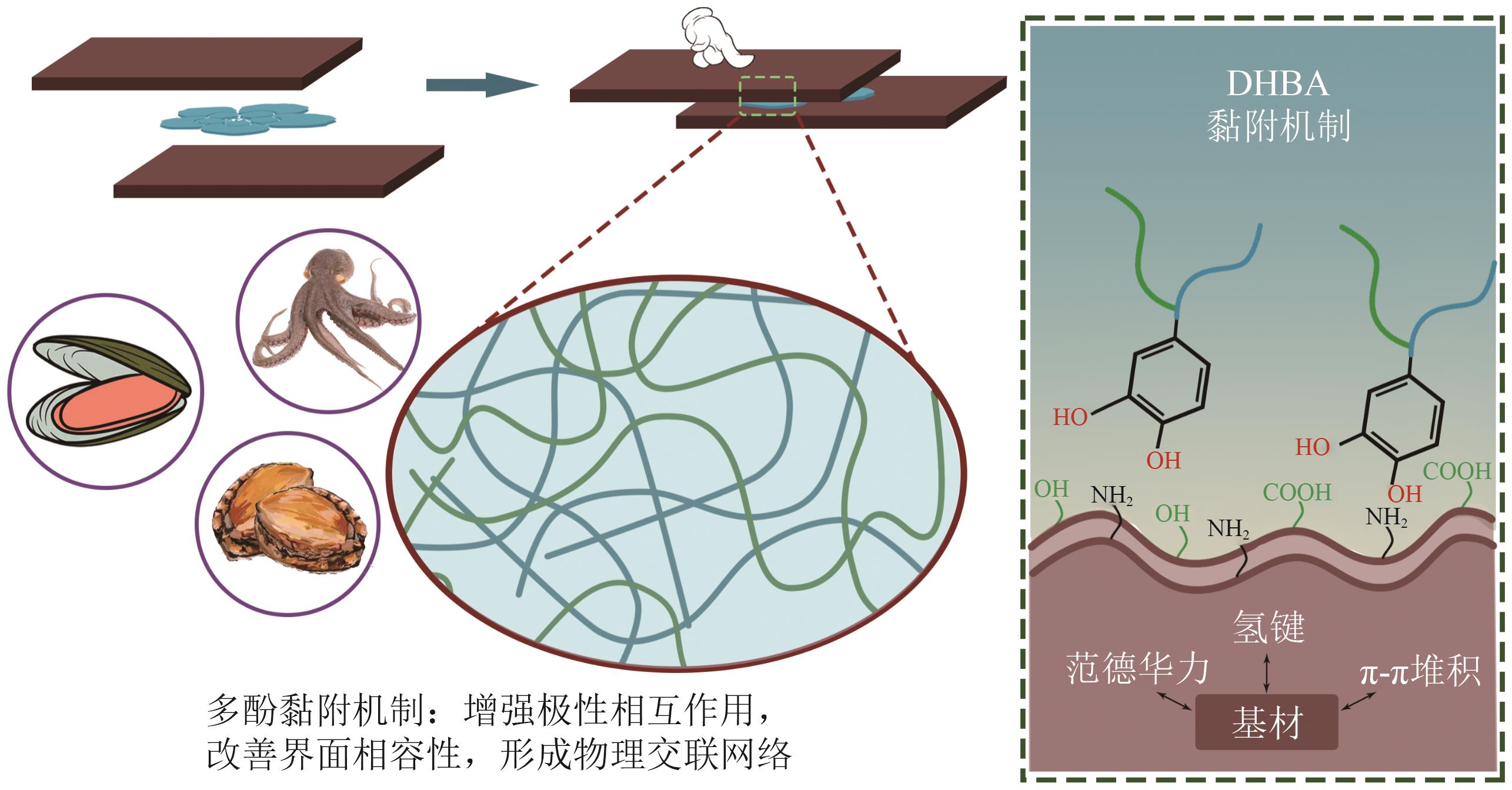

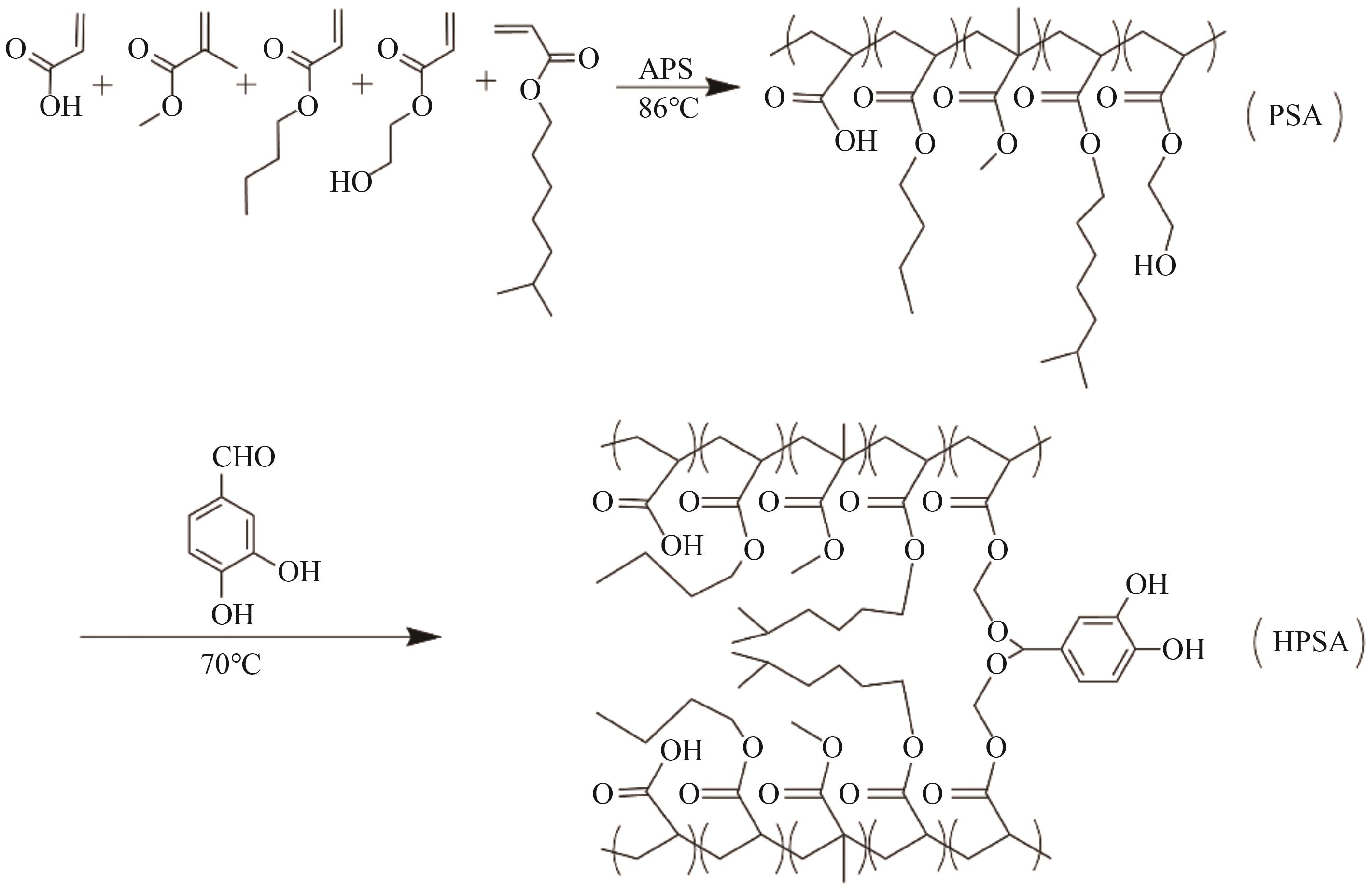

To improve the peel strength of emulsion-type polyacrylate pressure-sensitive adhesives (PSA), from the perspective of natural adhesion systems, polyacrylate emulsion PSA were prepared by semi-continuous emulsion polymerization using butyl acrylate (BA), 2-ethylhexyl acrylate (EHA), methyl methacrylate (MMA), acrylic acid (AA) and hydroxyethyl acrylate (HEA) as raw materials. Then, 3,4-dihydroxybenzaldehyde (DHBA), which had a structure similar to that of biological polyphenols, was used as a modified functional monomer for grafting and cross-linking modification to synthesize polyacrylate emulsion pressure-sensitive adhesives with high peel strength and no residual adhesive (HPSA). The effects of the amounts of DHBA, emulsifier, initiator and HEA on the bonding properties, viscosity and residual adhesive after peeling of HPSA were discussed in detail. The results showed that when the amount of DHBA was 4.0% (based on the total mass of soft and hard monomers, the same below), the amount of emulsifier was 1.4%, the amount of initiator was 0.5% and the amount of HEA was 3.0%, HPSA exhibited the best comprehensive performance. The 180° peel strength was 8.27N/25mm, the initial circular tack was 5.75N, the holding power was greater than 72h, and there was no residual adhesive on the mirror panel. Therefore, it had a good application prospect.

Key words: polyacrylate latex pressure-sensitive adhesive, 3,4-dihydroxybenzaldehyde, modification, bonding performance, high peel strength

摘要：

为改善乳液型聚丙烯酸酯压敏胶的剥离强度，从天然黏附系统角度，以丙烯酸丁酯（BA）、丙烯酸异辛酯（EHA）、甲基丙烯酸甲酯（MMA）、丙烯酸（AA）、丙烯酸羟乙酯（HEA）为原料通过半连续乳液聚合制备了聚丙烯酸酯乳液压敏胶（PSA），并利用具有类似生物多酚的结构3,4-二羟基苯甲醛（DHBA）为改性功能单体进行接枝交联改性，合成了具有高剥离强度无残胶的聚丙烯酸酯乳液压敏胶（HPSA），详细探讨了DHBA、乳化剂、引发剂及HEA用量对HPSA黏结性能、黏度及剥离后残胶的影响。结果表明：当DHBA用量为4.0%（以软硬单体总质量计，下同）、乳化剂用量1.4%、引发剂用量0.5%以及HEA用量3.0%时，HPSA的综合性能最佳，180°剥离强度为8.27N/25mm，环形初黏力为5.75N，持黏时间>72h，且镜面板上无残胶，因而具有良好的应用前景。

关键词: 聚丙烯酸酯乳液压敏胶, 3,4-二羟基苯甲醛, 改性, 黏结性能, 高剥离强度

CLC Number:

TQ433

JIANG Chunyuan, SHEN Hanlin, ZHANG Xinrui, TIAN Jinsheng, CHEN Qingqing, LI Yinwen. Preparation and properties of polyacrylate latex pressure-sensitive adhesive with high peel strength[J]. Chemical Industry and Engineering Progress, 2025, 44(12): 7075-7085.

蒋春源, 沈瀚林, 张欣蕊, 田锦盛, 陈青青, 李因文. 高剥离强度聚丙烯酸酯乳液压敏胶制备与性能[J]. 化工进展, 2025, 44(12): 7075-7085.

Figures/Tables 17

References 34

[1]	房成, 王威, 韦丽芬, 等. 高固含量丙烯酸酯乳液压敏胶的制备及性能[J]. 精细化工, 2021, 38(4): 853-859.
	FANG Cheng, WANG Wei, WEI Lifen, et al. Preparation and properties of acrylate emulsion pressure sensitive adhesive with high solid content[J]. Fine Chemicals, 2021, 38(4): 853-859.
[2]	王贝贝, 曹盛, 崔傲, 等. 丙烯酸酯压敏胶的制备及性能研究[J]. 中国胶黏剂, 2023, 32(10): 48-52.
	WANG Beibei, CAO Sheng, CUI Ao, et al. Study on the preparation and properties of acrylate pressure sensitive adhesive[J]. China Adhesives, 2023, 32(10): 48-52.
[3]	SCHILLING M L, COLVIN V L, DHAR L, et al. Acrylate oligomer-based photopolymers for optical storage applications[J]. Chemistry of Materials, 1999, 11(2): 247-254.
[4]	WANG Gang, ZHOU Zhengxiang, CHEN Mengyu, et al. UV-curable polyurethane acrylate pressure-sensitive adhesives with high optical clarity for full lamination of TFT-LCD[J]. ACS Applied Polymer Materials, 2023, 5(3): 2051-2061.
[5]	SEOK Woong Cheol, LEEM Jong Tae, SONG Ho Jun. The effect of silane acrylate containing ethylene glycol chains on the adhesive performance and viscoelastic behavior of acrylic pressure-sensitive adhesives for flexible displays[J]. Polymers, 2023, 15(17): 3601.
[6]	KHALINA Morteza, SANEI Mahmood, MOBARAKEH Hamid Salehi, et al. Preparation of acrylic/silica nanocomposites latexes with potential application in pressure sensitive adhesive[J]. International Journal of Adhesion and Adhesives, 2015, 58: 21-27.
[7]	罗丹, 王志政, 张耘瑞, 等. 耐暗影水性聚丙烯酸酯乳液压敏胶黏剂的制备[J]. 精细化工, 2025, 42(1): 215-223.
	LUO Dan, WANG Zhizheng, ZHANG Yunrui, et al. Preparation of Shadow-resistant Waterborne Polyacrylate Emulsion pressure sensitive adhesives[J]. China Industrial Economics, 2025, 42(1): 215-223.
[8]	田莹, 乔永洛, 申亮. 木器用多重交联羟基丙烯酸酯乳液的制备与应用研究[J]. 涂料工业, 2019, 49(7): 53-58.
	TIAN Ying, QIAO Yongluo, SHEN Liang. Preparation and application of multi-crosslinking hydroxyl acrylate latex for wood varnish[J]. Paint & Coatings Industry, 2019, 49(7): 53-58.
[9]	Vishnu PRADEEP S, KANDASUBRAMANIAN Balasubramanian, SIDHARTH Sumati. A review on recent trends in bio-based pressure sensitive adhesives[J]. The Journal of Adhesion, 2023, 99(14): 2145-2166.
[10]	尉晓丽, 傅和青. 改性水性丙烯酸酯压敏胶研究进展[J]. 化工进展, 2012, 31(1): 176-184.
	WEI Xiaoli, FU Heqing. Progress in modification of waterborne acrylate pressure-sensitive adhesive[J]. Chemical Industry and Engineering Progress, 2012, 31(1): 176-184.
[11]	HERMENS Johannes G H, FREESE Thomas, VAN DEN BERG Keimpe J, et al. A coating from nature[J]. Science Advances, 2020, 6(51): eabe0026.
[12]	DROESBEKE Martijn A, AKSAKAL Resat, SIMULA Alexandre, et al. Biobased acrylic pressure-sensitive adhesives[J]. Progress in Polymer Science, 2021, 117: 101396.
[13]	CASAS-SOTO Carlos Rafael, CONEJO-DÁVILA Alain Salvador, OSUNA Velia, et al. Dibutyl itaconate and lauryl methacrylate copolymers by emulsion polymerization for development of sustainable pressure-sensitive adhesives[J]. Polymers, 2022, 14(3): 632.
[14]	Recent progress of mussel-inspired underwater adhesives[J]. Chinese Journal of Chemistry, 2017, 35(6): 811-820.
[15]	Brylee David B TIU, DELPARASTAN Peyman, NEY Max R, et al. Enhanced adhesion and cohesion of bioinspired dry/wet pressure-sensitive adhesives[J]. ACS Applied Materials & Interfaces, 2019, 11(31): 28296-28306.
[16]	YU Guofei, DAN Nianhua, DAN Weihua, et al. Wearable tissue adhesive ternary hydrogel of N-(2-hydroxyl)propyl-3-trimethyl ammonium chitosan, tannic acid, and polyacrylamide[J]. Industrial & Engineering Chemistry Research, 2022, 61(16): 5502-5513.
[17]	JU Yi, WANG Junjie, LEI Yang, et al. A dry double-sided tape post-treated with tannic acid for long-term adhesion in a wet environment[J]. Journal of Materials Chemistry B, 2024, 12(33): 8142-8152.
[18]	DENG Xueliang, LI Dangwei, CHEN Lemin, et al. Preparation and properties of biocompatible and injectable hydrogels for bladder cancer drug delivery[J]. New Journal of Chemistry, 2023, 47(36): 16835-16842.
[19]	DEL GROSSO Chelsey A, LENG Chuan, ZHANG Kexin, et al. Surface hydration for antifouling and bio-adhesion[J]. Chemical Science, 2020, 11(38): 10367-10377.
[20]	LI Yonghui, SUN Xiuzhi Susan. Synthesis and characterization of acrylic polyols and polymers from soybean oils for pressure-sensitive adhesives[J]. RSC Advances, 2015, 5(55): 44009-44017.
[21]	全晴晴, 黄毅萍, 鲍俊杰, 等. 叔丁基环己基丙烯酸酯改性聚丙烯酸酯水分散体研究[J]. 热固性树脂, 2024, 39(2): 52-57.
	QUAN Qingqing, HUANG Yiping, BAO Junjie, et al. Study on tert-butylcyclohexyl acrylate modified polyacrylate aqueous dispersion[J]. Thermosetting Resin, 2024, 39(2): 52-57.
[22]	FAN Hailong, WANG Jiahui, ZHANG Qiuya, et al. Tannic acid-based multifunctional hydrogels with facile adjustable adhesion and cohesion contributed by polyphenol supramolecular chemistry[J]. ACS Omega, 2017, 2(10): 6668-6676.
[23]	张澳, 罗英武. 低模量、高弹性、高剥离强度丙烯酸酯压敏胶[J]. 化工学报, 2023, 74(7): 3079-3092.
	ZHANG Ao, LUO Yingwu. Low modulus, high elasticity and high peel adhesion acrylate pressure sensitive adhesives[J]. CIESC Journal, 2023, 74(7): 3079-3092.
[24]	LIU Xin, ZHANG Qin, GAO Zijian, et al. Bioinspired adhesive hydrogel driven by adenine and thymine[J]. ACS Applied Materials & Interfaces, 2017, 9(20): 17645-17652.
[25]	高文枢, 李程, 李建武, 等. 不同交联层厚度的聚丙烯酸酯乳液的制备及压敏性能[J]. 高分子材料科学与工程, 2019, 35(12): 16-21.
	GAO Wenshu, LI Cheng, LI Jianwu, et al. Preparation and properties of polyacrylic pressure-sensitive adhesives with different crosslinking layer thicknesses[J]. Polymer Materials Science & Engineering, 2019, 35(12): 16-21.
[26]	ZHENG Xiangrui, NIE Wenjian, GUO Yafang, et al. Influence of chain stiffness on the segmental dynamics and mechanical properties of cross-linked polymers[J]. Macromolecules, 2023, 56(18): 7636-7650.
[27]	ZHENG Xiangrui, GUO Yafang, DOUGLAS Jack F, et al. Understanding the role of cross-link density in the segmental dynamics and elastic properties of cross-linked thermosets[J]. Journal of Chemical Physics, 2022, 157(6): 064901.
[28]	YILDIZ Zehra, GUNGOR Atilla, ONEN Aysen, et al. Synthesis and characterization of dual-curable epoxyacrylates for polyester cord/rubber applications[J]. Journal of Industrial Textiles, 2016, 46(2): 596-610.
[29]	ZHU Zhewen, ZHANG Chaoying, GONG Shuling. Preparation and properties of polyester modified waterborne high hydroxyl content and high solid content polyacrylate emulsion[J]. Polymers, 2019, 11(4): 636.
[30]	LI Pengjuan, NIAN Fuwei, ZHANG Min, et al. Siloxane-modified polyacrylate low-residual pressure-sensitive adhesive with high peeling strength[J]. Journal of Applied Polymer Science, 2016, 133(8): 42975.
[31]	GUO Mengxue, LI Gang, CAI Minkun, et al. A tough hydrogel adhesive for the repair of archeological pottery[J]. Nano Letters, 2023, 23(4): 1371-1378.
[32]	宗雅君, 房成, 林中祥. 环保型可聚合乳化剂在丙烯酸酯乳液压敏胶中的应用[J]. 精细化工, 2016, 33(11): 1308-1314.
	ZONG Yajun, FANG Cheng, LIN Zhongxiang. Application of environmentfriendly polymeric emulsifiers in acrylate emulsion pressure-sensitive adhesives[J]. Fine Chemicals, 2016, 33(11): 1308-1314.
[33]	LIU Hong, QIAO Yongluo, HAN Lu, et al. Study on peelable performance of polyacrylate pressure sensitive adhesive[J]. Paint & Coatings Industry, 2016, 46(11): 19-24.
[34]	黄云, 郑琛, 李浩. 乳液型丙烯酸压敏胶的研究及应用进展[J]. 化工技术与开发, 2024, 53(9): 59-64.
	HUANG Yun, ZHENG Chen, LI Hao. Research and application progress of emulsion-type acrylic pressure sensitive adhesive[J]. Technology & Development of Chemical Industry, 2024, 53(9): 59-64.

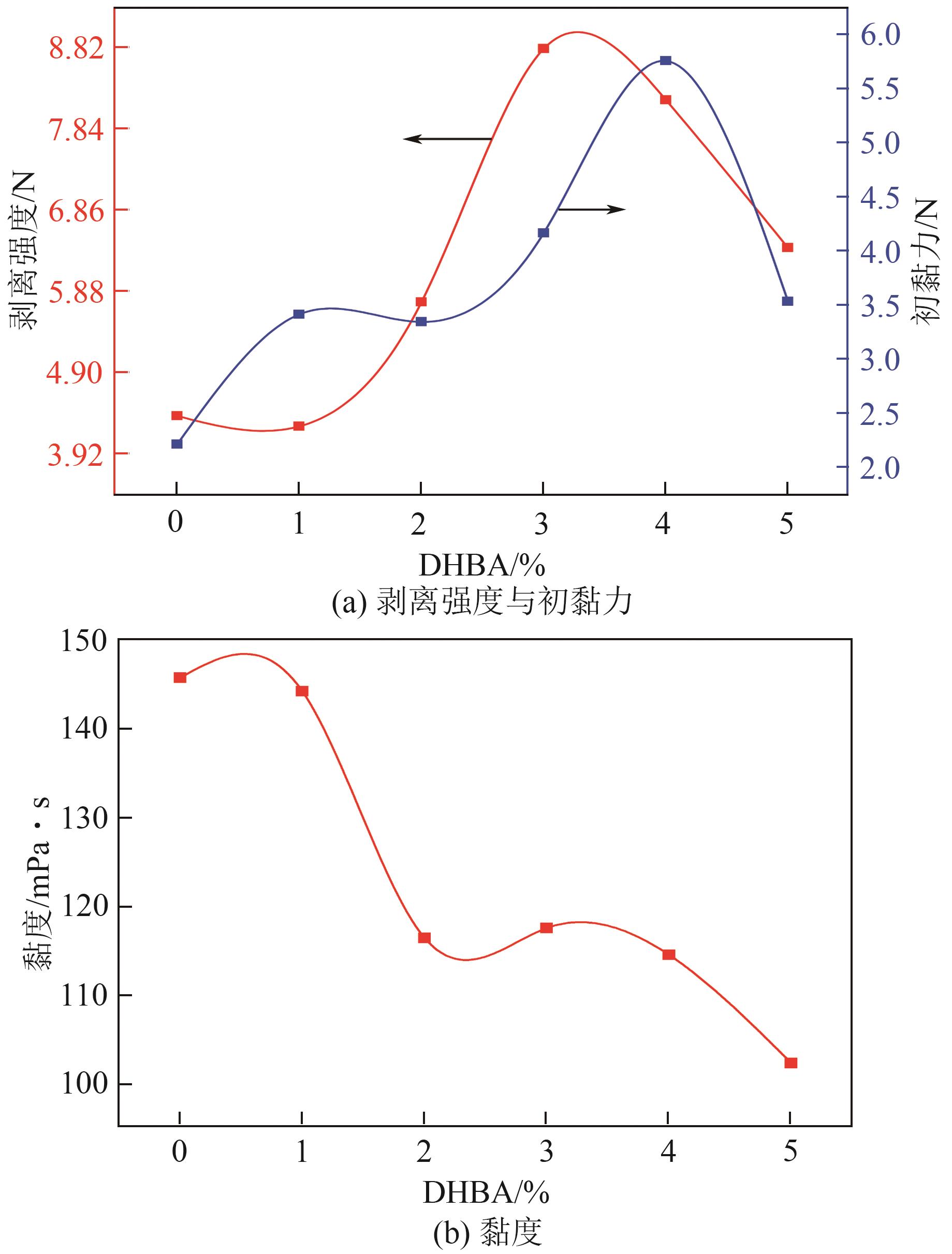

样品	黏度/mPa·s	初黏力/N	持黏时间/h	剥离强度/N	DHBA/%
PSAs	145.7	2.21	≈8h	4.42	0
dPSA₁	144.2	3.41	≈10h	4.29	1.0
dPSA₂	116.4	3.34	≈48h	5.81	2.0
dPSA₃	117.5	4.16	>72h	8.78	3.0
dPSA₄	114.5	5.75	>72h	8.27	4.0
dPSA₅	102.3	3.53	>72h	6.46	5.0

样品	黏度/mPa·s	初黏力/N	持黏时间/h	剥离强度/N	DHBA/%
PSAs	145.7	2.21	≈8h	4.42	0
dPSA₁	144.2	3.41	≈10h	4.29	1.0
dPSA₂	116.4	3.34	≈48h	5.81	2.0
dPSA₃	117.5	4.16	>72h	8.78	3.0
dPSA₄	114.5	5.75	>72h	8.27	4.0
dPSA₅	102.3	3.53	>72h	6.46	5.0

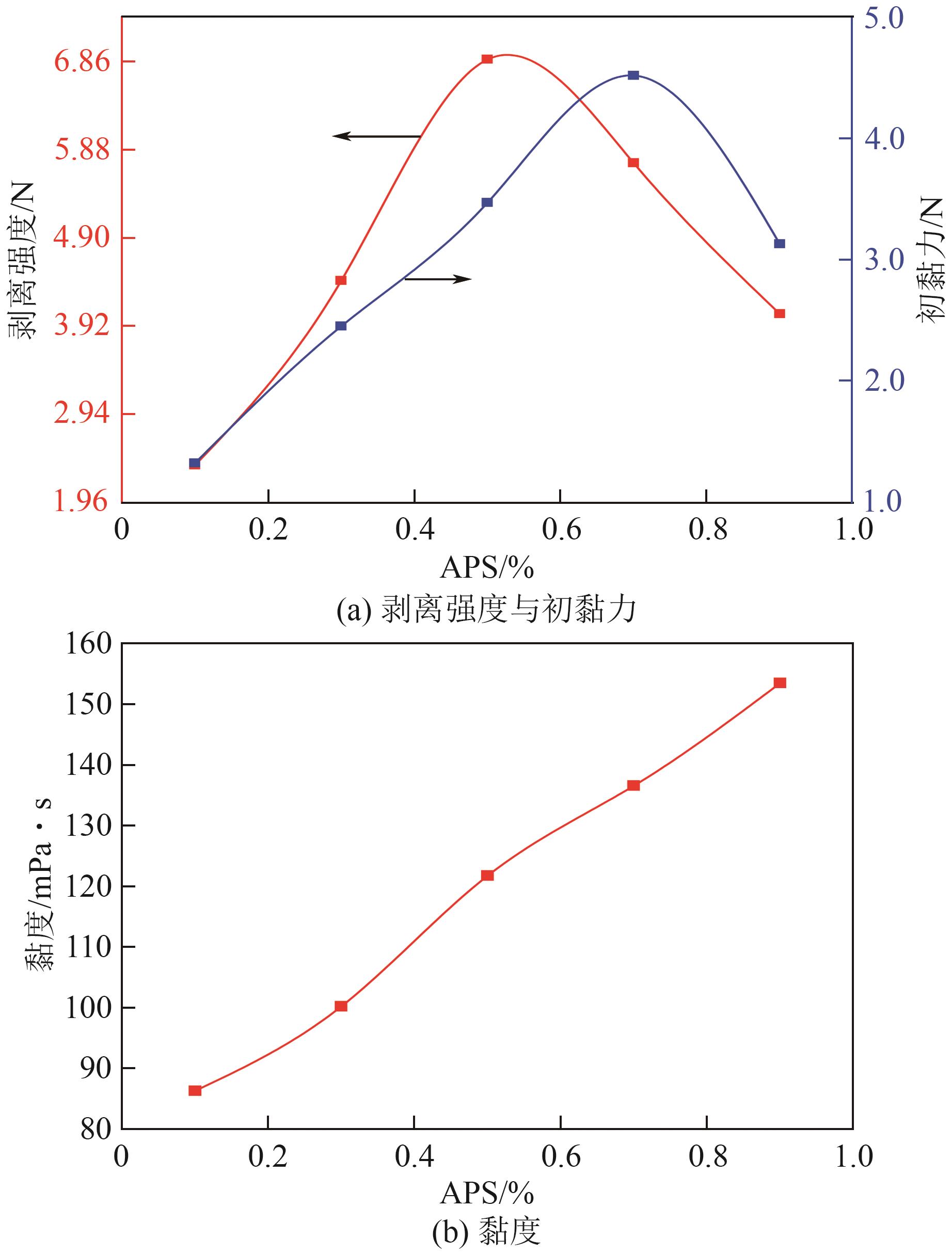

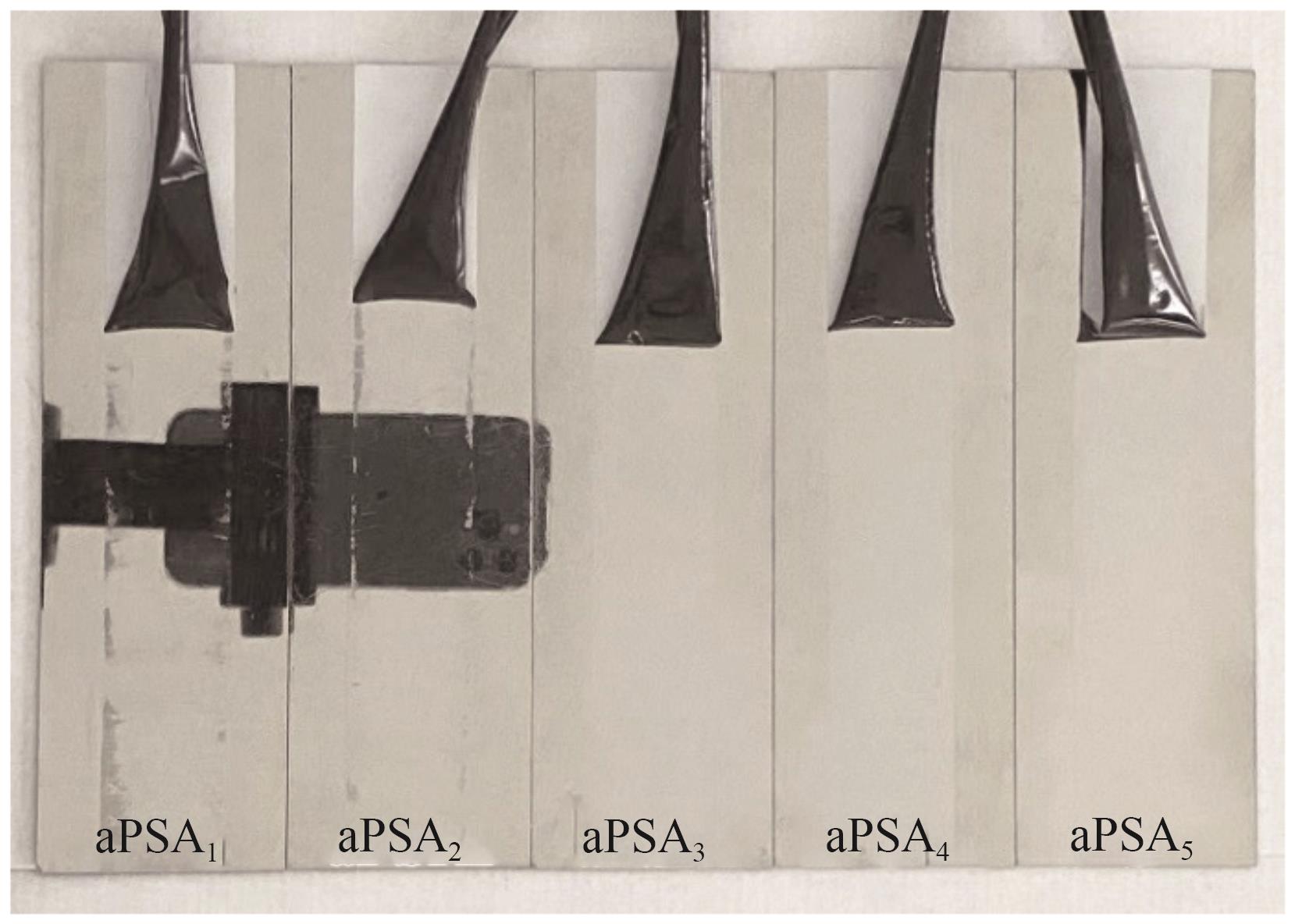

样品	黏度/mPa·s	初黏力/N	持黏时间/h	剥离强度/N	APS/%
aPSA₁	86.3	1.32	≈8h	2.39	0.1
aPSA₂	100.2	2.45	≈10h	4.47	0.3
aPSA₃	121.7	3.47	>72h	7.25	0.5
aPSA₄	136.5	4.52	>72h	5.79	0.7
aPSA₅	153.4	3.13	≈10h	4.09	0.9

样品	黏度/mPa·s	初黏力/N	持黏时间/h	剥离强度/N	APS/%
aPSA₁	86.3	1.32	≈8h	2.39	0.1
aPSA₂	100.2	2.45	≈10h	4.47	0.3
aPSA₃	121.7	3.47	>72h	7.25	0.5
aPSA₄	136.5	4.52	>72h	5.79	0.7
aPSA₅	153.4	3.13	≈10h	4.09	0.9

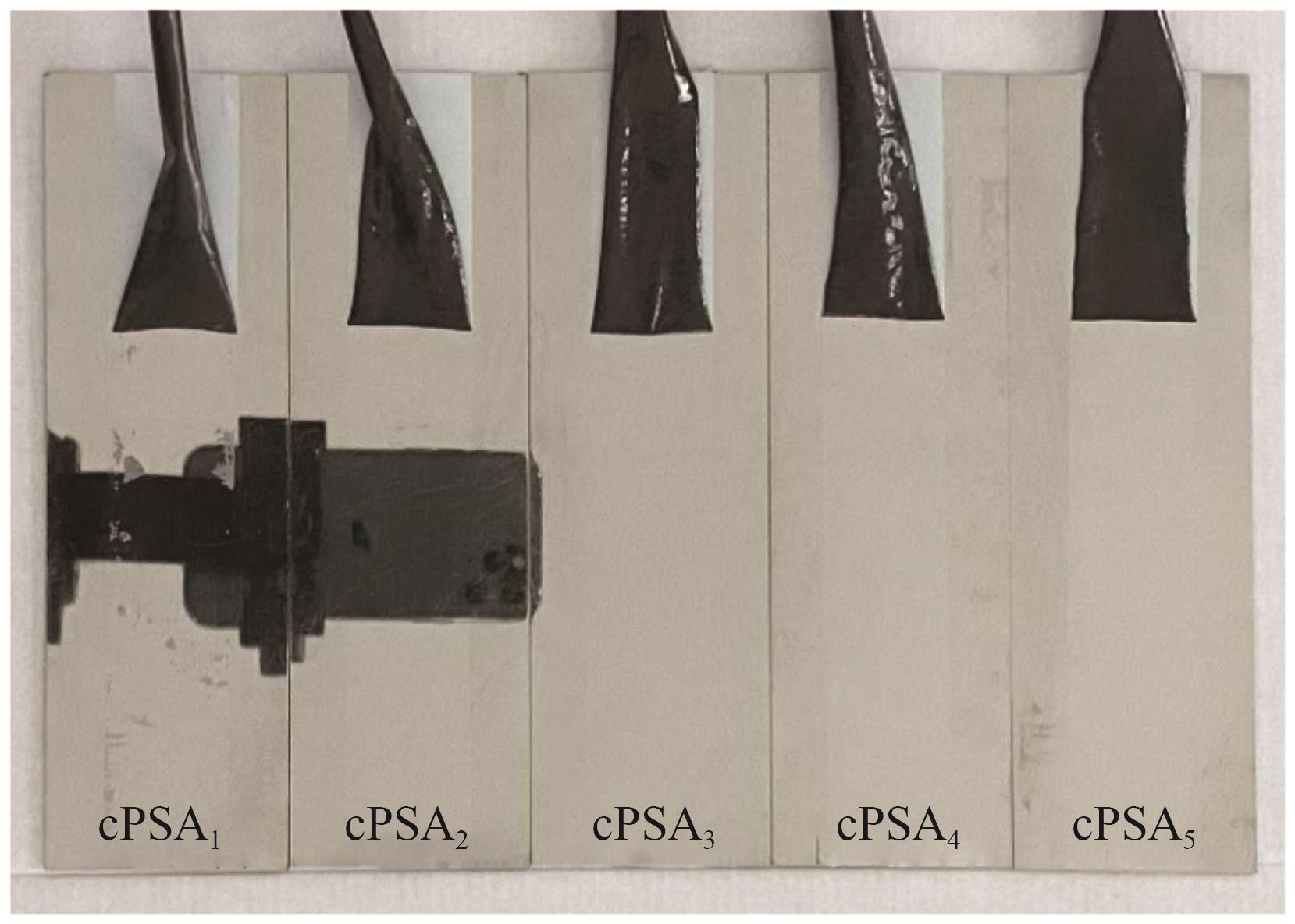

样品	黏度/mPa·s	初黏力/N	持黏时间/h	剥离强度/N	CO436/%
cPSA₁	98.6	2.92	≈4h	3.60	1.0
cPSA₂	108.3	3.14	≈8h	5.31	1.2
cPSA₃	119.7	4.32	>72h	7.44	1.4
cPSA₄	145.3	5.41	>72h	6.46	1.6
cPSA₅	229.7	3.53	≈10h	5.22	1.8
