基于β-环糊精的TFC正渗透膜原位构筑及抗污染性能

doi:10.16085/j.issn.1000-6613.2024-2066

摘要/Abstract

摘要：

采用在水相中引入添加剂调控界面聚合过程的方法对聚酰胺薄膜复合材料（TFC）的活性层进行原位改性，以突破渗透性与选择性之间的“trade-off”效应以及提升膜的抗污染性能。首先，通过相转化制备聚砜（PSF）支撑层，在此基础上通过在界面聚合中掺入水相添加剂β-环糊精（β-CD）原位构筑TFC-β-CD改性正渗透膜。β-CD外部存在亲水性羟基基团，可与酰氯基团进行界面聚合产生聚酯结构而被牢固保留在膜中，并且其携带的纳米空腔结构是一种高效传质通道，使其在提升膜水通量的同时保持高截留率。通过扫描电子显微镜（SEM）、傅里叶变换红外光谱（FTIR）和原子力显微镜（AFM）分析了改性前后的膜表面结构、组成和粗糙度，利用错流式实验装置考察了膜的传质性能和结构参数，并探究了膜的抗有机污染性能和膜污染可逆性。结果表明：TFC-β-CD（1.5）改性膜的水接触角由（62.6±1.52）°下降至（44.9±0.52）°，亲水性显著提升，且粗糙度降低。在有机污染实验中，与TFC膜相比，当3种特征污染物的原料液不含Ca²⁺时，TFC-β-CD改性膜的通量恢复率在90%以上，当原料液含Ca²⁺时，TFC-β-CD改性膜的不可逆污染程度较轻，具有较好的抗污染性能。

关键词: 膜, 薄膜复合材料正渗透膜, β-环糊精, 原位改性, 抗污染

Abstract:

The active layer of thin-film composite (TFC) membranes was modified in situ by introducing an additive in the aqueous phase to regulate the interfacial polymerization process in order to break through the "trade-off" effect and improve the anti-pollution performance of the membrane. Initially, the polysulfone (PSF) support layer was prepared via phase inversion. Subsequently, β-cyclodextrin (β-CD) was incorporated into the aqueous phase during interfacial polymerization to construct TFC-β-CD modified forward osmosis membranes. There were hydrophilic hydroxyl groups outside β-CD, which can be interfacial polymerized with acyl chloride groups to produce polyester structure and be firmly retained in the membrane. Moreover, the nanocavity structure carried by β-CD was an efficient mass transfer channel so that it can improve the membrane water flux while maintaining a high retention rate. The surface structure, composition and roughness of the membranes before and after modification were analyzed using scanning electron microscopy (SEM), Fourier-transform infrared spectroscopy (FTIR) and atomic force microscopy (AFM). The mass transfer properties and structural parameters of the membranes were examined using a cross-flow experimental setup, and the antifouling performance for organics and fouling reversibility were evaluated. The results indicated that the water contact angle of the TFC-β-CD (1.5) modified membrane decreased from (62.6±1.52)° to (44.9±0.52)°, demonstrating a significant enhancement in hydrophilicity and a reduction in roughness. During the antifouling experiments, compared to the TFC membrane, the flux recovery of the TFC-β-CD modified membrane was above 90% when the feed solution was three model organics respectively with Ca²⁺. When the feed solution contained Ca²⁺, the irreversible fouling of the TFC-β-CD modified membrane was less severe, exhibiting better antifouling properties.

Key words: membranes, thin-film composite forward osmosis membrane, β-cyclodextrin, in-situ modification, antifouling

中图分类号:

TQ028

孙燕, 陈马超, 田娜, 谢晓阳, 李晓玲, 何皎洁, 赵晓红. 基于β-环糊精的TFC正渗透膜原位构筑及抗污染性能[J]. 化工进展, 2025, 44(6): 3671-3682.

SUN Yan, CHEN Machao, TIAN Na, XIE Xiaoyang, LI Xiaoling, HE Jiaojie, ZHAO Xiaohong. Research on in-situ construction of TFC forward osmosis membrane by β-cyclodextrin and its antifouling performance[J]. Chemical Industry and Engineering Progress, 2025, 44(6): 3671-3682.

图/表 15

表1 支撑层的基本特性[29]

平均孔径/nm	截留分子量/kDa	孔隙率/%	透水性/L·m^-2·Pa^-1·h^-1	接触角/(°)	膜厚度/μm
13.46±0.49	239.57±1.64	72.9±1.0	(275±40)×10^-5	80.5±3.5	50±4

表2 不同浓度β-CD界面聚合反应单体溶液的组成

序号	膜名称	水相				有机相
序号	膜名称	MPD质量分数/%	β-CD质量分数/%	TEA质量分数/%	CSA质量分数/%	TMC质量分数/%
1	TFC	3.4	—	—	—	0.15
2	TFC-β-CD（0.5）	3.4	0.5	1	0.43	0.15
3	TFC-β-CD（1.0）	3.4	1.0	1	0.43	0.15
4	TFC-β-CD（1.5）	3.4	1.5	1	0.43	0.15
5	TFC-β-CD（2.0）	3.4	2.0	1	0.43	0.15

图1 β-CD原位改性TFC FO膜的制备示意图

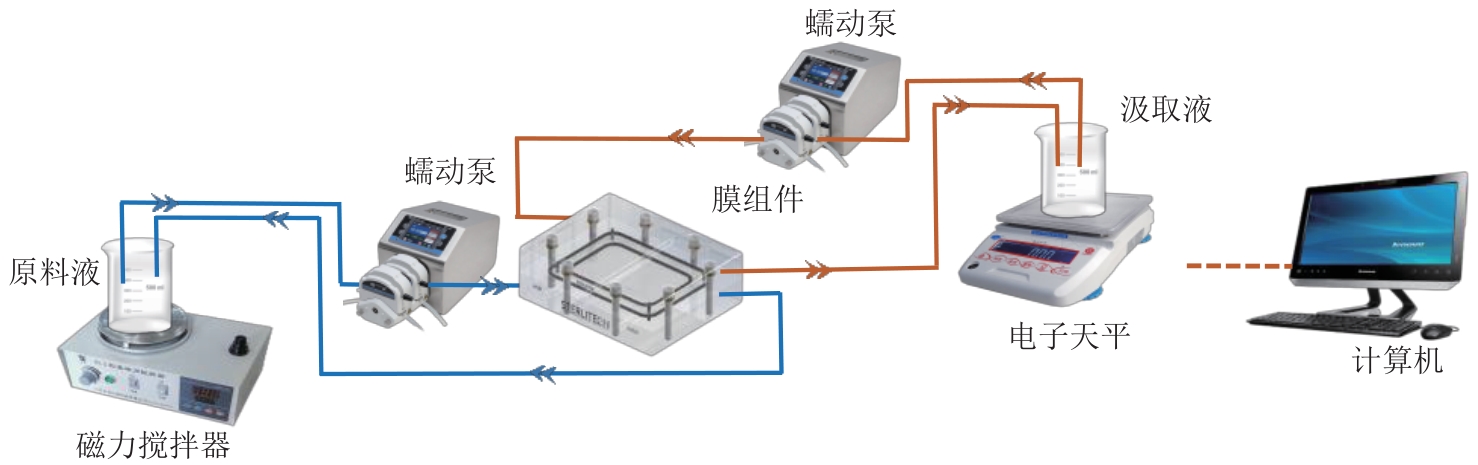

图2 错流式正渗透装置

表3 传质系数和结构参数测定的运行条件

阶段	运行模式	运行时长	错流速率	原料液（1L）	汲取液（2L）
1	活性层朝向原料液（AL-FS）	1h	8cm/s	去离子水	0.5mol/LNaCl溶液
2					1mol/LNaCl溶液
3					1.5mol/LNaCl溶液
4					2mol/LNaCl溶液

图3 PSF支撑层、TFC膜和不同β-CD浓度下TFC-β-CD膜表面的SEM图像及PSF支撑层、TFC膜和TFC-β-CD（1.5）的SEM断面图像

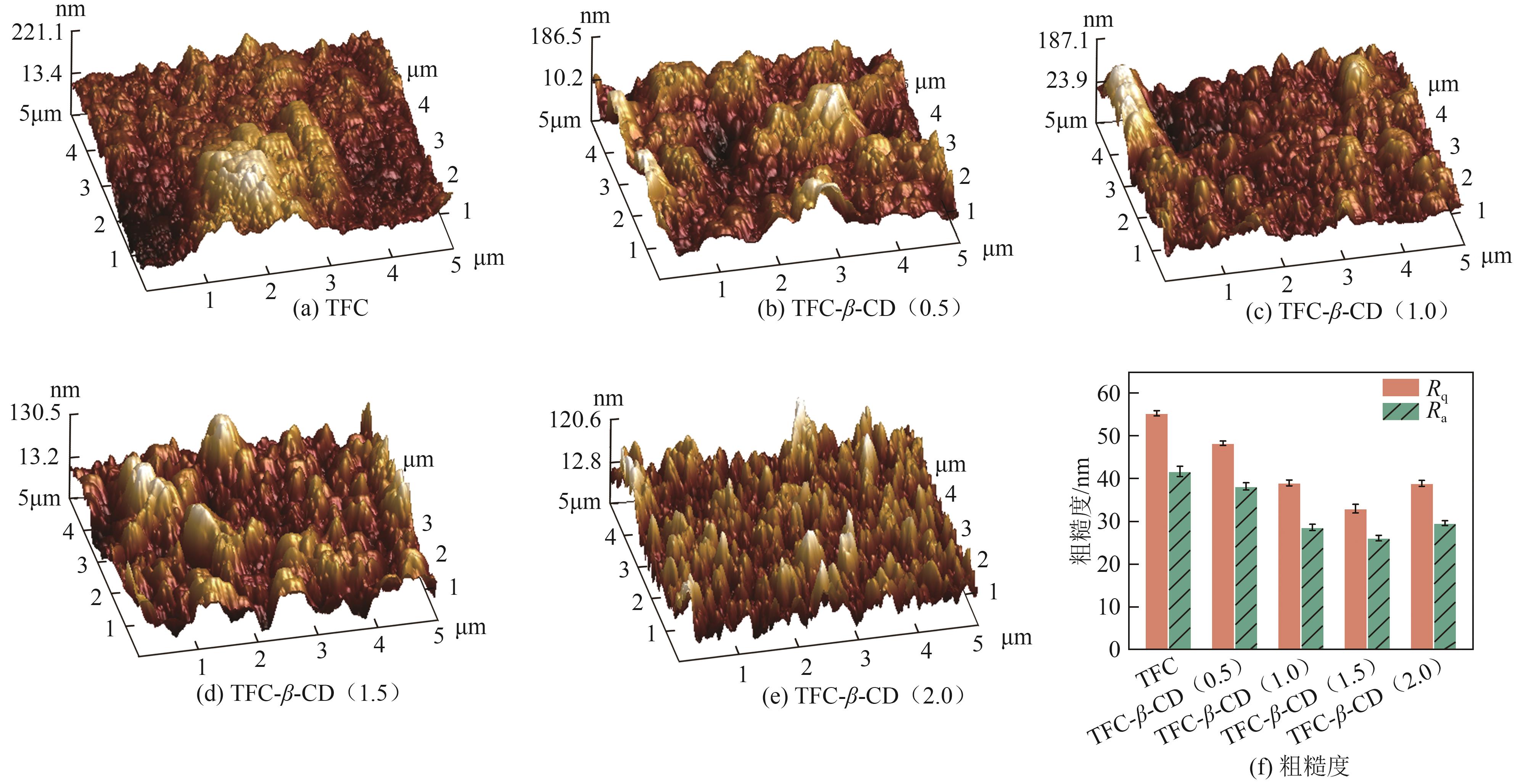

图4 TFC膜和不同β-CD浓度下TFC-β-CD膜表面的AFM图像及粗糙度数值

图5 TFC膜和TFC-β-CD（1.5）膜表面的红外光谱图

图6 TFC膜和不同β-CD浓度下TFC-β-CD膜表面的水接触角

图7 TFC膜和不同β-CD浓度下TFC-β-CD膜的水通量、反向盐通量及盐水比

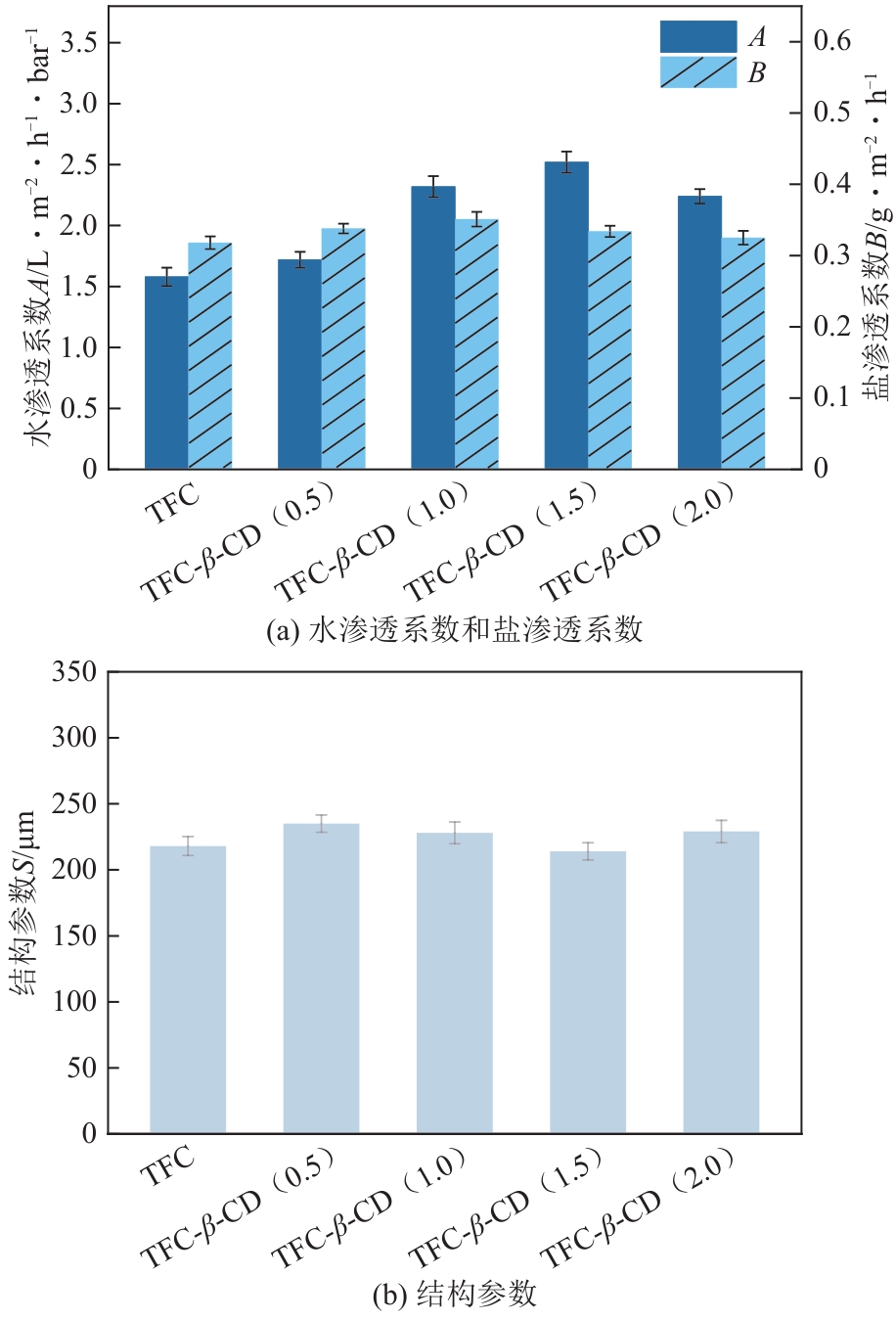

图8 TFC膜和不同β-CD浓度下TFC-β-CD膜的传质系数和结构参数

图9 未添加Ca2+情况下不同有机物存在时TFC膜和TFC-β-CD膜的水通量衰减曲线

图10 添加Ca2+情况下不同有机物存在时TFC膜和TFC-β-CD膜的水通量衰减曲线

图11 未添加Ca2+情况下TFC膜和TFC-β-CD膜清洗前后的水通量恢复率

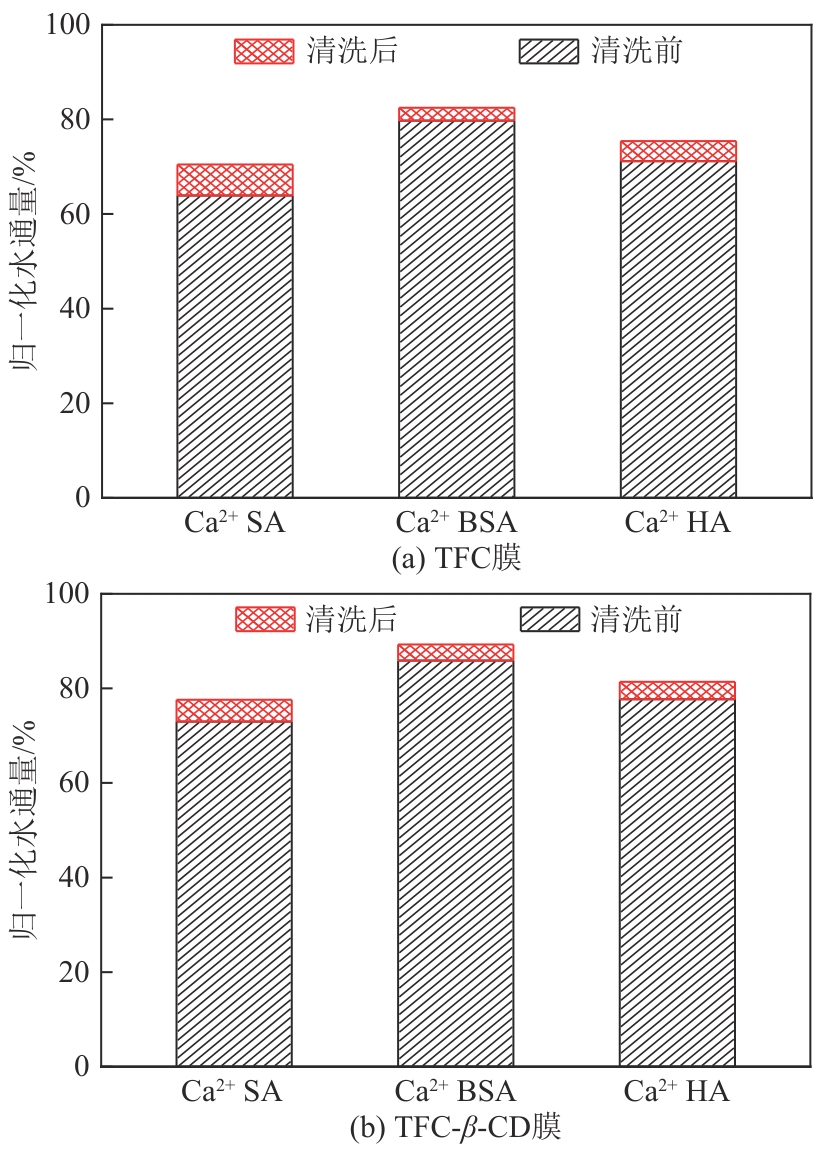

图12 添加Ca2+情况下TFC膜和TFC-β-CD膜清洗前后的水通量恢复率
