高温活化强化碳纳米管催化过氧乙酸降解磺胺甲唑的特性

doi:10.16085/j.issn.1000-6613.2024-1495

摘要/Abstract

摘要：

基于过氧乙酸（PAA）的高级氧化工艺（AOP）因其高氧化性、有毒副产物少等特点广泛应用于水处理过程。本研究采用热改性碳纳米管（CNT）活化PAA降解磺胺甲唑（SMX），5min内SMX去除率达97%。pH对该体系的处理效果有影响，中性条件下处理效果最佳。通过比较在不同加热温度下制得的CNT对目标污染物的降解效果，确定了最佳改性条件为800℃。采取电子顺磁共振（EPR）、淬灭实验、电化学实验等手段探究了该体系中污染物的降解机理。在热改性CNT/PAA体系中对SMX降解起主要作用的是单线态氧（¹O₂）而非羟基自由基（·OH），有机自由基起次要作用，电子转移过程（ETP）也为SMX的降解做出贡献。循环实验表明，通过对使用后的CNT再次热改性可以恢复材料表面的缺陷程度，被占据的活性位点再次空出从而参与反应，因此热改性CNT/PAA体系循环使用5次依旧对SMX保持较高的处理效率。本研究聚焦于热改性CNT活化PAA的作用机理及活化位点，为将基于碳材料活化过氧乙酸的高级氧化工艺应用于实际水环境修复提供了更多理论依据。

关键词: 氧化, 过氧乙酸, 碳纳米管, 降解, 催化剂活化, 非自由基途径, 电子转移过程

Abstract:

Peracetic acid (PAA) is widely used in water treatment due to the well oxidation property and limited formation of harmful by-products. In this study, PAA was successfully activated by pyrolytic CNT, which could degrade 97% sulfamethoxazole (SMX) in 5min. The degradation efficiency of SMX would be influenced by pH with the optimal efficiency under neutral condition. The effect of pyrolysis temperature on the degradation of SMX was investigated, which was determined in 800℃. Electron paramagnetic resonance (EPR) and quenching experiments combined with electrochemical experiments were applied to understand the degradation mechanism. ¹O₂ rather than ·OH played the major role in SMX degradation with organic radicals playing minor roles. The electron transfer process (ETP) was also involved in the degradation process. The satisfactory degradation efficiency of SMX was obtained by pyrolytic CNT/PAA after five cycles reusability, while re-pyrolyzed of used CNT was needed to recover the defects on CNT surface. The occupied reactive sites would be refreshed during re-pyrolysis process and then participate in the reaction. In conclusion, this study focused on the performance and mechanism of SMX degradation by pyrolytic CNT activated PAA, which could provide some theoretic knowledge for pyrolytic CNT/PAA applied in water purification.

Key words: oxidation, peracetic acid, carbon nanotube, degradation, catalyst activation, non-radical pathway, electron transfer process

中图分类号:

杨焱, 阮仁伟, 赵世荣, 钱雅洁. 高温活化强化碳纳米管催化过氧乙酸降解磺胺甲唑的特性[J]. 化工进展, 2025, 44(10): 6083-6092.

YANG Yan, RUAN Renwei, ZHAO Shirong, QIAN Yajie. Performance and properties of sulfamethoxazole degradation by pyrolyzed carbon nanotube activated peracetic acid[J]. Chemical Industry and Engineering Progress, 2025, 44(10): 6083-6092.

图/表 14

图1 CNT热改性前后物理结构变化

图2 CNT、热改性CNT、使用后热改性CNT的拉曼光谱

图3 不同体系中SMX降解情况（[SMX]=50μmol/L，[PAA]=0.5mmol/L，[热改性CNT]=[CNT]=0.4g/L，pH=7）

图4 CNTs活化H2O2降解SMX（[PAA]=[H2O2]=0.5mmol/L，[CNT]=0.4g/L，[SMX]=50μmol/L，pH=7）

图5 CNT活化不同氧化剂降解SMX

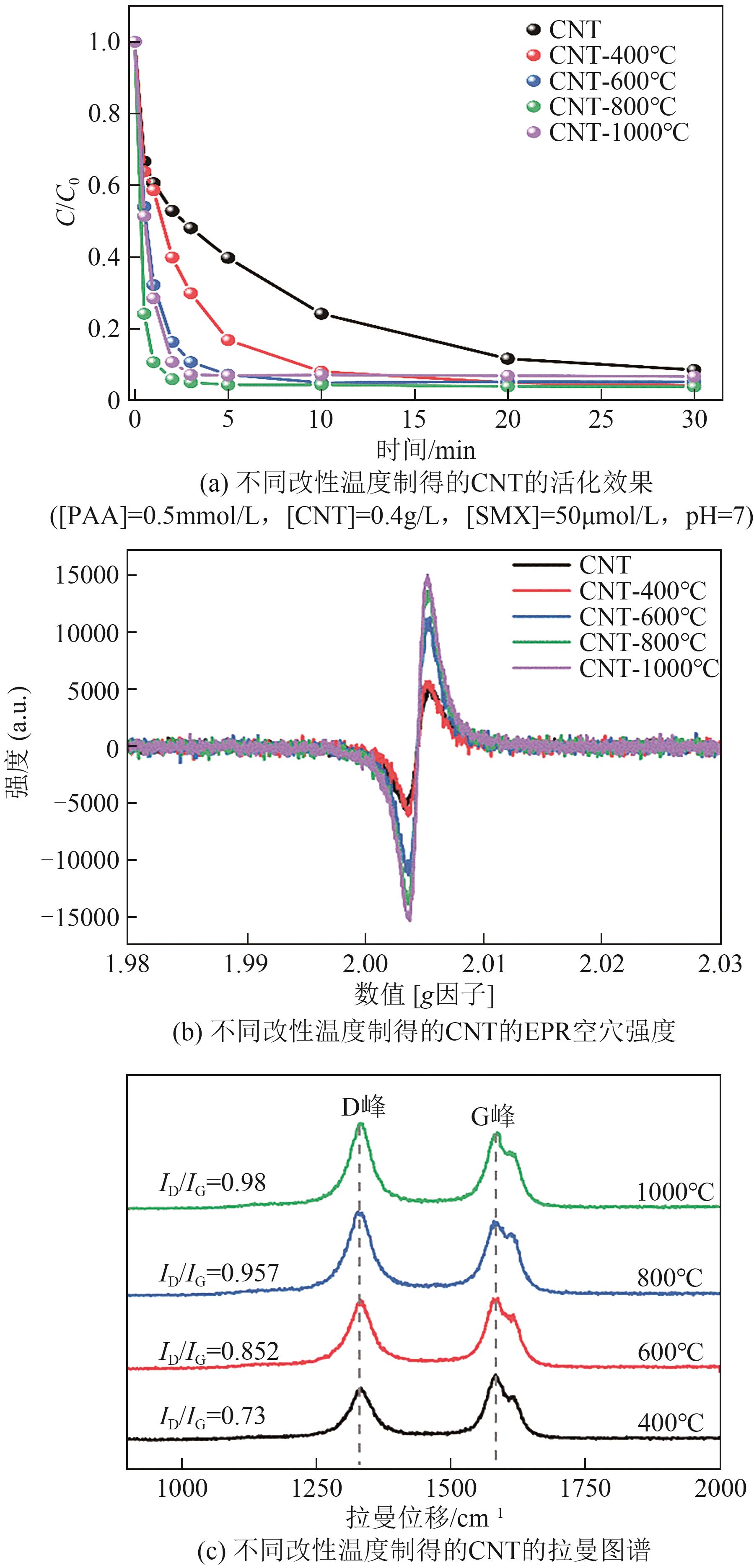

图6 不同改性温度制得的CNT的性能比较

图7 浓度梯度实验

图8 不同pH对热改性CNT/PAA体系降解SMX的影响（[PAA]=0.5mmol/L，[热改性CNT]=0.4g/L，[SMX]=50μmol/L）

图9 EPR检测不同体系中10min时活性物质的信号强度

图10 不同淬灭剂对热改性CNT/PAA体系中SMX降解效果的影响

图11 OCP开路电位

图12 CNT及热改性CNT使用前后的EPR空穴强度

图13 CNT及热改性CNT渗滤液活化PAA降解SMX（[PAA]=0.5mmol/L，[SMX]=50μmol/L，pH=7）

图14 热改性CNT的循环实验及循环材料的拉曼光谱

参考文献 45

[1]	CHEN Yuru, DUAN Yanping, ZHANG Zhibo, et al. Comprehensive evaluation of antibiotics pollution the Yangtze River basin, China: Emission, multimedia fate and risk assessment[J]. Journal of Hazardous Materials, 2024, 465: 133247.
[2]	李德军, 吴八一, 李梅秀. 水体中典型抗生素磺胺甲𫫇唑对生物脱氮的影响及机制解析[J]. 四川环境, 2024, 43(2): 173-179.
	LI Dejun, WU Bayi, LI Meixiu. Impact of sulfamethoxazole - a typical antibiotic in water-on biological denitrification and its mechanism[J]. Sichuan Environment, 2024, 43(2): 173-179.
[3]	李鑫, 王海芳. 典型磺胺类抗生素在土壤中迁移和降解机制研究[J]. 当代化工, 2024, 53(2): 422-429.
	LI Xin, WANG Haifang. Study on migration and degradation of typical sulfonamides in soil[J]. Contemporary Chemical Industry, 2024, 53(2): 422-429.
[4]	张迪雅. 不同方法去除水中磺胺类抗生素的进展研究[J]. 辽宁化工, 2023, 52(12): 1857-1859.
	ZHANG Diya. Application of anammox in wastewater treatment[J]. Liaoning Chemical Industry, 2023, 52(12): 1857-1859.
[5]	DU Penghui, WANG Junjian, SUN Guodong, et al. Hydrogen atom abstraction mechanism for organic compound oxidation by acetylperoxyl radical in Co(Ⅱ)/peracetic acid activation system[J]. Water Research, 2022, 212: 118113.
[6]	WANG Zongping, CHEN Zhenbin, LI Qingbao, et al. Non-radical activation of peracetic acid by powdered activated carbon for the degradation of sulfamethoxazole[J]. Environmental Science & Technology, 2023, 57(28): 10478-10488.
[7]	KIM Juyoung, ADHIKARI Koushik. Current trends in kombucha: Marketing perspectives and the need for improved sensory research[J]. Beverages, 2020, 6(1): 15.
[8]	ZHOU Xuerong, ZHU Yuan, NIU Qiuya, et al. New notion of biochar: A review on the mechanism of biochar applications in advannced oxidation processes[J]. Chemical Engineering Journal, 2021, 416: 129027.
[9]	TENG Tao, WU Xuan, LU Yilin, et al. Flash reforming pyrogenic carbon to graphene for boosting advanced oxidation reaction[J]. Advanced Materials Technologies, 2023, 8(16): 2300236.
[10]	YANG Weilu, ZHOU Minghua, LIANG Liang. Highly efficient in situ metal-free electrochemical advanced oxidation process using graphite felt modified with N-doped graphene[J]. Chemical Engineering Journal, 2018, 338: 700-708.
[11]	DUAN Xiaoguang, SU Chao, ZHOU Li, et al. Surface controlled generation of reactive radicals from persulfate by carbocatalysis on nanodiamonds[J]. Applied Catalysis B: Environmental, 2016, 194: 7-15.
[12]	SHAO Penghui, JING Yunpeng, DUAN Xiaoguang, et al. Revisiting the graphitized nanodiamond-mediated activation of peroxymonosulfate: Singlet oxygenation versus electron transfer[J]. Environmental Science & Technology, 2021, 55(23): 16078-16087.
[13]	LI Xingfa, LIANG Dandan, WANG Chaoxu, et al. Insights into the peroxomonosulfate activation on boron-doped carbon nanotubes: Performance and mechanisms[J]. Chemosphere, 2021, 275: 130058.
[14]	MIAO Fei, YUE Xiting, CHENG Cheng, et al. Insights into the mechanism of carbocatalysis for peracetic acid activation: Kinetic discernment and active site identification[J]. Water Research, 2022, 227: 119346.
[15]	闫江毅, 丁一汇, 李风亭. 碳纳米管功能化改性的研究进展[J]. 低碳化学与化工, 2024, 49(10): 1-10.
	YAN Jiangyi, DING Yihui, LI Fengting. Research progress on functional modification of carbon nanotubes[J]. Low-Carbon Chemistry and Chemical Engineering, 2024, 49(10): 1-10.
[16]	REN Wei, XIONG Liangliang, NIE Gang, et al. Insights into the electron-transfer regime of peroxydisulfate activation on carbon nanotubes: The role of oxygen functional groups[J]. Environmental Science & Technology, 2020, 54(2): 1267-1275.
[17]	LIU Tongcai, XIAO Shaoze, LI Nan, et al. Water decontamination via nonradical process by nanoconfined Fenton-like catalysts[J]. Nature Communications, 2023, 14(1): 2881.
[18]	LIU Yue, WANG Yangyang, LI Xiao, et al. Multi-path accelerating sulfadiazine degradation via peracetic acid oxidation induced by nanoconfined co species: Highlighting electron rearrangement effect[J]. Chemical Engineering Journal, 2024, 494: 153167.
[19]	YAO Mingya, ZHANG Shuofeng, XIE Meng, et al. Efficient activation of peracetic acid by cobalt modified nitrogen-doped carbon nanotubes for drugs degradation: Performance and mechanism insight[J]. Chemosphere, 2024, 358: 142277.
[20]	YU Zongshun, WU Jianqing, ZHANG Jinfan, et al. Carbon nitride nanotubes anchored with Cu(Ⅰ) triggers peracetic acid activation with visible light for removal of antibiotic contaminants: Probing mechanisms of non-radical pathways and identifying active sites[J]. Journal of Hazardous Materials, 2023, 460: 132401.
[21]	WANG Junhui, YU Jiaxing, FU Qi, et al. Unprecedented nonphotomediated hole (h⁺ ) oxidation system constructed from defective carbon nanotubes and superoxides[J]. ACS Central Science, 2021, 7(2): 355-364.
[22]	LIU Shiyu, LAI Cui, LI Bisheng, et al. Heteroatom doping in metal-free carbonaceous materials for the enhancement of persulfate activation[J]. Chemical Engineering Journal, 2022, 427: 131655.
[23]	CHENG Xin, GUO Hongguang, ZHANG Yongli, et al. Insights into the mechanism of nonradical reactions of persulfate activated by carbon nanotubes: Activation performance and structure-function relationship[J]. Water Research, 2019, 157: 406-414.
[24]	AMALANATHAN M, ARAVIND M, AHMED Nafis, et al. The influence of activated carbon annealing temperature on sunlight-driven photocatalytic dye degradation and biological activity[J]. Inorganic Chemistry Communications, 2022, 146: 110149.
[25]	MAO Chih-Chung, WENG Hung-Shan. Effect of heat treatment on photocatalytic activity of titania incorporated with carbon black for degradation of methyl orange[J]. Environmental Progress & Sustainable Energy, 2012, 31(2): 306-317.
[26]	YANG Weichun, JIANG Zhi, HU Xiaoxian, et al. Enhanced activation of persulfate by nitric acid/annealing modified multi-walled carbon nanotubes via non-radical process[J]. Chemosphere, 2019, 220: 514-522.
[27]	ZHU Shishu, HUANG Xiaochen, MA Fang, et al. Catalytic removal of aqueous contaminants on N-doped graphitic biochars: Inherent roles of adsorption and nonradical mechanisms[J]. Environmental Science & Technology, 2018, 52(15): 8649-8658.
[28]	HOU Jifei, XU Lixia, HAN Yuxiang, et al. Deactivation and regeneration of carbon nanotubes and nitrogen-doped carbon nanotubes in catalytic peroxymonosulfate activation for phenol degradation: Variation of surface functionalities[J]. RSC Advances, 2019, 9(2): 974-983.
[29]	HU Peidong, SU Hanrui, CHEN Zhenyu, et al. Selective degradation of organic pollutants using an efficient metal-free catalyst derived from carbonized polypyrrole via peroxymonosulfate activation[J]. Environmental Science & Technology, 2017, 51(19): 11288-11296.
[30]	WANG Zongping, WANG Jingwen, XIONG Bin, et al. Application of cobalt/peracetic acid to degrade sulfamethoxazole at neutral condition: Efficiency and mechanisms[J]. Environmental Science & Technology, 2020, 54(1): 464-475.
[31]	KIM Juhee, ZHANG Tianqi, LIU Wen, et al. Advanced oxidation process with peracetic acid and Fe(Ⅱ) for contaminant degradation[J]. Environmental Science & Technology, 2019, 53(22): 13312-13322.
[32]	ZHANG Wei, LI Mu, LIN Lin, et al. Peroxyacetic acid activation by cobalt-doped peanut shell biochar for efficient CBZ degradation: Role of organic radicals, singlet oxygen, and high-valent cobalt species[J]. Separation and Purification Technology, 2024, 330: 125592.
[33]	SHEN Wuziyue, YANG Libin, ZHOU Zhe, et al. Activation of peracetic acid by thermally modified carbon nanotubes: Organic radicals contribution and active sites identification[J]. Chemical Engineering Journal, 2023, 474: 145521.
[34]	AO Xiuwei, ELORANTA Jussi, HUANG Ching-Hua, et al. Peracetic acid-based advanced oxidation processes for decontamination and disinfection of water: A review[J]. Water Research, 2021, 188: 116479.
[35]	YAO Keyu, FANG Lei, LIAO Pubin, et al. Ultrasound-activated peracetic acid to degrade tetracycline hydrochloride: Efficiency and mechanism[J]. Separation and Purification Technology, 2023, 306: 122635.
[36]	LEE Hongshin, LEE Changha, KIM Jae-Hong. Response to comment on “activation of persulfate by graphitized nanodiamonds for removal of organic compounds”[J]. Environmental Science & Technology, 2017, 51(9): 5353-5354.
[37]	CAI Meiquan, SUN Peizhe, ZHANG Liqiu, et al. UV/peracetic acid for degradation of pharmaceuticals and reactive species evaluation[J]. Environmental Science & Technology, 2017, 51(24): 14217-14224.
[38]	WANG Xuxu, WANG Ying, ZHAO Chun, et al. Ciprofloxacin removal by ultrasound-enhanced carbon nanotubes/permanganate process: In situ generation of free reactive manganese species via electron transfer[J]. Water Research, 2021, 202: 117393.
[39]	LIU Shiyu, LAI Cui, ZHOU Xuerong, et al. Peroxydisulfate activation by sulfur-doped ordered mesoporous carbon: Insight into the intrinsic relationship between defects and ¹O₂ generation[J]. Water Research, 2022, 221: 118797.
[40]	WANG Jingwen, WAN Ying, DING Jiaqi, et al. Thermal activation of peracetic acid in aquatic solution: The mechanism and application to degrade sulfamethoxazole[J]. Environmental Science & Technology, 2020, 54(22): 14635-14645.
[41]	练澎, 张小凤. 碳纳米管制备方法的研究进展[J]. 当代化工, 2015, 44(4): 737-739.
	LIAN Peng, ZHANG Xiaofeng. Research progress in preparation methods of carbon nanotubes[J]. Contemporary Chemical Industry, 2015, 44(4): 737-739.
[42]	KIM Juhee, DU Penghui, LIU Wen, et al. Cobalt/peracetic acid: Advanced oxidation of aromatic organic compounds by acetylperoxyl radicals[J]. Environmental Science & Technology, 2020, 54(8): 5268-5278.
[43]	MULLIGAN Christopher J, BAGALE Sharanappa M, NEWTON Oliver J, et al. Peracetic acid: An atom-economical reagent for Pd-catalyzed acetoxylation of C－H bonds[J]. ACS Sustainable Chemistry & Engineering, 2019, 7(1): 1611-1615.
[44]	ROTHBART Sabine, EMBER Erika E, VAN ELDIK Rudi. Mechanistic studies on the oxidative degradation of Orange Ⅱ by peracetic acid catalyzed by simple manganese(Ⅱ) salts. Tuning the lifetime of the catalyst[J]. New Journal of Chemistry, 2012, 36(3): 732-748.
[45]	ZHANG Longlong, CHEN Jiabin, ZHANG Yalei, et al. Highly efficient activation of peracetic acid by nano-CuO for carbamazepine degradation in wastewater: The significant role of H₂O₂ and evidence of acetylperoxy radical contribution[J]. Water Research, 2022, 216: 118322.
