Preparation of imidazole-containing porous organic polymers with micro-mesoporous structure for iodine and iodomethane adsorption

doi:10.16085/j.issn.1000-6613.2024-2007

Abstract

Abstract:

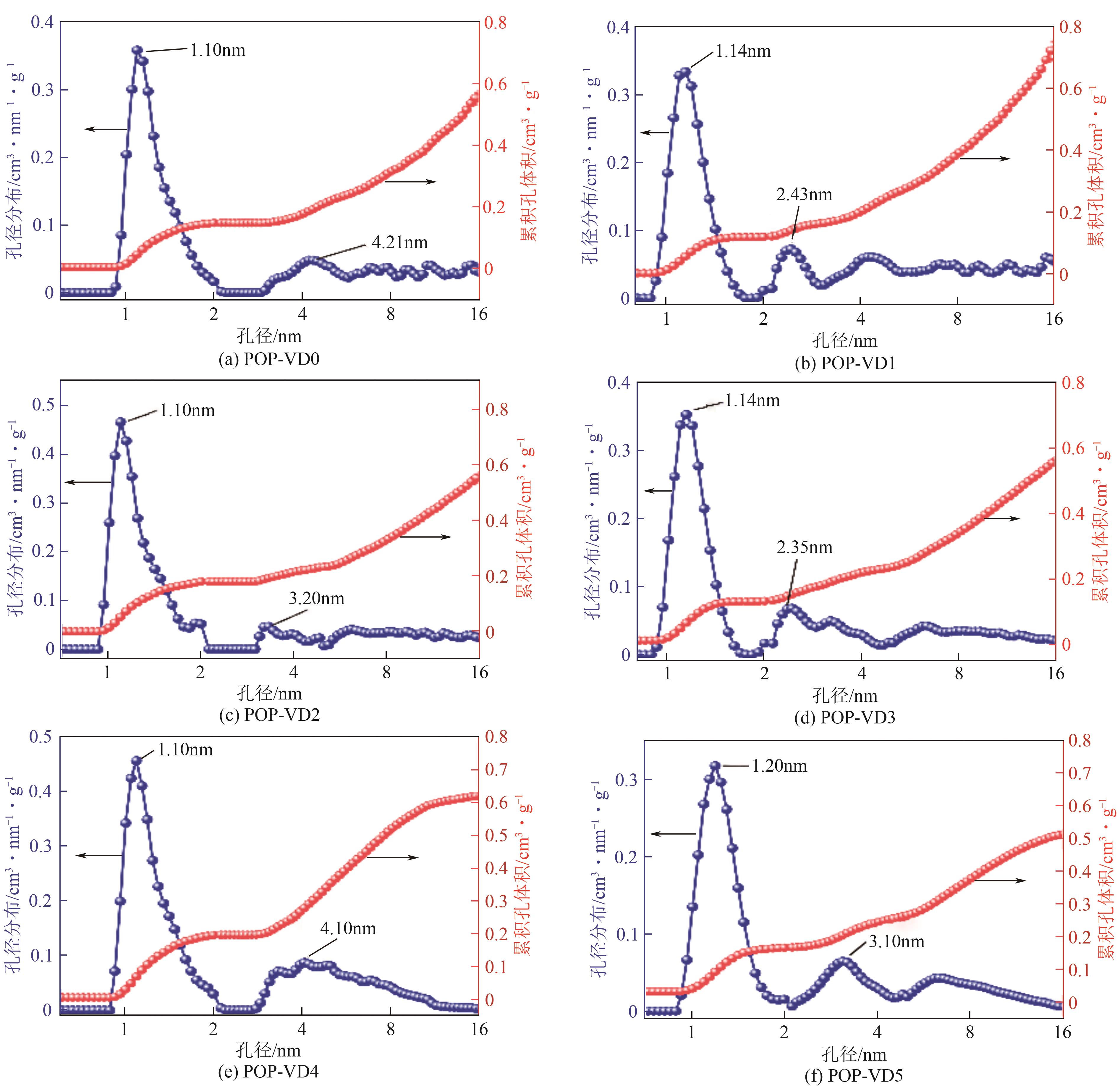

Radioactive iodine adsorption is a link that cannot be ignored in the post-operation treatment of nuclear power plants. At present, solid adsorbents are usually applied to the adsorption of organic iodine vapor. Among them, organic porous polymers have drawn wide attention due to their regular pore channels, high specific surface areas and other characteristics. In this study, several porous organic polymers (POPs) with micro-mesoporous structures were synthesized using 1-vinylimidazole and divinylbenzene (DVB) as monomers by adjusting the porogen/monomer ratio. The structural composition and pore properties of the POPs were characterized by Fourier-transform infrared spectroscopy (FTIR), X-ray photoelectron spectroscopy (XPS) and nitrogen adsorption-desorption isotherms. The adsorption performance of the POPs for iodine (I₂) and methyl iodide (CH₃I) was evaluated through static adsorption, dynamic adsorption and dynamic column breakthrough experiments. The results indicated that the sample prepared with a porogen-to-monomer molar ratio of 2 (referred to as POP-VD2) exhibited the highest specific surface area and a significant proportion of micropores, achieving optimal adsorption capacities for iodine and methyl iodide of 3.10g/g and 1.47g/g, respectively. The outstanding adsorption performance of POP-VD2 for methyl iodide was attributed to the imidazole groups in its framework, which can undergo spontaneous methylation reactions with CH₃I to form stable imidazolium cations. Additionally, molecular adsorption energy simulations and reaction Gibbs free energy calculations provided insights into the adsorption mechanisms of iodine and methyl iodide on POP-VD2. This study offered a promising solution for the development of high-performance adsorbent materials for iodine and methyl iodide capture.

Key words: porous organic polymers (POPs), iodine, iodomethane, adsorption, electron-rich nitrogen

摘要：

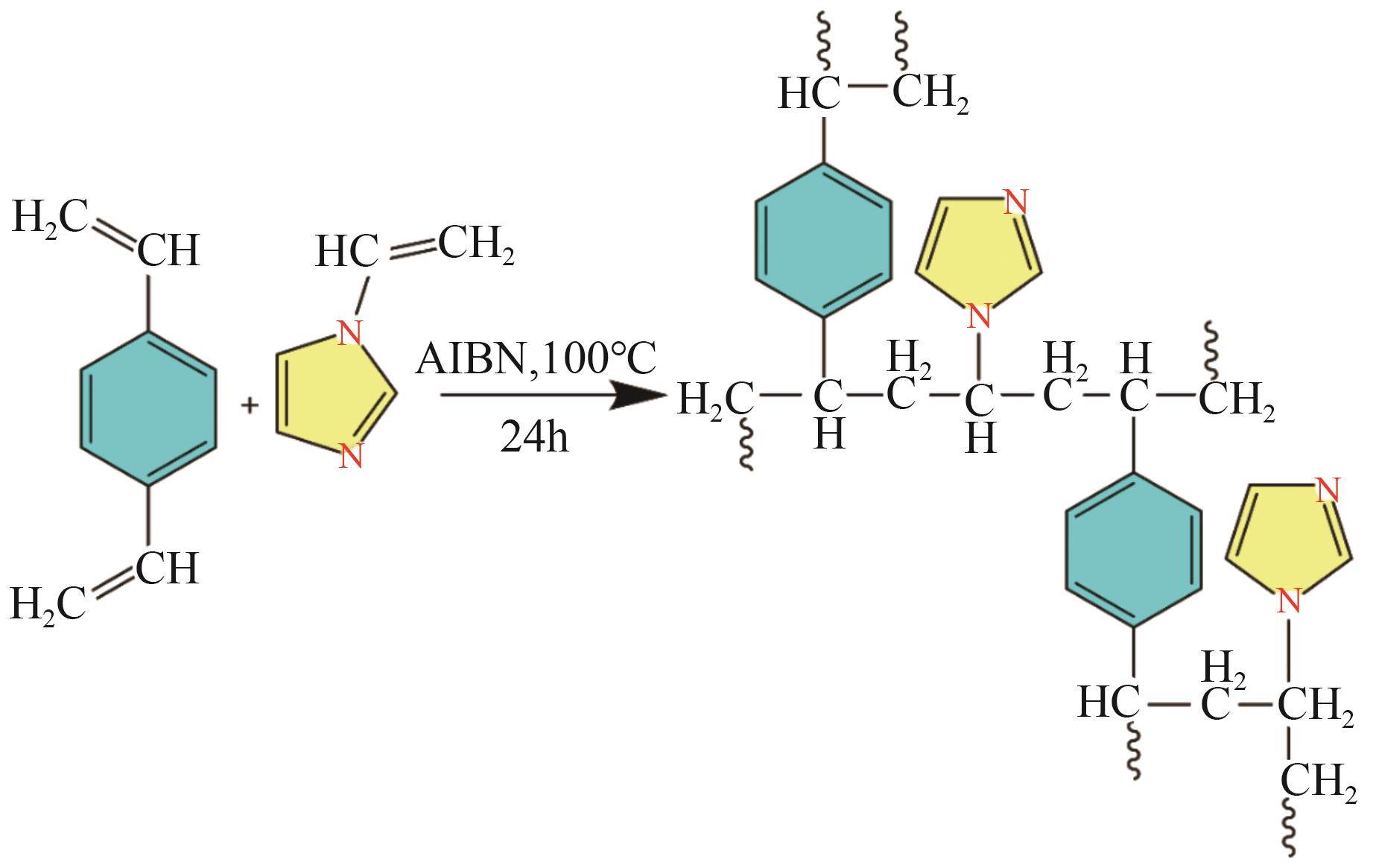

放射性碘吸附是乏燃料后处理过程中不可或缺的环节。目前，固体吸附剂通常被应用于气态碘/碘甲烷的吸附研究，其中有机多孔聚合物因其可调节的吸附位点和高比表面积等优势被广泛关注。本文采用1-乙烯基咪唑和二乙烯苯（divinylbenzene，DVB）为共聚单体，通过调整致孔剂与单体比例，制备了几例具有微-介复合孔结构的有机多孔聚合物（porous organic polymers，POPs）。通过傅里叶变换红外光谱（FTIR）、X射线光电子能谱（XPS）、77K氮气吸附-脱附等温线测试深入分析了POPs材料的结构组成和孔道性质。借助静态吸附、动态吸附以及动态穿透等试验评价了POPs材料对碘（I₂）和碘甲烷（CH₃I）的吸附性能。结果表明，在致孔剂与单体摩尔比为2时所制备的样品（称为POP-VD2）不仅具有高的比表面积和丰富的微孔比例，而且对碘和碘甲烷的吸附性能最佳，分别达到3.10g/g和1.47g/g。POP-VD2对碘甲烷出色的吸附表现得益于其骨架结构中的咪唑能够与碘甲烷发生自发的季铵化反应，生成稳定的咪唑阳离子。此外，基于分子吸附能模拟和反应自由能计算结果也揭示了POP-VD2对碘和碘甲烷的吸附机理。本文为开发新型高性能低成本碘及碘甲烷吸附剂材料提供了潜在的解决方案。

关键词: 多孔有机聚合物, 碘, 碘甲烷, 吸附, 富电子氮

CLC Number:

TQ32

DUAN Ran, LI Yinhui, FU Yu, WU Yue, TAO Chunhui, TANG Yufeng, ZHAO Zeyi, ZHANG Gang, ZHANG Wenxiang, MA Heping. Preparation of imidazole-containing porous organic polymers with micro-mesoporous structure for iodine and iodomethane adsorption[J]. Chemical Industry and Engineering Progress, 2025, 44(12): 7103-7116.

段然, 李印辉, 傅钰, 伍岳, 陶春珲, 唐羽丰, 赵泽一, 张罡, 张文祥, 马和平. 具有微-介复合孔结构的含咪唑有机多孔聚合物的制备及其碘/碘甲烷吸附性能[J]. 化工进展, 2025, 44(12): 7103-7116.

Figures/Tables 18

References 51

[1]	LIU Yujia, WANG Jiafeng, HU Xiaoping, et al. Radioiodine therapy in advanced differentiated thyroid cancer: Resistance and overcoming strategy[J]. Drug Resistance Updates, 2023, 68: 100939.
[2]	ROBBINS Jacob, SCHNEIDER Arthur B. Thyroid cancer following exposure to radioactive iodine[J]. Reviews in Endocrine and Metabolic Disorders, 2000, 1(3): 197-203.
[3]	HIROSE, Katsumi. 2011 Fukushima Dai-ichi nuclear power plant accident: Summary of regional radioactive deposition monitoring results[J]. Journal of Environmental Radioactivity, 2012, 111: 13-17.
[4]	SANYAOLU Olufunke Mary, MOURI Hassina, SELINUS Olle, et al. Sources, pathways, and health effects of iodine in the environment[M]. Practical applications of medical geology. Cham: Springer International Publishing, 2021: 565-613.
[5]	ZHANG Xiaoyuan, GU Ping, LI Xiaoyuan, et al. Efficient adsorption of radioactive iodide ion from simulated wastewater by nano Cu₂O/Cu modified activated carbon[J]. Chemical Engineering Journal, 2017, 322: 129-139.
[6]	UMADEVI K, MANDAL D. Performance of radio-iodine discharge control methods of nuclear reprocessing plants[J]. Journal of Environmental Radioactivity, 2021, 234: 106623.
[7]	叶明吕, 茅云, 唐静娟, 等. 动力堆核燃料后处理过程废气中碘的去除的研究——吸附放射性碘用的附银硅胶的制备和筛选[J]. 核技术, 1985, 8(2): 65-68.
	YE Minglyu, MAO Yun, TANG Jingjuan, et al. Study on removal of radio-iodine from off-gases of nuclear fuel reprocessing of power reactor[J]. Nuclear Techniques, 1985, 8(2): 65-68.
[8]	黄晓春, 张杰鹏, 陈小明. [Zn(bim)2]·(H₂O)(1.67): 具有方钠石拓扑结构的金属-有机敞开骨架[J]. 科学通报, 2003, 48(14): 1491-1494.
	HUANG Xiaochun, ZHANG Jiepeng, CHEN Xiaoming. Zn(bim)₂·(H₂O)(1.67):Metal-organic open skeleton with sodalite topology[J].Chinese Science Bulletin, 2003, 48(14): 1491-1494.
[9]	陈俊畅, 张明星, 王殳凹. 晶态多孔材料合成方法的研究进展[J]. 化学学报, 2023, 81(2): 146-157.
	CHEN Junchang, ZHANG Mingxing, WANG Shu’ao. Research progress of synthesis methods for crystalline porous materials[J]. Acta Chimica Sinica, 2023, 81(2): 146-157.
[10]	党璐童, 康永锋. 金属有机框架材料合成方法研究进展[J]. 化工新型材料, 2020, 48(10): 15-19, 24.
	DANG Lutong, KANG Yongfeng. Research progress on MOFs synthesis method[J]. New Chemical Materials, 2020, 48(10): 15-19, 24.
[11]	MA Juncheng, XU Shuangping, WANG Xintian, et al. Biomass derived porous carbon for efficient iodine adsorption from vapor and solution[J]. Separation and Purification Technology, 2024, 347: 127613.
[12]	Hubler T L, Snoeyink V L. Adsorption of iodine on silver-exchanged zeolites[J]. Industrial & Engineering Chemistry Research, 2005, 44(15): 5720-5726.
[13]	HEINITZ Stephan, MERMANS Jasper, MAERTENS Dominic, et al. Adsorption of radon on silver exchanged zeolites at ambient temperatures[J]. Scientific Reports, 2023, 13(1): 6811.
[14]	LU Shuangchun, LIU Qingling, HAN Rui, et al. Potential applications of porous organic polymers as adsorbent for the adsorption of volatile organic compounds[J]. Journal of Environmental Sciences, 2021, 105: 184-203.
[15]	AHMED Shakeel. Applications of advanced green materials[M]. Duxford: Woodhead Publishing, 2021: 681-703.
[16]	KURISINGAL Jintu Francis, YUN Hongryeol, HONG Chang Seop. Porous organic materials for iodine adsorption[J]. Journal of Hazardous Materials, 2023, 458: 131835.
[17]	NIU Tianhui, FENG Chenchen, YAO Chan, et al. Bisimidazole-based conjugated polymers for excellent iodine capture[J]. ACS Applied Polymer Materials, 2021, 3(1): 354-361.
[18]	YU Yanan, YIN Zheng, CAO Lihui, et al. Organic porous solid as promising iodine capture materials[J]. Journal of Inclusion Phenomena and Macrocyclic Chemistry, 2022, 102(5): 395-427.
[19]	HE Linwei, CHEN Long, DONG Xinglong, et al. A nitrogen-rich covalent organic framework for simultaneous dynamic capture of iodine and methyl iodide[J]. Chem, 2021, 7(3): 699-714.
[20]	ZHANG Yong, HONG Xin, CAO Xiaomei, et al. Functional porous organic polymers with conjugated triaryl triazine as the core for superfast adsorption removal of organic dyes[J]. ACS Applied Materials & Interfaces, 2021, 13(5): 6359-6366.
[21]	KAUR Parminder, HUPP Joseph T, NGUYEN SonBinh T. Porous organic polymers in catalysis: Opportunities and challenges[J]. ACS Catalysis, 2011, 1(7): 819-835.
[22]	NIKKHOO Elham, MALLAKPOUR Shadpour, HUSSAIN Chaudhery Mustansar. Design, synthesis, and application of covalent organic frameworks as catalysts[J]. New Journal of Chemistry, 2023, 47(14): 6765-6788.
[23]	YANG Jian, HU Shaojun, CAI Lixuan, et al. Counteranion-mediated efficient iodine capture in a hexacationic imidazolium organic cage enabled by multiple non-covalent interactions[J]. Nature Communications, 2023, 14(1): 6082.
[24]	Rachel E MOW, RUSSELL-PARKS Glory A, REDWINE Grace E B, et al. Polymer-coated covalent organic frameworks as porous liquids for gas storage[J]. Chemistry of Materials, 2024, 36(3): 1579-1590.
[25]	PAN Tingting, YANG Kaijie, DONG Xinglong, et al. Adsorption-based capture of iodine and organic iodides: Status and challenges[J]. Journal of Materials Chemistry A, 2023, 11(11): 5460-5475.
[26]	王玲钰, 包良进. 放射性尾气中碘的净化处理研究进展[J]. 韩山师范学院学报, 2020, 41(6): 23-38.
	WANG Lingyu, BAO Liangjin. Research progress on iodine removal from radioactive off-gases[J]. Journal of Hanshan Normal University, 2020, 41(6): 23-38.
[27]	NAKAMOTO Kazuo. Infrared and Raman spectra of inorganic and coordination compounds[M]. 5th ed. New York: Wiley, 1997.
[28]	KRESGE C T, LEONOWICZ M E, ROTH W J, et al. Ordered mesoporous molecular sieves synthesized by a liquid-crystal template mechanism[J]. Nature, 1992, 359(6397): 710-712.
[29]	THOMMES Matthias, KANEKO Katsumi, NEIMARK Alexander V, et al. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report)[J]. Pure and Applied Chemistry, 2015, 87(9/10): 1051-1069.
[30]	ROUQUEROL Françoise, ROUQUEROL Jean, SING and Kenneth. Adsorption by powders and porous solids: Principles, methodology, and applications[M]. Second edition. San Diego: Academic Press, 1999.
[31]	Gérard FÉREY, SERRE Christian, Caroline MELLOT-DRAZNIEKS, et al. A hybrid solid with giant pores prepared by a combination of targeted chemistry, simulation, and powder diffraction[J]. Angewandte Chemie International Edition, 2004, 43(46): 6296-6301.
[32]	SING K S W. Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity (Recommendations 1984)[J]. Pure and Applied Chemistry, 1985, 57(4): 603-619.
[33]	PAN Tingting, YANG Kaijie, DONG Xinglong, et al. Strategies for high-temperature methyl iodide capture in azolate-based metalorganic frameworks[J]. Nature Communications, 2024(15):26-30.
[34]	TAI Bo, LI Baoyu, HE Linwei, et al. Flexible interdigitated layered framework with multiple accessible active sites for high-performance CH₃I capture[J]. Science China Chemistry, 2024, 67(5): 1569-1577.
[35]	WAN Haibo, XU Qingfeng, WU Jiacheng, et al. SuFEx-enabled elastic polysulfates for efficient removal of radioactive iodomethane and polar aprotic organics through weak intermolecular forces[J]. Angewandte Chemie International Edition, 2022, 61(33): e202208577.
[36]	高昕. 咪唑基金属配位聚合物的制备及对碘的吸附研究[D]. 南昌: 南昌大学, 2023.
	GAO Xin. Preparation of imidazole-based metal coordination polymer and its adsorption of iodine[D]. Nanchang: Nanchang University, 2023.
[37]	延恺萌. 富氮共价有机骨架的制备及其碘吸附性能研究[D]. 长春: 东北师范大学, 2023.
	YAN Kaimeng. Preparation of nitrogen-rich covalent organic frameworks and study on their iodine adsorption properties. Changchun: Northeast Normal University, 2023.
[38]	于静文, 李忠, 武蒙蒙, 等. 吲哚基多孔有机聚合物对碘蒸气的吸附性能[J/OL]. 低碳化学与化工, 2025, 50(4): 90-97, 106.
	YU Jingwen, LI Zhong, WU Mengmeng, et al. Iodine vapor adsorption performance of indole-based porous organic polymers[J/OL]. China Industrial Economics, 2025, 50(4): 90-97, 106.
[39]	PHAM Tung Cao Thanh, DOCAO Son, HWANG In Chul, et al. Capture of iodine and organic iodides using silica zeolites and the semiconductor behaviour of iodine in a silica zeolite[J]. Energy & Environmental Science, 2016, 9(3): 1050-1062.
[40]	Kecheng JIE, ZHOU Yujuan, SUN Qi, et al. Mechanochemical synthesis of pillar[5]quinone derived multi-microporous organic polymers for radioactive organic iodide capture and storage[J]. Nature Communications, 2020,11(1): 1086.
[41]	LI Baiyan, DONG Xinglong, WANG Hao, et al. Functionalized metal organic frameworks for effective capture of radioactive organic iodides[J]. Faraday Discussions, 2017, 201: 47-61.
[42]	YAN Zhuojun, YUAN Ye, TIAN Yuyang, et al. Highly efficient enrichment of volatile iodine by charged porous aromatic frameworks with three sorption sites[J]. Angewandte Chemie International Edition, 2015, 54(43): 12733-12737.
[43]	ZHU Yunlong, JI Yajian, WANG Degao, et al. BODIPY-based conjugated porous polymers for highly efficient volatile iodine capture[J]. Journal of Materials Chemistry A, 2017, 5(14): 6622-6629.
[44]	CHEN Dongyang, FU Yu, YU Wenguang, et al. Versatile Adamantane-based porous polymers with enhanced microporosity for efficient CO₂capture and iodine removal[J]. Chemical Engineering Journal, 2018, 334: 900-906.
[45]	CHEN Yi, SONG Xiaojuan, LI Aisen, et al. Solvent-responsive nonporous adaptive crystals derived from pyridinium hydrochloride and the application in iodine adsorption[J]. Advanced Materials, 2024, 36(30): 2402885.
[46]	PEI Cuiying, Teng BEN, XU Shixian, et al. Ultrahigh iodine adsorption in porous organic[J]. Journal of Materials ChemistryA, 2014,2:7179-7187.
[47]	李和国, 王立莹, 赵越, 等. 一类新型高效捕获碘蒸汽的低成本超交联微孔聚合物[J]. 兵器装备工程学报, 2021, 42(7): 269-273.
	LI Heguo, WANG Liying, ZHAO Yue, et al. A kind of novel low-cost hypercrosslinked polymers with efficient lodine adsorption[J]. Journal of Ordnance Equipment Engineering, 2021, 42(7): 269-273.
[48]	SOCRATES George. Infrared and Raman characteristic group frequencies: Tables and charts[M]. 3rd ed. Chichester: Wiley, 2001.
[49]	CORMA Avelino, GARCIA Hermenegildo. Lewis acids: From conventional homogeneous to green homogeneous and heterogeneous catalysis[J]. Chemical Reviews, 2003, 103(11): 4307-4365.
[50]	SMITH B C. Fundamentals of Fourier transform infrared spectroscopy[M]. 2nd ed. Boca Raton, FL: CRC Press, 2011
[51]	BRUNAUER Stephen, EMMETT P H, TELLER Edward. Adsorption of gases in multimolecular layers[J]. Journal of the American Chemical Society, 1938, 60(2): 309-319.

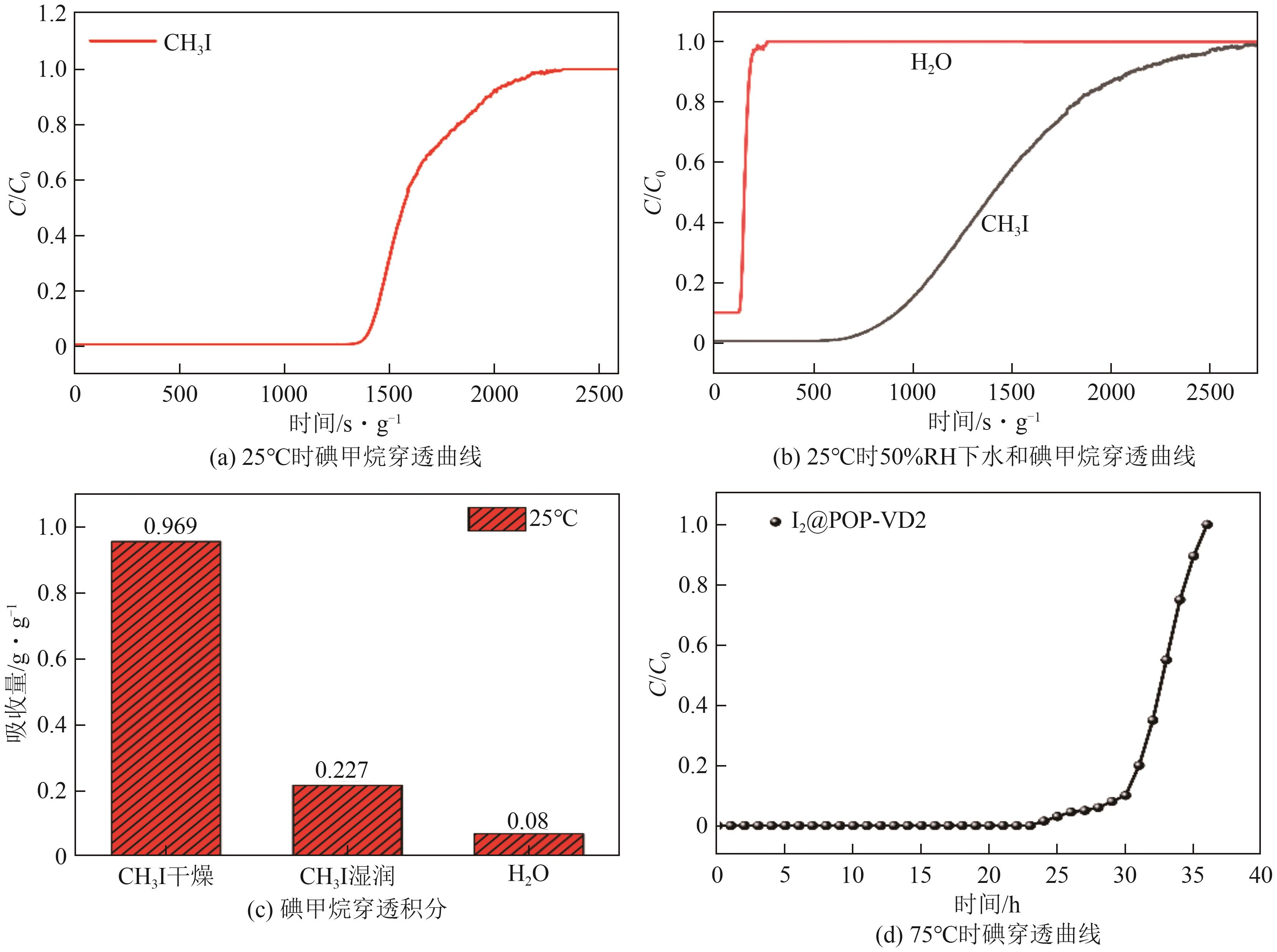

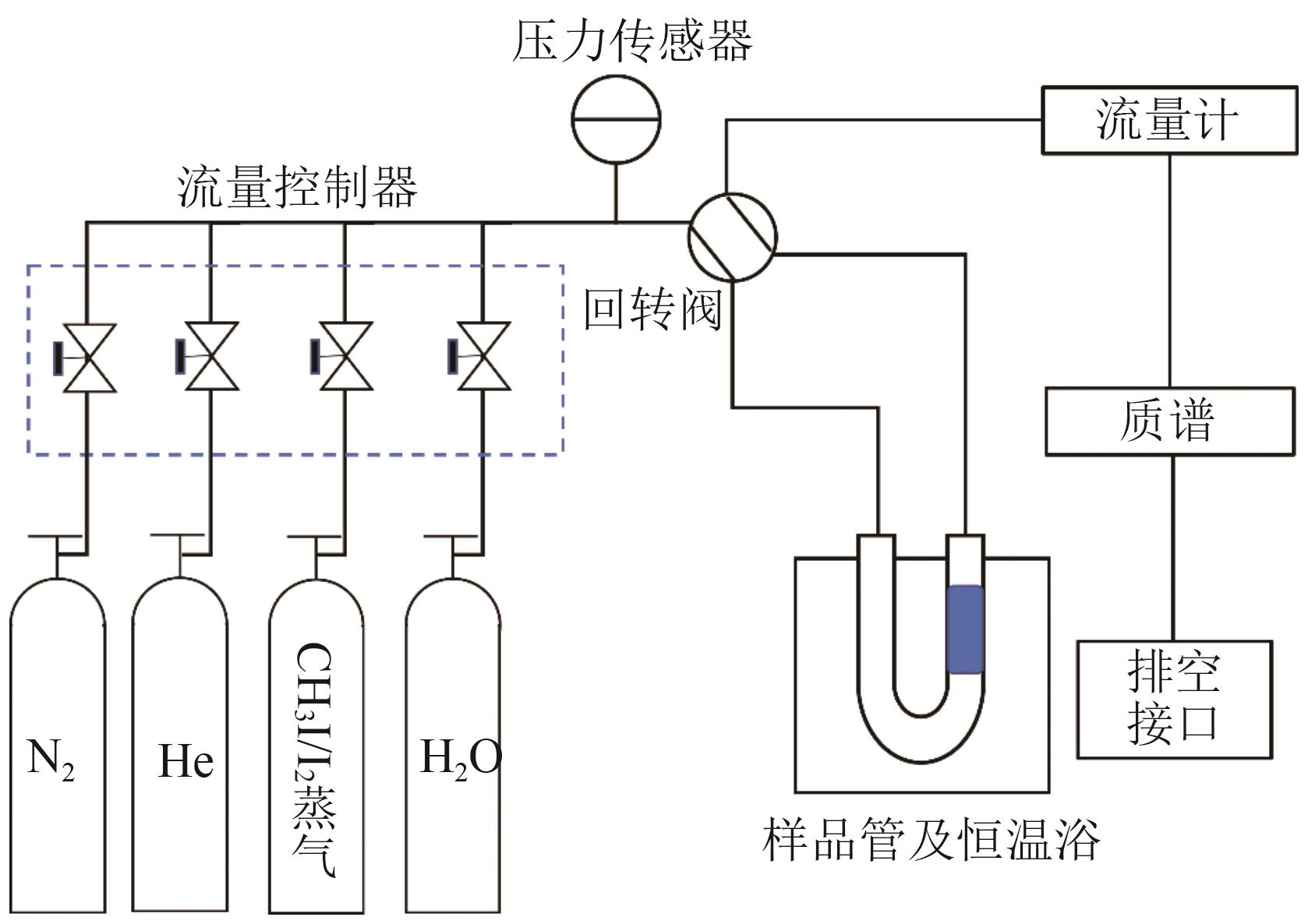

实验	气体流量/mL·min^-1
实验	氦气	碘甲烷	氮气	水蒸气
25℃，CH₃I穿透	10.00	5.65	0	0
25℃，50%相对湿度，CH₃I穿透	2.50	1.14	48.00	0.85
75℃，CH₃I穿透	10.00	5.65	0	0
75℃，I₂穿透	10.00	0	0	0

实验	气体流量/mL·min^-1
实验	氦气	碘甲烷	氮气	水蒸气
25℃，CH₃I穿透	10.00	5.65	0	0
25℃，50%相对湿度，CH₃I穿透	2.50	1.14	48.00	0.85
75℃，CH₃I穿透	10.00	5.65	0	0
75℃，I₂穿透	10.00	0	0	0

样品编号	元素原子分数/%
样品编号	N	C	H
0	6.744	84.108	6.665
1	7.304	83.260	6.675
2	9.804	78.249	6.674
3	8.047	82.118	6.830
4	7.087	83.476	6.715
5	6.598	84.154	6.749

样品编号	元素原子分数/%
样品编号	N	C	H
0	6.744	84.108	6.665
1	7.304	83.260	6.675
2	9.804	78.249	6.674
3	8.047	82.118	6.830
4	7.087	83.476	6.715
5	6.598	84.154	6.749

样品名称	碘甲烷吸附量	碘蒸气吸附量	参考文献
POP-VD2	1.47g/g，75℃	3.10g/g，75℃	本文
MFU-4l	0.41g/g，150℃	—	[33]
SCU-20	1.84g/g，75℃	—	[34]
TPC-cPS	1.57g/g，25℃	—	[35]
Ag-Tipe	0.55g/g，75℃	3.31g/g，75℃	[36]
Zn-Vlm₆	—	2.47g/g，75℃	[36]
TPTA-BD	0.76g/g，75℃	—	[37]
Ag-ZSM-5	1.1g/g，90℃	—	[38]
SCU-COF-2	1.45g/g，75℃	—	[19]
HIL	0.42g/g，75℃	—	[39]
MHP-P5Q	0.8g/g，25℃	—	[40]
MIL-101-Cr-DMEDA	0.8g/g，150℃	—	[41]
1-Me-2-PhIn-P	—	2.99g/g，75℃	[38]
PAF-24	—	2.76g/g，75℃	[42]
BDP-CPP-1	—	2.83g/g，75℃	[43]
NOP-54	—	2.02g/g，75℃	[44]
TPAPyH	—	1.27g/g，70℃	[45]
PAF-1	—	1.86g/g，25℃	[46]
JUC-Z2	—	1.44g/g，25℃	[46]
HCPs-1	—	2.04g/g，75℃	[47]
HCPs-2	—	2.50g/g，75℃	[47]
