Electrochemical characteristics of chitosan-derived porous carbon electrodes for all-aqueous thermally regenerative batteries

doi:10.16085/j.issn.1000-6613.2024-1977

Abstract

Abstract:

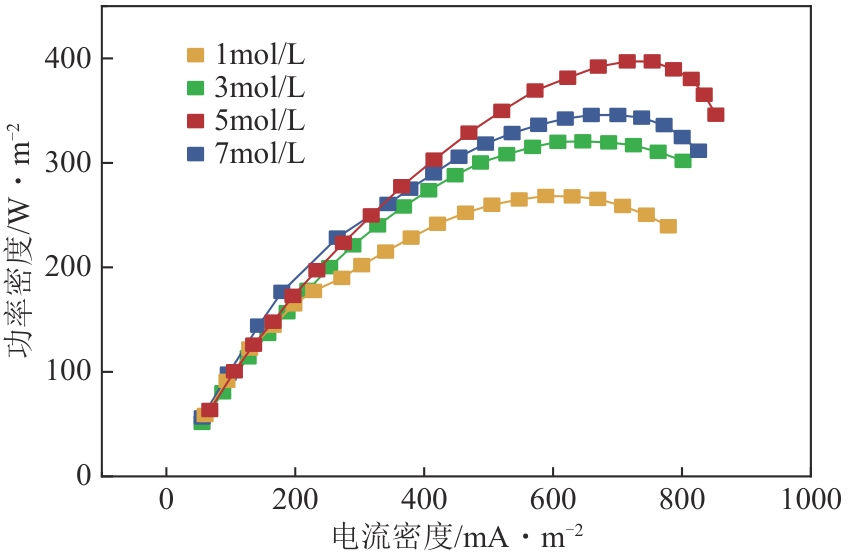

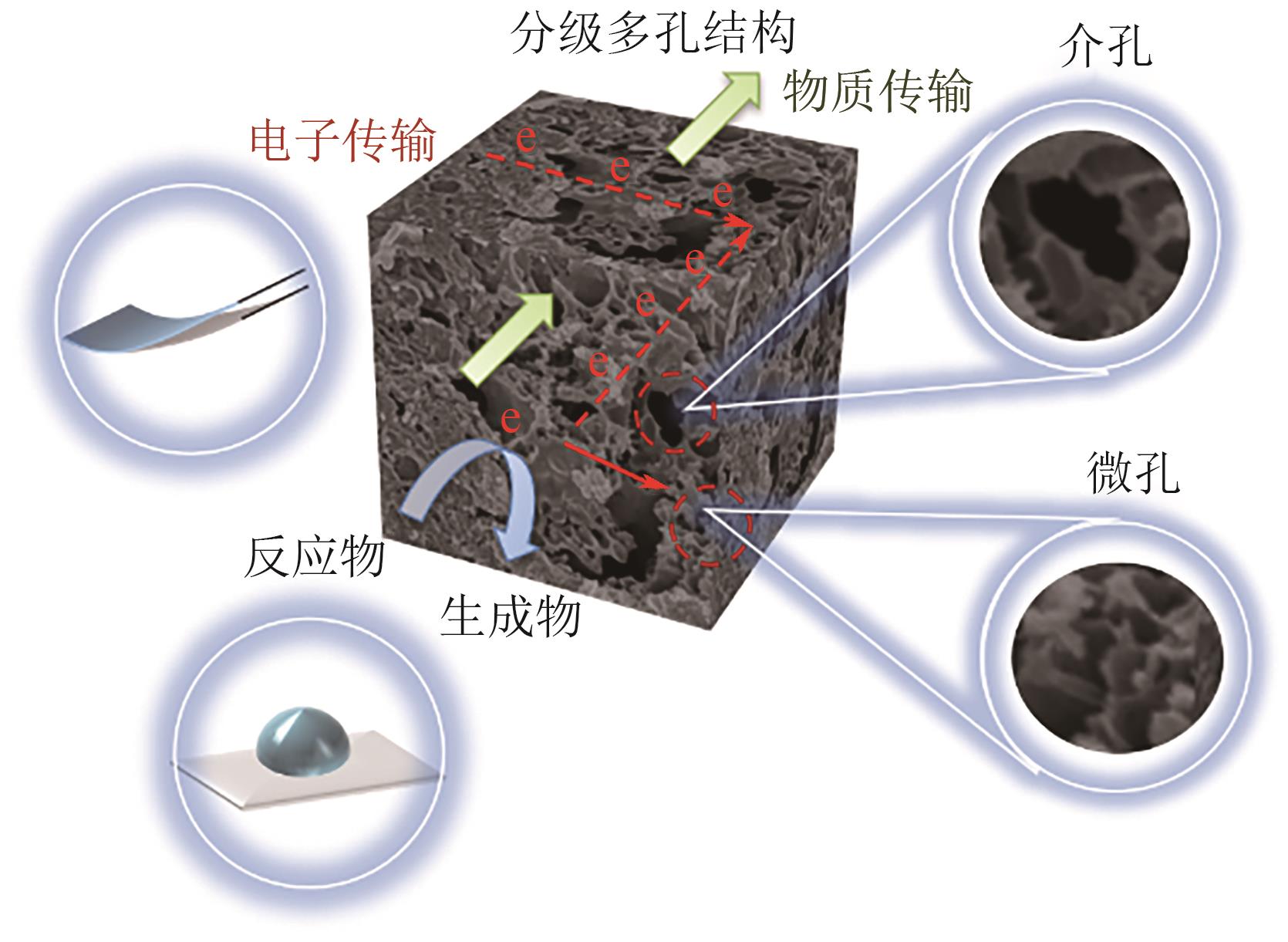

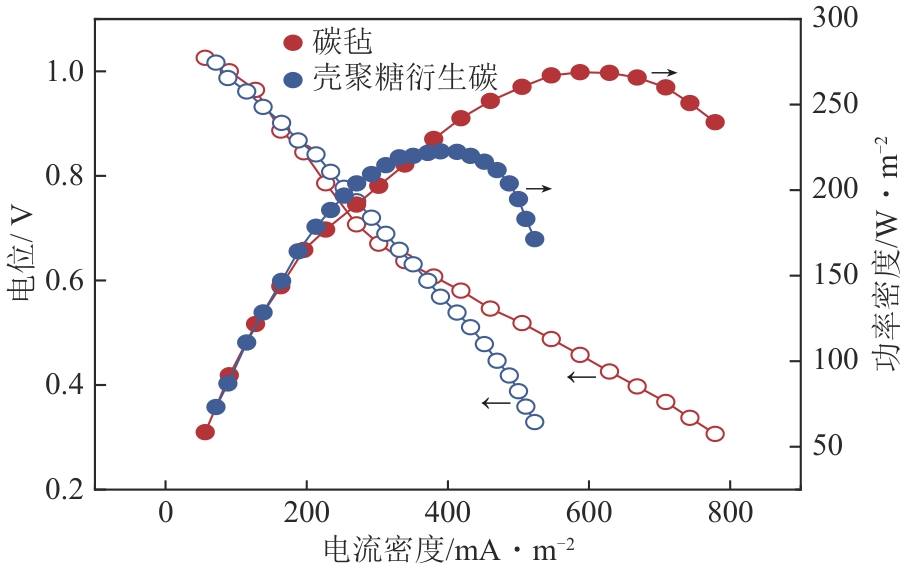

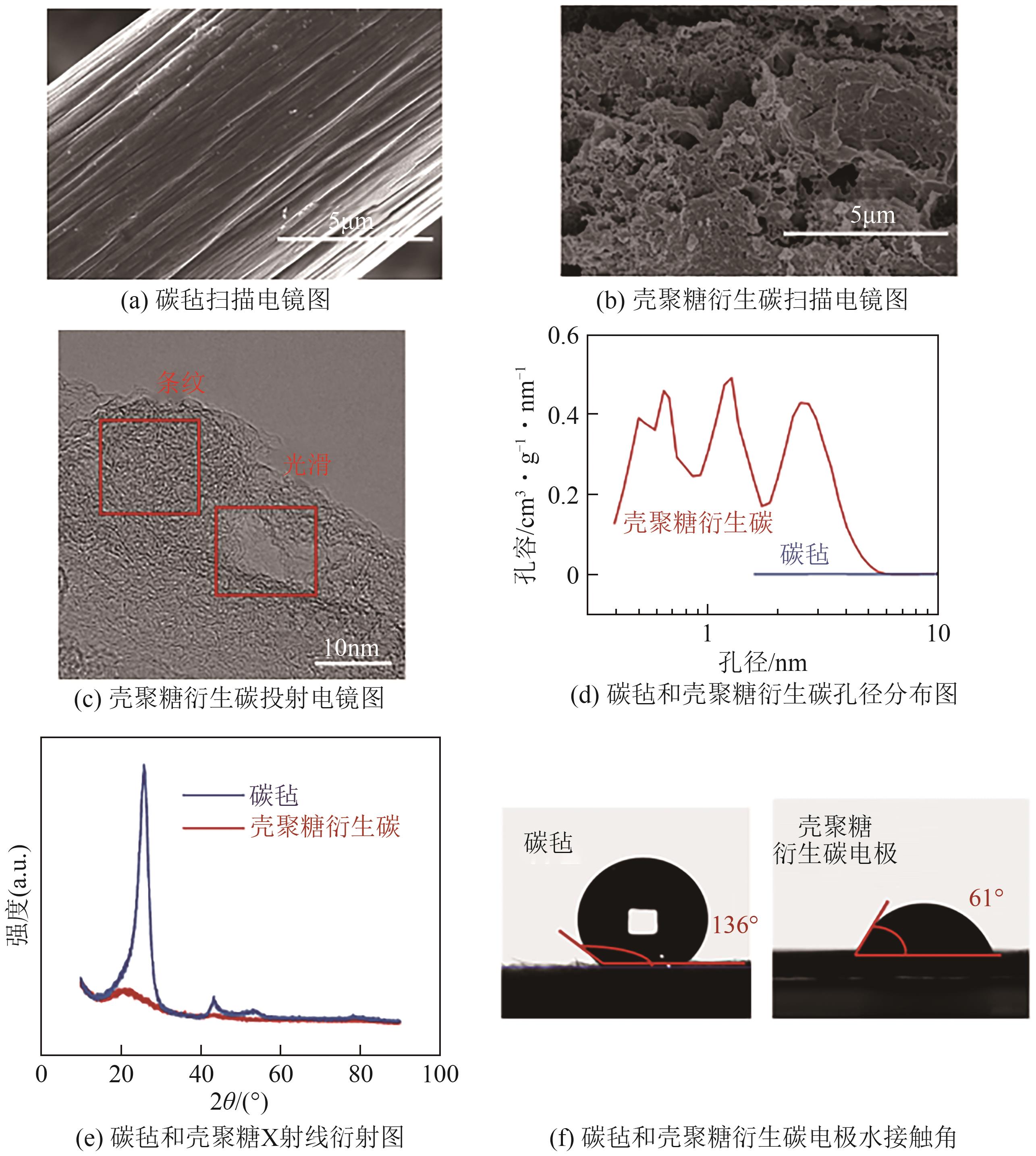

To address the issues of limited electrode reaction interfaces and high transport resistance in electrodes for all-aqueous thermally regenerative batteries, chitosan was used to fabricate hierarchical porous electrodes to enhance the battery performance. The effects of ammonia concentration and the ratio of chitosan to potassium hydroxide were investigated. The chitosan-derived carbon electrodes exhibited rich hierarchical pore structure, high specific surface area, and hydrophilicity, leading to a 23% improvement in battery performance compared to conventional carbon felt electrodes. The battery performance was firstly increased with ammonia concentration and the chitosan-to-potassium hydroxide ratio, and then declined. The optimal ammonia concentration (5mol/L) and chitosan-to-potassium hydroxide ratio (5/8) yield a maximum power density of 531W/m².

Key words: thermally regenerative battery, biomass-derived porous carbon electrode, ammonia concentration, chitosan, potassium hydroxide, electrochemistry

摘要：

针对全水系热再生电池目前存在电极反应界面受限和传输阻力大等问题，本文利用壳聚糖制备分级孔电极来进一步提升电池性能，研究了氨浓度、壳聚糖与氢氧化钾比例的影响。结果表明，壳聚糖衍生碳电极具有丰富分级孔结构、高比表面积和亲水性，其获得的电池最大性能比传统采用碳毡的电池高23%，且其电池性能随着氨浓度和壳聚糖与氢氧化钾比例升高先增加后降低，存在最佳的氨浓度（5mol/L）和壳聚糖与氢氧化钾比例（5/8），获得最大功率密度为531W/m²。

关键词: 热再生电池, 生物质衍生多孔碳电极, 氨浓度, 壳聚糖, 氢氧化钾, 电化学

CLC Number:

TM911.3

LI Si, SHI Yu, ZHANG Liang, LI Jun, ZHU Xun, LIAO Qiang. Electrochemical characteristics of chitosan-derived porous carbon electrodes for all-aqueous thermally regenerative batteries[J]. Chemical Industry and Engineering Progress, 2025, 44(12): 6852-6858.

李思, 石雨, 张亮, 李俊, 朱恂, 廖强. 壳聚糖衍生多孔碳电极全水系热再生电池性能[J]. 化工进展, 2025, 44(12): 6852-6858.

Figures/Tables 8

References 27

[1]	李洞, 石雨, 张亮, 等. 采用有机溶剂的热再生电池性能[J]. 化工进展, 2022, 41(12): 6302-6309.
	LI Dong, SHI Yu, ZHANG Liang, et al. Performance of thermal regenerative batteries with organic solvents[J]. Chemical Industry and Engineering Progress, 2022, 41(12): 6302-6309.
[2]	HE Yijian, LI Rong, FAN Yuchen, et al. Study on the performance of a solid-state thermoelectric refrigeration system equipped with ionic wind fans for ultra-quiet operation[J]. International Journal of Refrigeration, 2021, 130: 441-451.
[3]	MACARIO Leilane R, GOLABEK Andrew, KLEINKE Holger, et al. Thermoelectric properties of Sb-doped tin oxide by a one-step solid-state reaction[J]. Ceramics International, 2022, 48(3): 3585-3591.
[4]	PILI Roberto, WIELAND Christoph, SPLIETHOFF Hartmut, et al. Optimal tuning of model predictive controllers for organic Rankine cycle systems recovering waste heat from heavy-duty vehicles[J]. Applied Thermal Engineering, 2023, 220: 119803.
[5]	MA Ruiqiang, QIAO Hongna, YU Xiaohui, et al. Thermo-economic analysis and multi-objective optimization of a reversible heat pump-organic Rankine cycle power system for energy storage[J]. Applied Thermal Engineering, 2023, 220: 119658.
[6]	HAO Jinlin, MA Shuhui, HOU Yushuang, et al. Concise and efficient asymmetric homogeneous Janus membrane for high-performance osmotic energy conversion based on oppositely charged montmorillonite[J]. Electrochimica Acta, 2022, 423: 140581.
[7]	ZEWELDI Hana G, BENDOY Anelyn P, PARK Myoung Jun, et al. Forward osmosis with direct contact membrane distillation using tetrabutylphosphonium p-toluenesulfonate as an effective and safe thermo-recyclable osmotic agent for seawater desalination[J]. Chemosphere, 2021, 263: 128070.
[8]	ZHANG Fang, LIU Jia, YANG Wulin, et al. A thermally regenerative ammonia-based battery for efficient harvesting of low-grade thermal energy as electrical power[J]. Energy & Environmental Science, 2015, 8(1): 343-349.
[9]	CHEN Pengyu, ZHANG Liang, SHI Yu, et al. Biomass waste-derived hierarchical porous composite electrodes for high-performance thermally regenerative ammonia-based batteries[J]. Journal of Power Sources, 2022, 517: 230719.
[10]	张永胜, 张亮, 李俊, 等. 采用阴/阳极通流的热再生氨电池性能[J]. 工程热物理学报, 2021, 42(12): 3274-3280.
	ZHANG Yongsheng, ZHANG Liang, LI Jun, et al. Performance of a sequential cathode-anode thermally regenerative ammonia-based battery with flow-through electrodes[J]. Journal of Engineering Thermophysics, 2021, 42(12): 3274-3280.
[11]	陈鹏宇, 张亮, 李俊, 等. 具有嵌入式流道的贯穿电极热再生电池性能特性[J]. 工程热物理学报, 2023, 44(3): 812-817.
	CHEN Pengyu, ZHANG Liang, LI Jun, et al. Performance of thermally regenerative batteries using flow-through porous electrodes with embedded flow channels[J]. Journal of Engineering Thermophysics, 2023, 44(3): 812-817.
[12]	ZHANG Fang, LABARGE Nicole, YANG Wulin, et al. Enhancing low-grade thermal energy recovery in a thermally regenerative ammonia battery using elevated temperatures[J]. ChemSusChem, 2015, 8(6): 1043-1048.
[13]	RAHIMI Mohammad, ZHU Liang, KOWALSKI Kelly L, et al. Improved electrical power production of thermally regenerative batteries using a poly(phenylene oxide) based anion exchange membrane[J]. Journal of Power Sources, 2017, 342: 956-963.
[14]	ZHANG Liang, LI Yanxiang, ZHU Xun, et al. Copper foam electrodes for increased power generation in thermally regenerative ammonia-based batteries for low-grade waste heat recovery[J]. Industrial & Engineering Chemistry Research, 2019, 58(17): 7408-7415.
[15]	SHI Yu, ZHANG Liang, LI Jun, et al. 3-D printed gradient porous composite electrodes improve anodic current distribution and performance in thermally regenerative flow battery for low-grade waste heat recovery[J]. Journal of Power Sources, 2020, 473: 228525.
[16]	SPRINGER Renaldo, CROSS Nicholas R, LVOV Serguei N, et al. An all-aqueous thermally regenerative ammonia battery chemistry using Cu(Ⅰ, Ⅱ) redox reactions[J]. Journal of the Electrochemical Society, 2021, 168(7): 070523.
[17]	CROSS Nicholas R, Matthew J RAU, LVOV Serguei N, et al. Power and energy capacity tradeoffs in an all-aqueous copper thermally regenerative ammonia battery[J]. Journal of Power Sources, 2022, 531: 231339.
[18]	CROSS Nicholas R, Matthew J RAU, LVOV Serguei N, et al. System efficiency and power assessment of the all-aqueous copper thermally regenerative ammonia battery[J]. Applied Energy, 2023, 339:120959.
[19]	李春龚, 王翔. 不同干燥方式及存储时间对壳聚糖气凝材料孔结构的影响[J]. 医用生物力学, 2021, 36(S1): 404.
	LI Chungong, WANG Xiang. Microstructure and micromechanical properties of chitosan filmsunder different drying conditions[J]. Journal of Medical Biomechanics, 2021, 36(S1): 404.
[20]	周亚丽, 雷西萍, 樊凯, 等. 冷冻干燥辅助一步碳化-活化壳聚糖基多孔碳的制备及电化学性能[J]. 材料导报, 2023, 37(5): 213-220.
	ZHOU Yali, LEI Xiping, FAN Kai, et al. Preparation and electrochemical properties of freeze-drying-assisted one.step carbonization-activated chitosan-based porous carbon[J]. Materials Reports, 2023, 37(5): 213-220.
[21]	SHANG Wei, LIU Yuanhui, HE Qiping, et al. Efficient adsorption of organic matters and ions by porous biochar aerogel as pre-treatment of ultrafiltration for shale gas wastewater reuse[J]. Chemical Engineering Journal Advances, 2020, 2:100011.
[22]	LU Zhiqiang, SHI Yu, ZHANG Liang, et al. Ammonia crossover in thermally regenerative ammonia-based batteries for low-grade waste heat recovery[J]. Journal of Power Sources, 2022, 548: 232085.
[23]	卢志强, 张亮, 李俊, 等. 不同负载下热再生氨电池产电及Cu²⁺去除特性[J]. 化工进展, 2022, 41(6): 3341-3349.
	LU Zhiqiang, ZHANG Liang, LI Jun, et al. Effects of load on power generation and copper removal rate of thermally regenerative ammonia-based batteries[J]. Chemical Industry and Engineering Progress, 2022, 41(6): 3341-3349.
[24]	KANNAN Aravindaraj G, SAMUTHIRAPANDIAN Amaresh, KIM Dong-Won. Electric double layer capacitors employing nitrogen and sulfur co-doped, hierarchically porous graphene electrodes with synergistically enhanced performance[J]. Journal of Power Sources, 2017, 337: 65-72.
[25]	OUYANG Bo, ZHANG Yongqi, WANG Ying, et al. Plasma surface functionalization induces nanostructuring and nitrogen-doping in carbon cloth with enhanced energy storage performance[J]. Journal of Materials Chemistry A, 2016, 4(45): 17801-17808.
[26]	Sung Hyun NOH, LEE Hak Bong, LEE Kyong Sub, et al. Sub-second joule-heated RuO₂-decorated nitrogen-and sulfur-doped graphene fibers for flexible fiber-type supercapacitors[J]. ACS Applied Materials & Interfaces, 2022, 14(26): 29867-29877.
[27]	BAI Xiaojie, WANG Junhui, HAO Huiying, et al. Magnetic field-enhanced performance of superparamagnetic LiMn₂O₄-based composite slurry electrode for semisolid flow battery[J]. Small Methods, 2023, 7(9): 2300548.

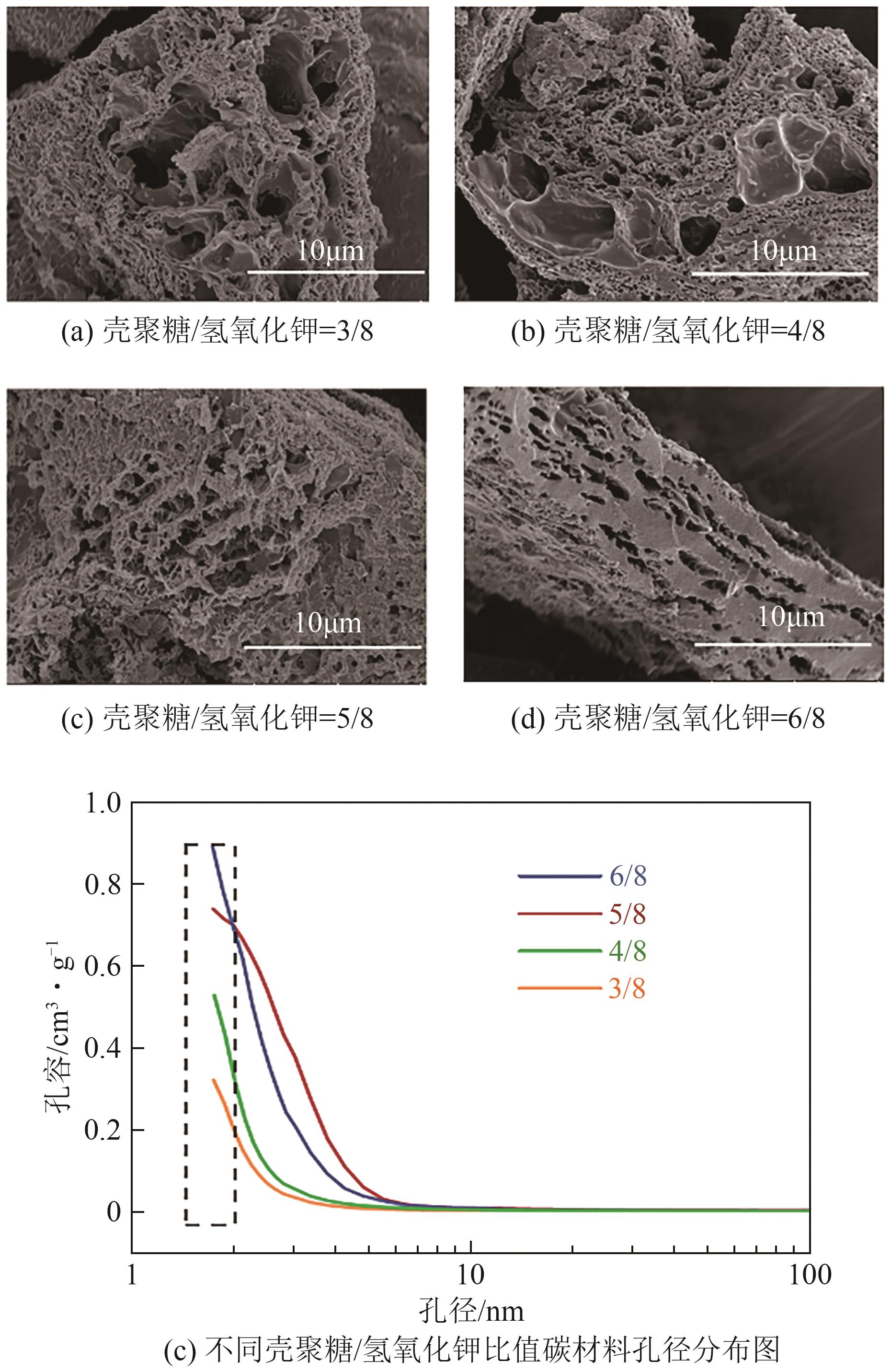

壳聚糖与氢氧化钾比值	比表面积/m²·g^-1	孔容/cm³·g^-1	体积密度	振实密度
3/8	208	0.35	0.054	0.068
4/8	259	0.54	0.034	0.040
5/8	444	1.65	0.023	0.027
6/8	318	1.22	0.027	0.030

壳聚糖与氢氧化钾比值	比表面积/m²·g^-1	孔容/cm³·g^-1	体积密度	振实密度
3/8	208	0.35	0.054	0.068
4/8	259	0.54	0.034	0.040
5/8	444	1.65	0.023	0.027
6/8	318	1.22	0.027	0.030
