Impact of unequal depth arrangement on heat extraction performance of middle-deep borehole heat exchanger array

doi:10.16085/j.issn.1000-6613.2024-2041

Abstract

Abstract:

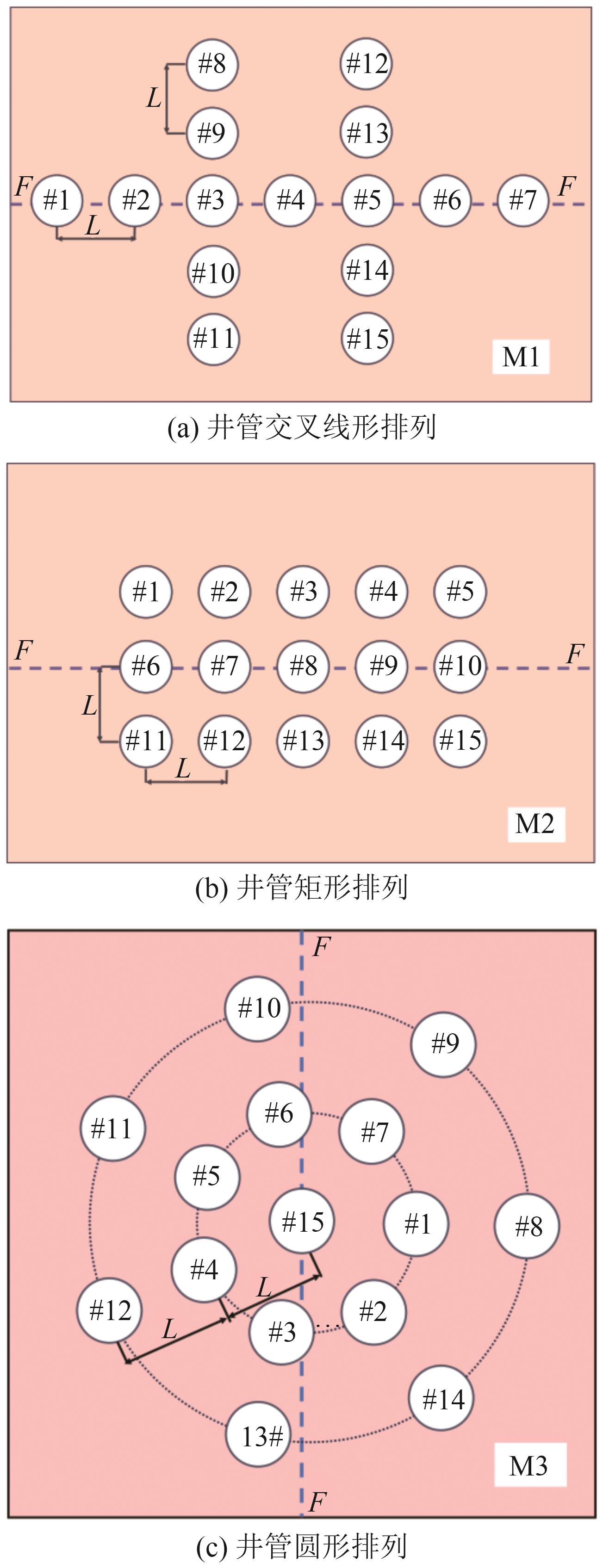

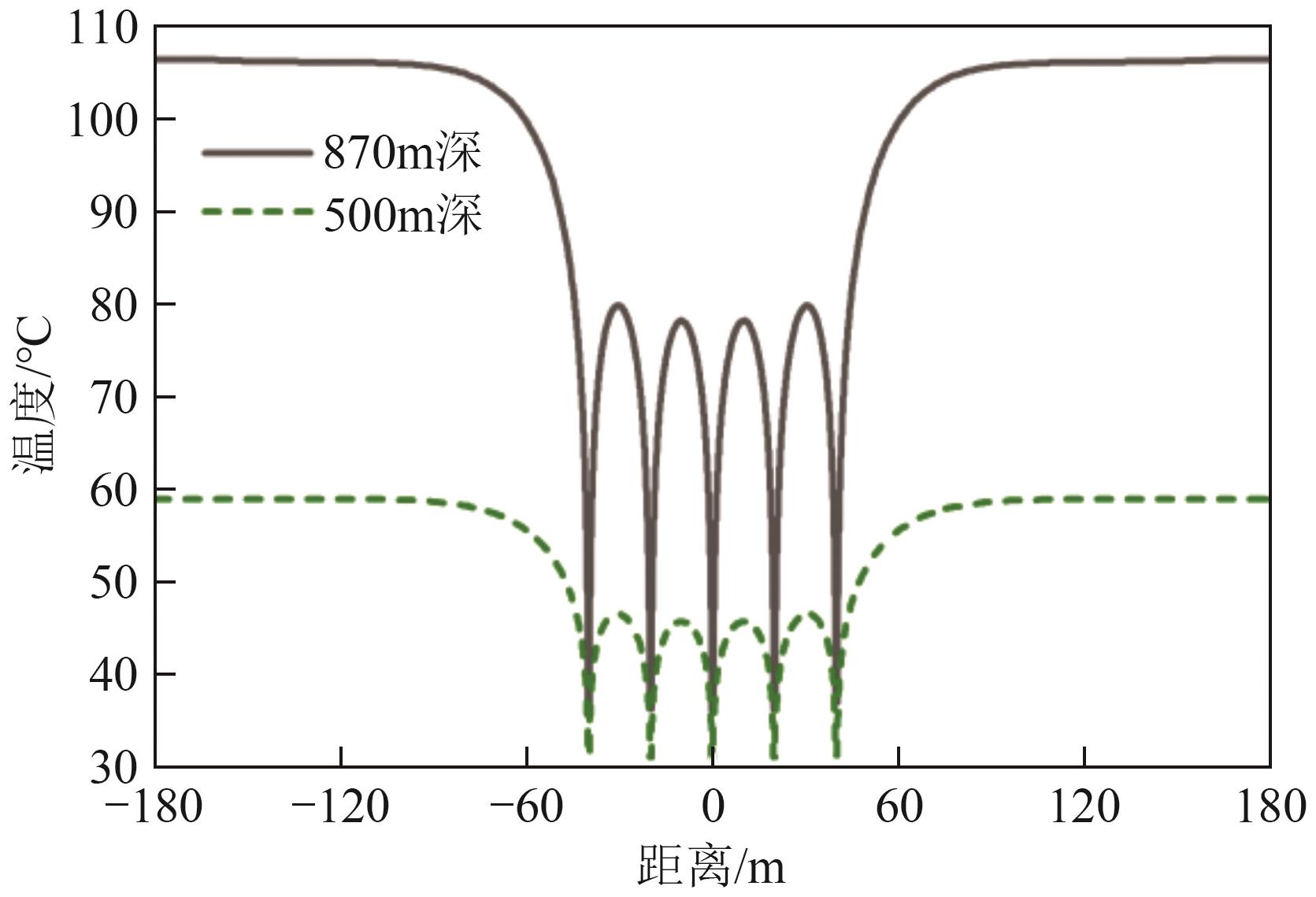

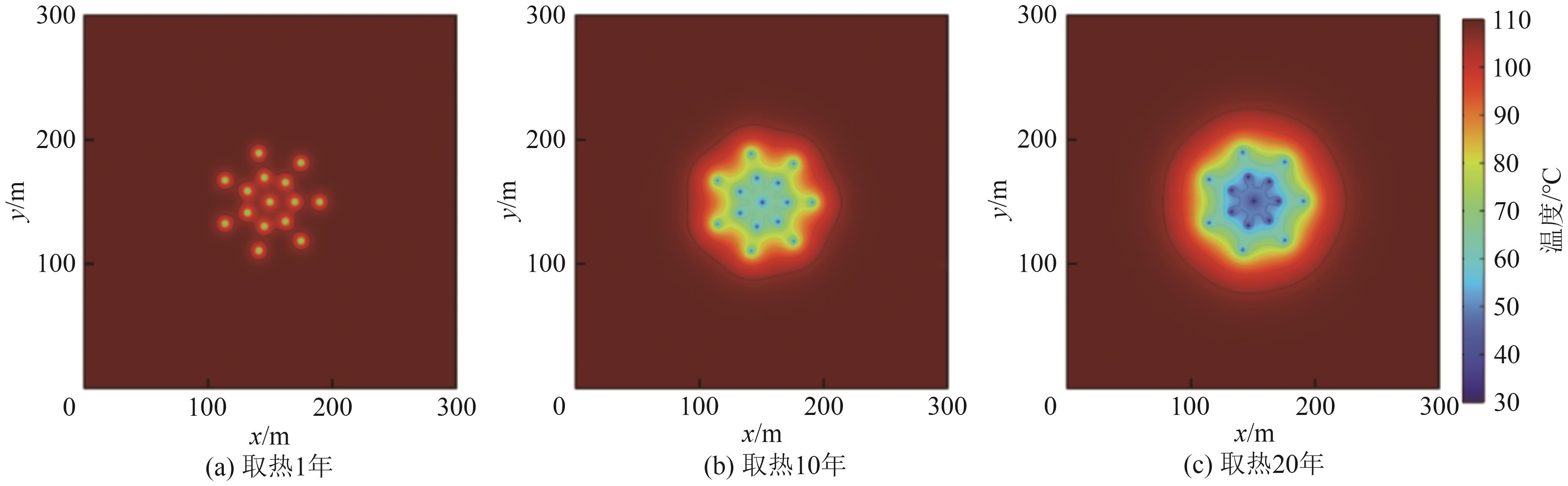

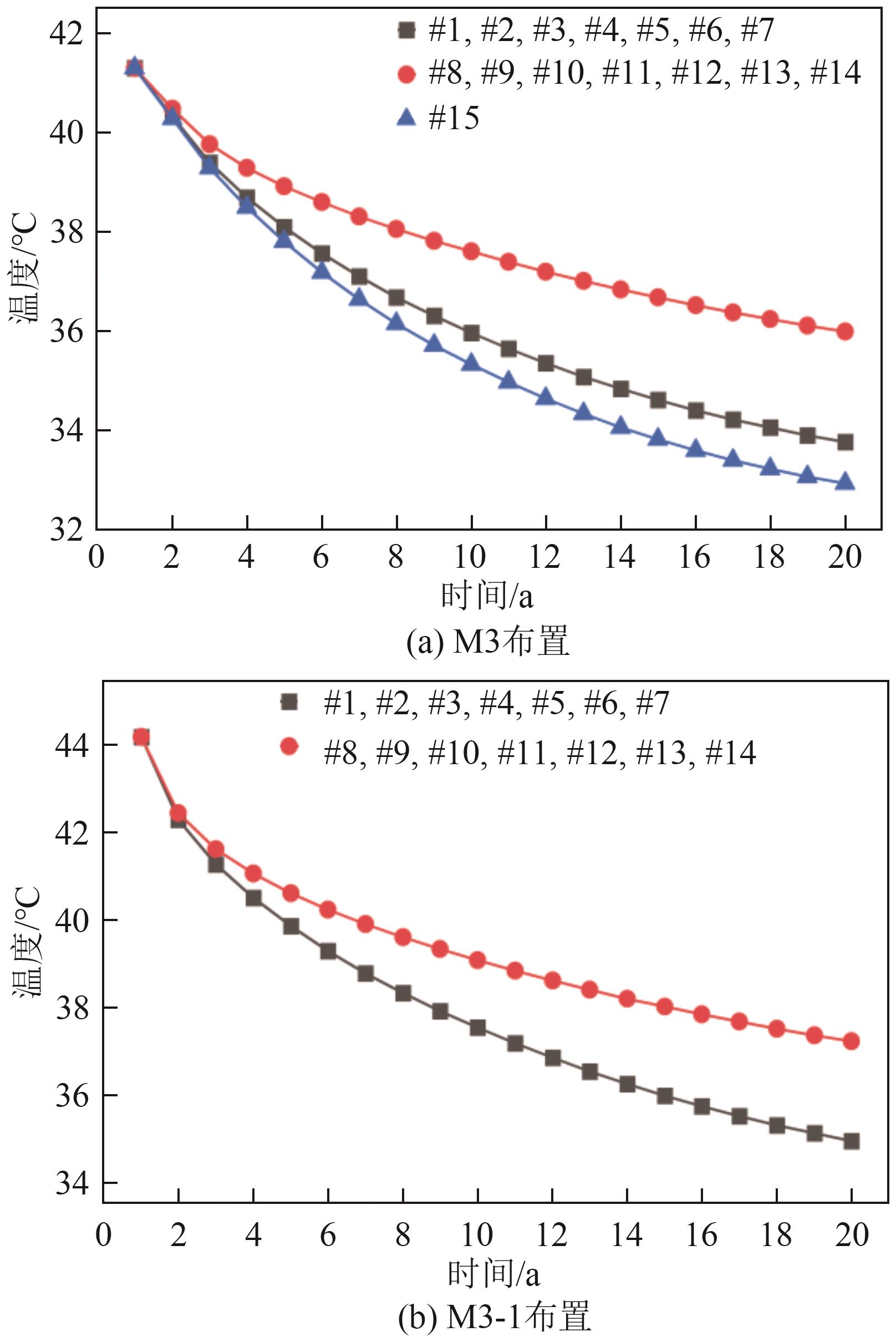

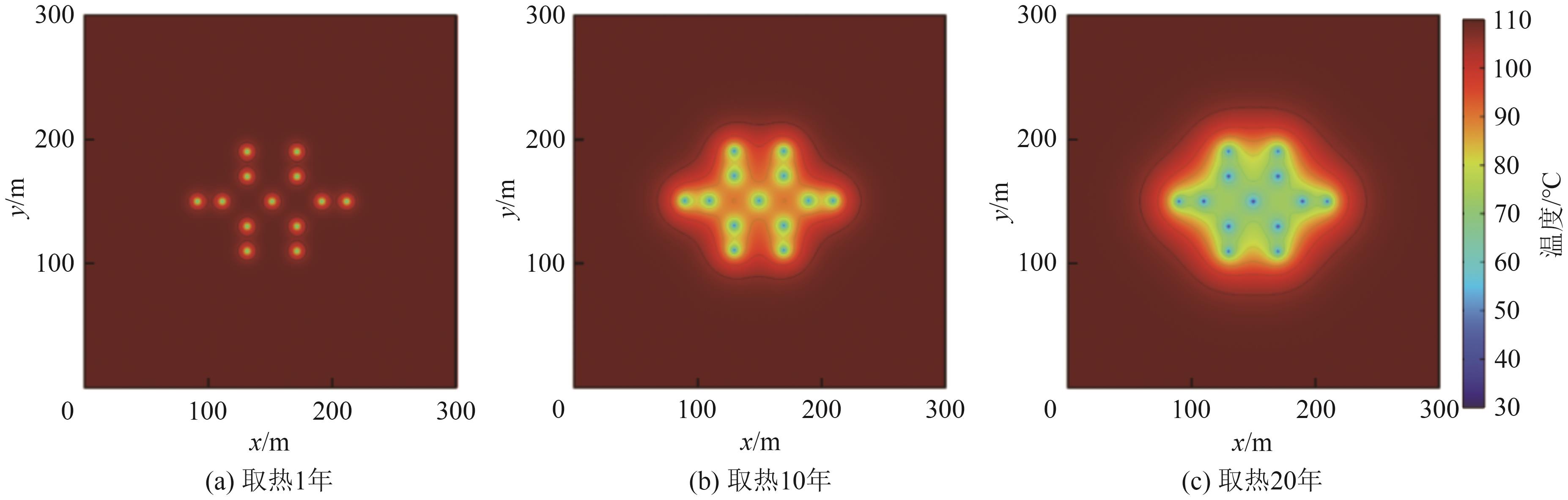

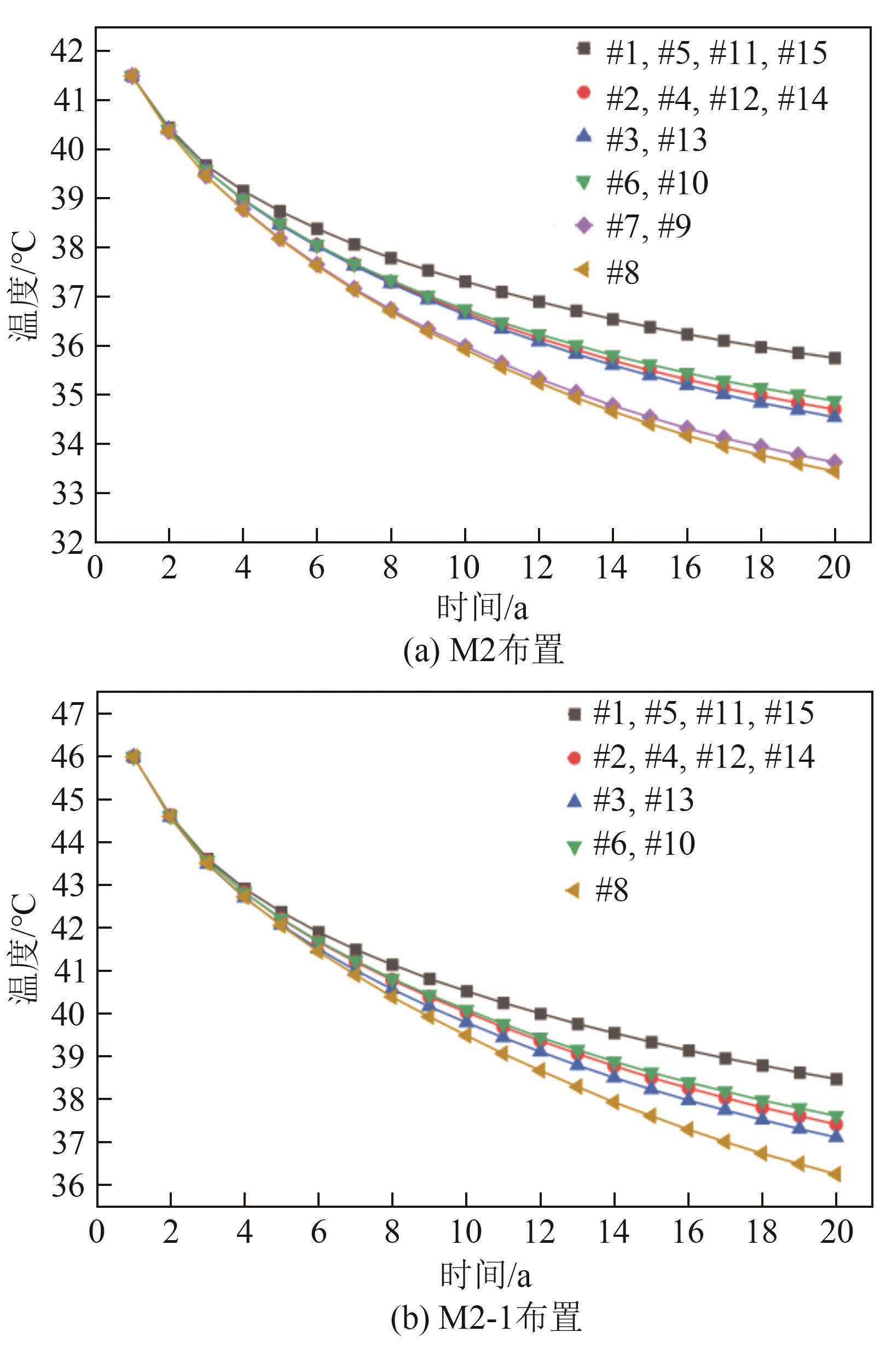

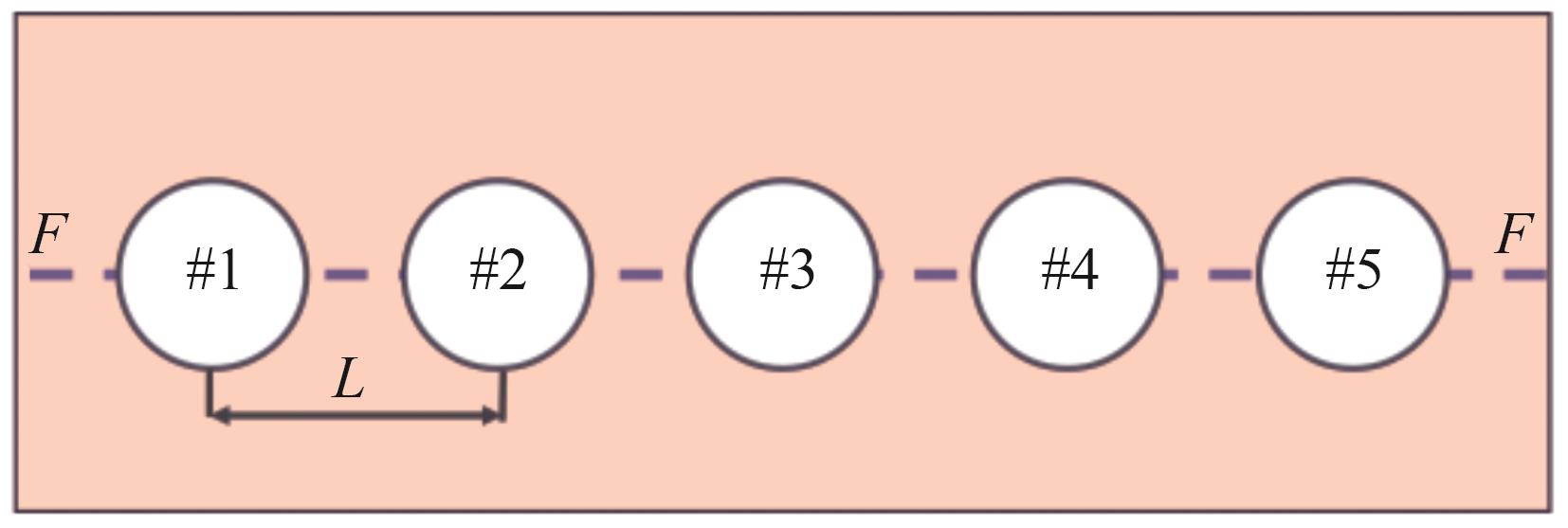

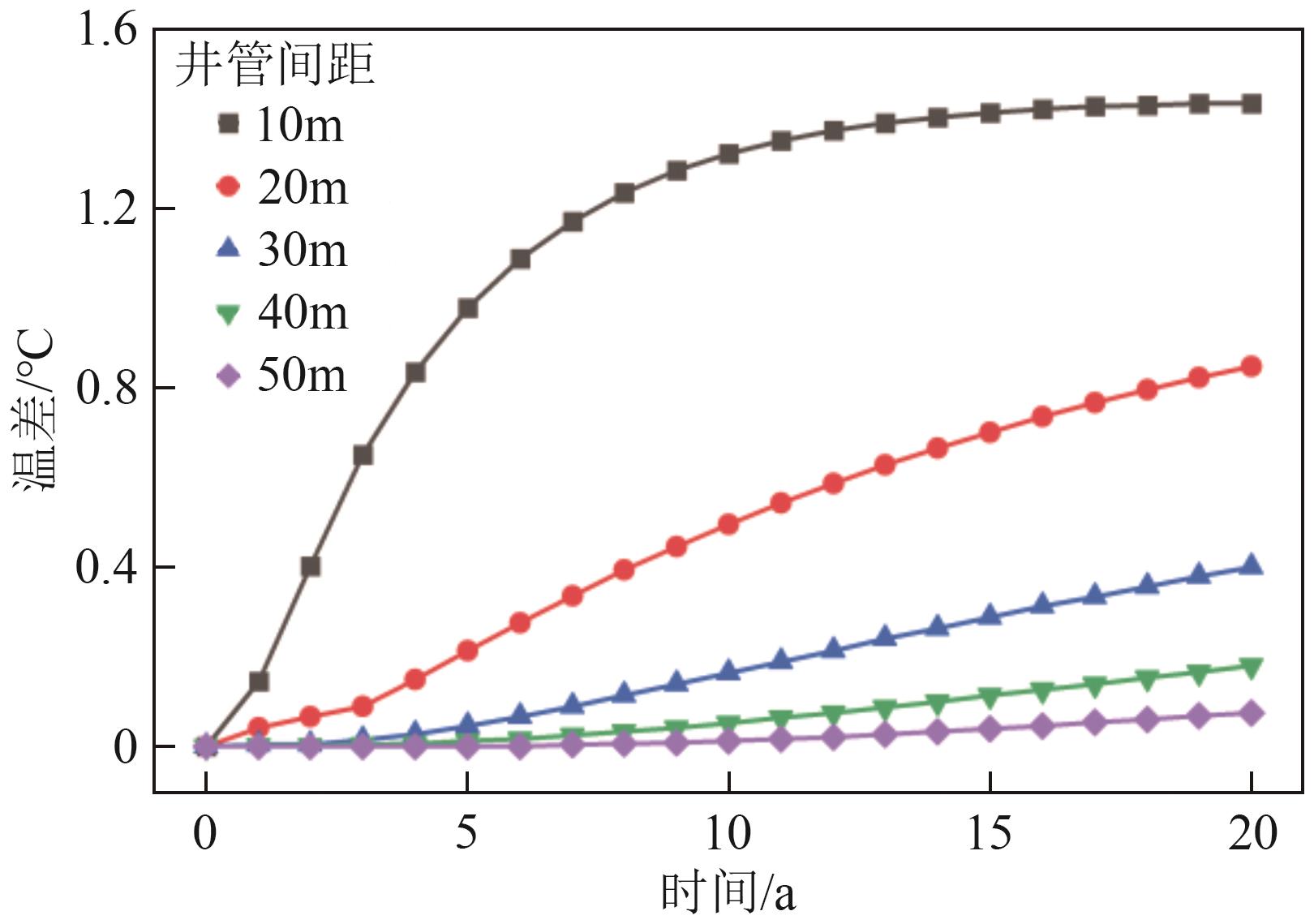

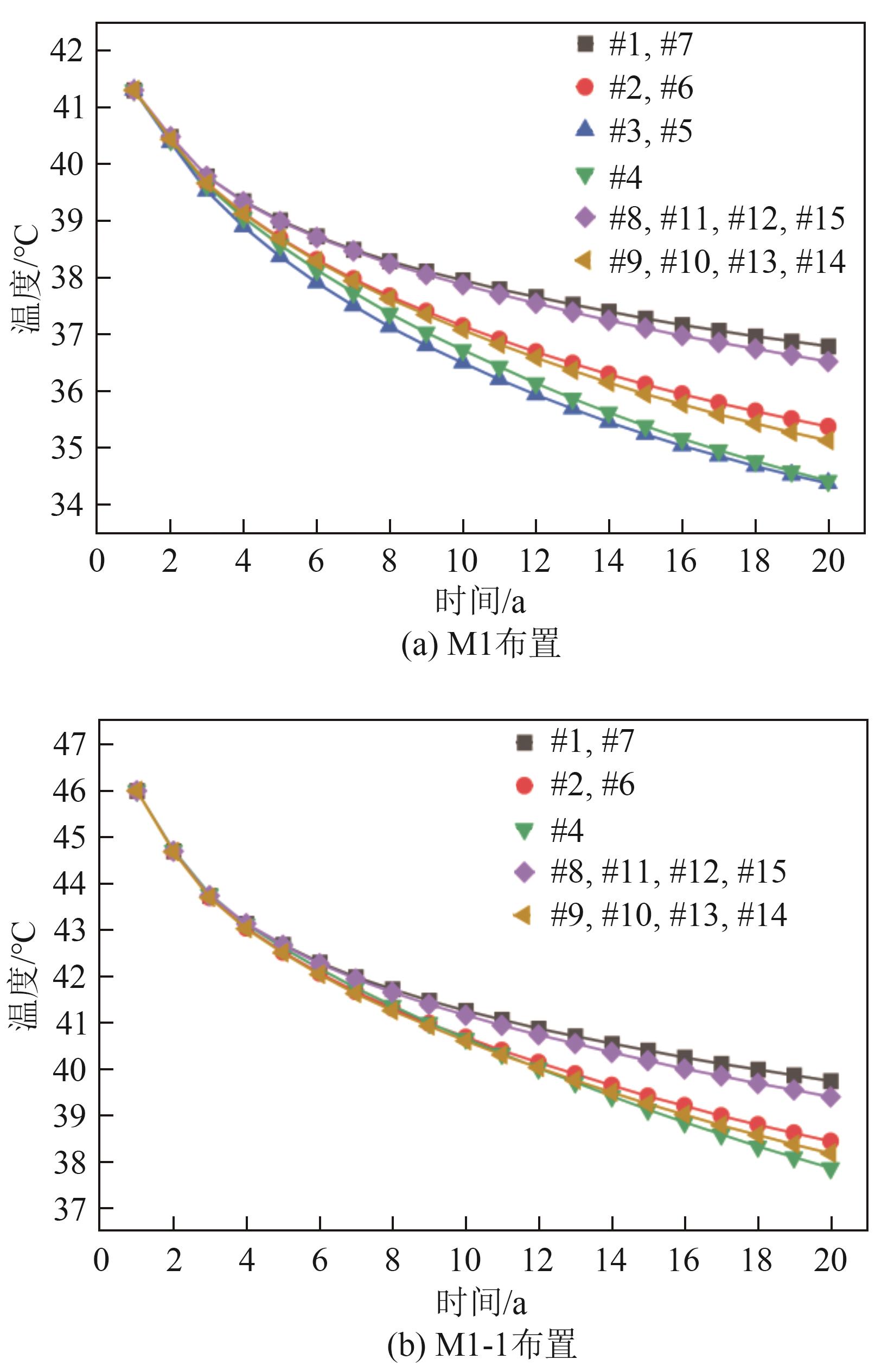

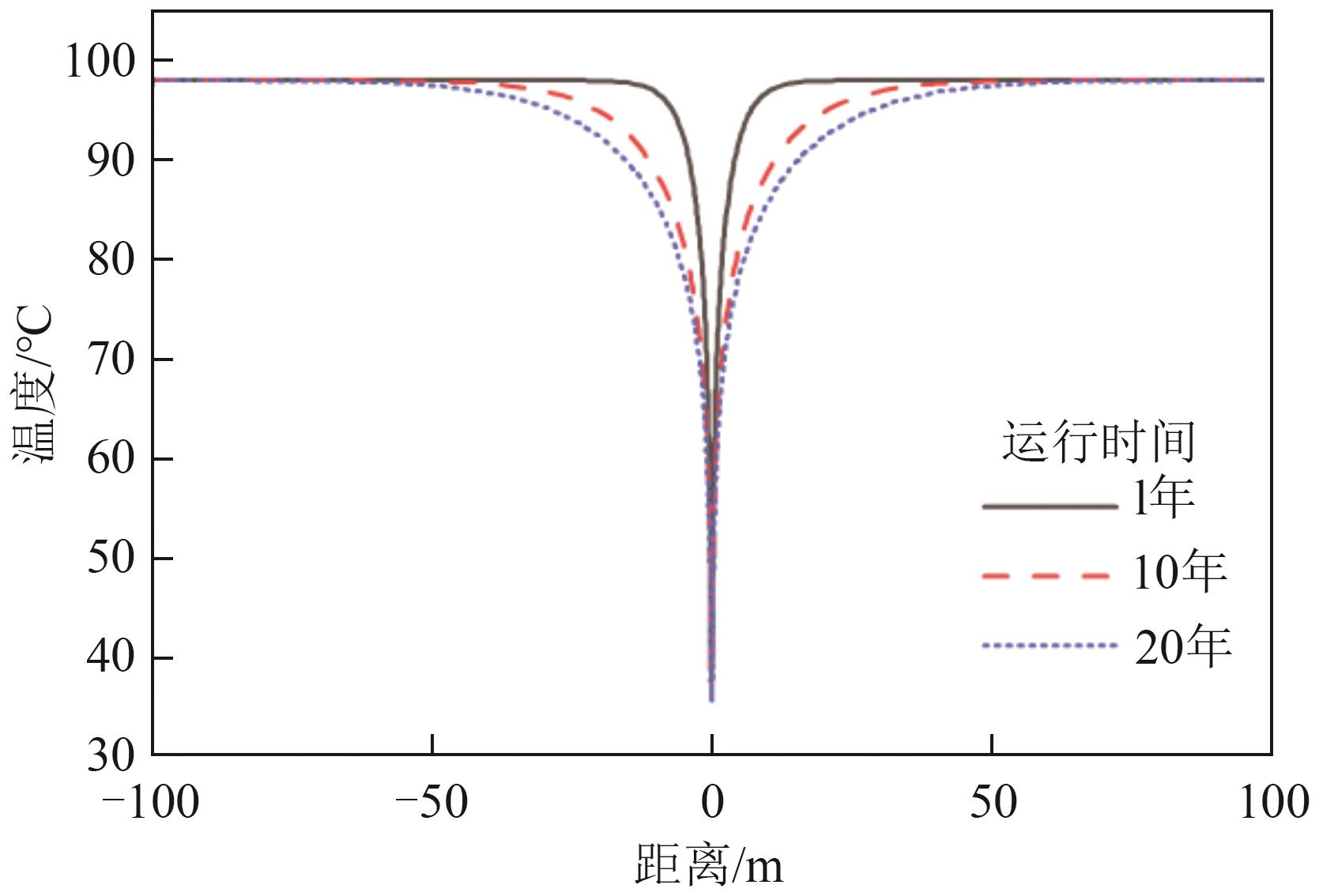

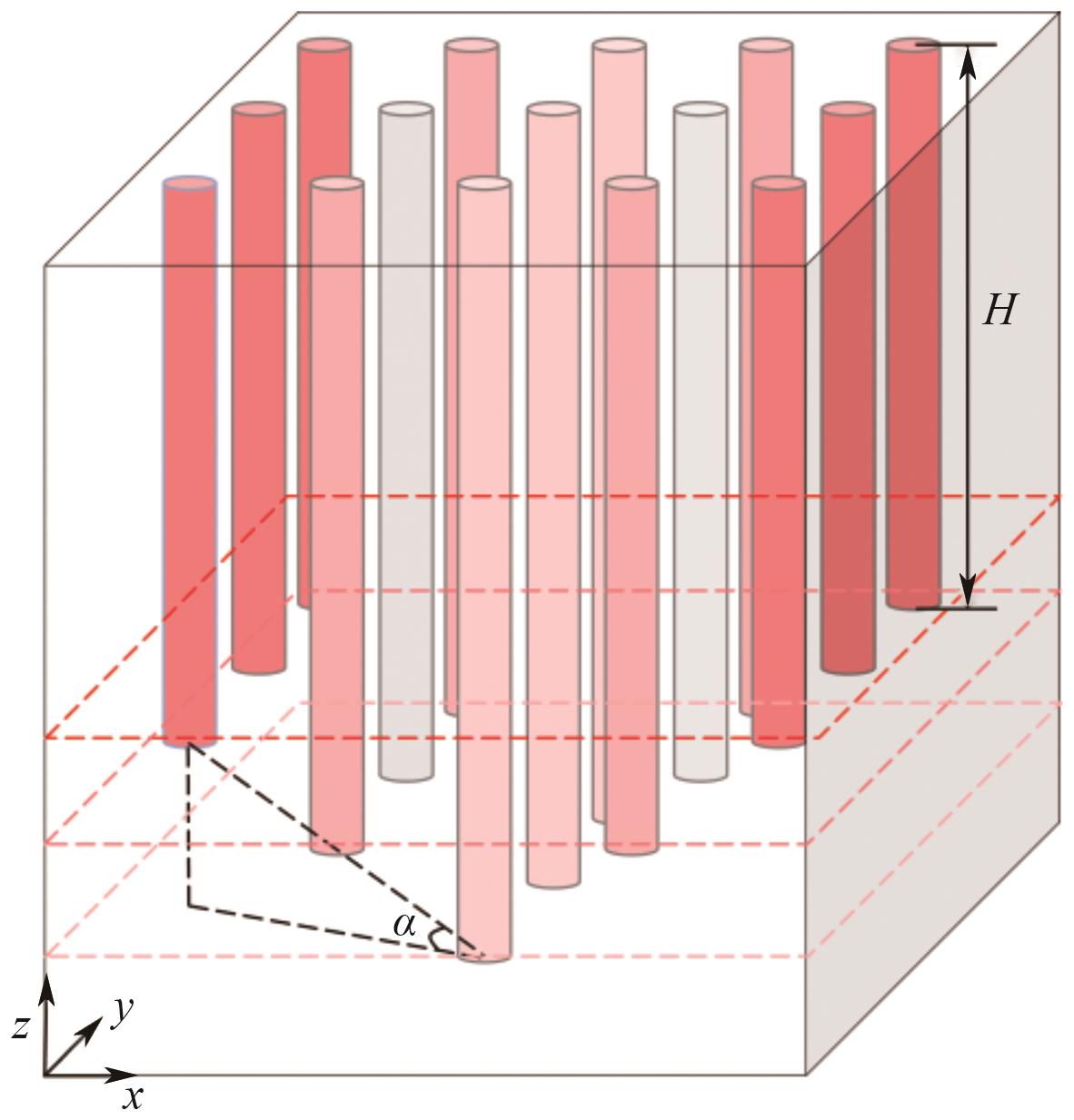

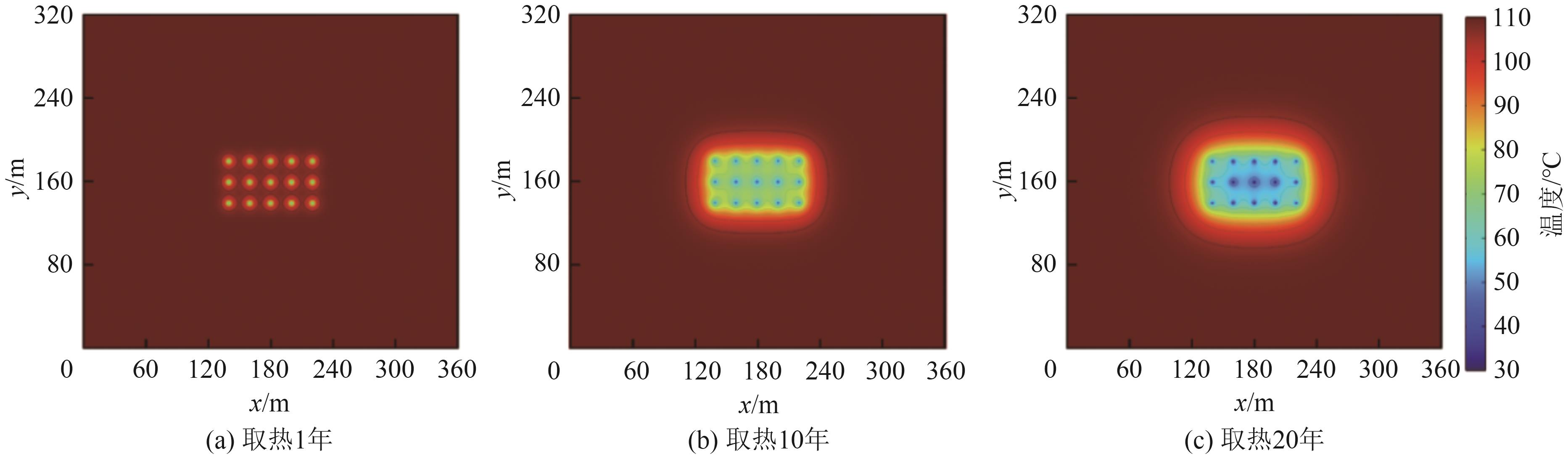

In order to study the influence of different arrangement forms and well pipe spacing of coaxial casing type deep borehole heat exchangers (DBHEs) on the heat extraction performance, under the condition of equal total buried pipe length, COMSOL Multiphysics 6.2 was used for numerical simulation for equal depth arrangement and unequal depth arrangement. The heat extraction effects of three arrangement modes of well pipe cross-line arrangement, well pipe rectangular arrangement and well pipe circular arrangement after 20 years of operation were compared and analyzed. The results indicated there were some differences in the influence of different well pipe arrangements of DBHEs on the heat extraction performance, whether it was equal depth arrangements or unequal depth layout. The cross-line arrangement showed the least decline in outlet water temperature and heat extraction capacity, followed by the rectangular arrangement, while the circular arrangement exhibited the greatest decline. By strategically removing some boreholes in the "cold accumulation" region, the heat extraction capacity of the DBHEs could be effectively enhanced in both equal depth and unequal depth setups. Compared to the equal depth setup, the unequal depth setup with an improved planar design could increase the heat extraction rate by up to 24.59% for the rectangular arrangement, 24.36% for the cross-line arrangement, and only 13.04% for the circular arrangement. The results of this study have certain theoretical guiding significance for the design of pipe arrays.

Key words: middle-deep geothermal energy, pipe array, layout form, unequal depth, heat conduction, numerical simulation

摘要：

为研究同轴套管式地埋管换热器管群（DBHEs）的不同布置形式及井管间距对管群取热性能的影响规律，在总埋管长度相等的条件下，针对等深布置和非等深布置情况，使用COMSOL Multiphysics 6.2进行数值模拟，分别对比分析了井管交叉线形排列、井管矩形排列和井管圆形排列3种井管排列方式的管群运行20年后的取热效果。结果表明：无论是等深布置还是非等深布置，DBHE的不同井管布置形式对地埋管取热性能的影响存在一定差异。交叉线形排列时各地埋管出口水温和取热功率衰减最小，其次为矩形排列，圆形排列方式衰减最大。根据“冷堆积”区域范围有针对性地移除部分井管，在等深布置和非等深布置情况下均可有效提升管群的取热能力。与等深布置相比，改进平面布置后的非等深布置，矩形排列取热量提升率可达24.59%，交叉线形排列提升率可达24.36%，而圆形排列仅为13.04%。本文研究结果对于管群设计具有一定的理论指导意义。

关键词: 中深层地热, 管群, 布置形式, 非等深, 热传导, 数值模拟

CLC Number:

TK529

ZHANG Qiqiang, WANG Ye, LIU Hengjian, ZHANG Luyu, LU Zhi, HENG Zixin. Impact of unequal depth arrangement on heat extraction performance of middle-deep borehole heat exchanger array[J]. Chemical Industry and Engineering Progress, 2025, 44(12): 6859-6871.

张期强, 王烨, 刘亨坚, 张露予, 鲁贽, 恒子欣. 中深层地热管群非等深布置对取热性能的影响[J]. 化工进展, 2025, 44(12): 6859-6871.

Figures/Tables 22

References 25

[1]	GAO Tianyi, LONG Xiting, XIE Heping, et al. A review of advances and applications of geothermal energy extraction using a gravity-assisted heat pipe[J]. Geothermics, 2024, 116: 102856.
[2]	LI Yongyi, Ghaffar ALI, REHMAN AKBAR Abdul. Advances in geothermal energy prospectivity mapping research based on machine learning in the age of big data[J]. Sustainable Energy Technologies and Assessments, 2023, 60: 103550.
[3]	HE Yuting, JIA Min, LI Xiaogang, et al. Performance analysis of coaxial heat exchanger and heat-carrier fluid in medium-deep geothermal energy development[J]. Renewable Energy, 2021, 168: 938-959.
[4]	XU Yishuo, GUO Yanlong, WANG Huajun, et al. Influences of seasonal changes of the ground temperature on the performance of ground heat exchangers embedded in diaphragm walls: A cold climate case from North China[J]. Renewable Energy, 2023, 217: 119225.
[5]	LIN Fei, REN Honglei, WEI Ting, et al. Geothermal dynamic constraints of groundwater source heat pump system in shallow aquifers[J]. Frontiers in Energy Research, 2023, 10: 928125.
[6]	CHENG Nan, ZHOU Chaohui, LUO Yongqiang, et al. Thermal behavior and performance of shallow-deep-mixed borehole heat exchanger array for sustainable building cooling and heating[J]. Energy and Buildings, 2023, 291: 113108.
[7]	GAO Yulin, KONG Lingrong, WANG Yu, et al. Optimised design of downhole turbodrills with bending-torsional tilting blade[J]. Geoenergy Science and Engineering, 2024, 234: 212661.
[8]	EZZAT Mohamed, ADAMS Benjamin M, SAAR Martin O, et al. Numerical modeling of the effects of pore characteristics on the electric breakdown of rock for plasma pulse geo drilling[J]. Energies, 2022 15(1): 250.
[9]	LI Jianwei, BAO Lingling, NIU Guoqing, et al. Research on renewable energy coupling system based on medium-deep ground temperature attenuation[J]. Applied Energy, 2024, 353: 122187.
[10]	GULTEKIN Ahmet, AYDIN Murat, SISMAN Altug. Thermal performance analysis of multiple borehole heat exchangers[J]. Energy Conversion and Management, 2016, 122: 544-551.
[11]	CHEN Shuang, WITTE Francesco, KOLDITZ Olaf, et al. Shifted thermal extraction rates in large borehole heat exchanger array—A numerical experiment[J]. Applied Thermal Engineering, 2020, 167: 114750.
[12]	ZHANG Fangfang, YU Mingzhi, SØRENSEN Bjørn R, et al. Heat extraction capacity and its attenuation of deep borehole heat exchanger array[J]. Energy, 2022, 254: 124430.
[13]	WANG Ye, LIU Hengjian, ZHANG Qiqiang, et al. Thermal performance analysis of a deep coaxial borehole heat exchanger with a horizontal well based on a novel semi-analytical model[J]. Renewable Energy, 2025, 239: 122073.
[14]	CAI Wanlong, WANG Fenghao, CHEN Shuang, et al. Analysis of heat extraction performance and long-term sustainability for multiple deep borehole heat exchanger array: A project-based study[J]. Applied Energy, 2021, 289: 116590.
[15]	LIU Wenjie, YAO Jian, JIA Teng, et al. The long-term operation and thermal disturbance investigation on a four-borehole-heat-exchanger residential heating system[J]. Applied Thermal Engineering, 2023, 219: 119449.
[16]	DENG Jiewen, WEI Qingpeng, HE Shi, et al. Simulation analysis on the heat performance of deep borehole heat exchangers in medium-depth geothermal heat pump systems[J]. Energies, 2020, 13(3): 754.
[17]	CAI Wanlong, WANG Fenghao, CHEN Chaofan, et al. Long-term performance evaluation for deep borehole heat exchanger array under different soil thermal properties and system layouts[J]. Energy, 2022, 241: 122937.
[18]	BROWN Christopher S, KOLO Isa, FALCONE Gioia, et al. Investigating scalability of deep borehole heat exchangers: Numerical modelling of arrays with varied modes of operation[J]. Renewable Energy, 2023, 202: 442-452.
[19]	DENG Jiewen, PENG Chenwei, SU Yangyang, et al. Research on the long-term operation performance of deep borehole heat exchangers array: Thermal attenuation and maximum heat extraction capacity[J]. Energy and Buildings, 2023, 298: 113511.
[20]	WANG Kexun, ZHANG Wenke, DING Guoyu, et al. Analysis of the factors influencing heat transfer and control strategy optimization for medium-shallow array borehole heat exchangers[J]. Applied Thermal Engineering, 2024, 244: 122788.
[21]	陈宏飞, 杨富鑫, 谭厚章, 等. 中深层地热地埋管管群换热性能模拟和布置优化[J]. 化工进展, 2024, 43(3): 1241-1251.
	CHEN Hongfei, YANG Fuxin, TAN Houzhang, et al. Heat transfer performance simulation and optimization of deep borehole heat exchanger array[J]. Chemical Industry and Engineering Progress, 2024, 43(3): 1241-1251.
[22]	王荣. 单U型埋管和管群换热及其热泵系统运行特性研究[D]. 哈尔滨: 哈尔滨工业大学, 2021.
	WANG Rong. Research on heat transfer and system operation characteristics of single U-type buried pipe and its group[D]. Harbin: Harbin Institute of Technology, 2021.
[23]	曹寿裕. 地源热泵地埋管管群布置形式的优化[D]. 武汉: 华中科技大学, 2021.
	CAO Shouyu. Optimization of the layout of the ground heat exchanger system of ground source heat pump[D]. Wuhan: Huazhong University of Science and Technology, 2021.

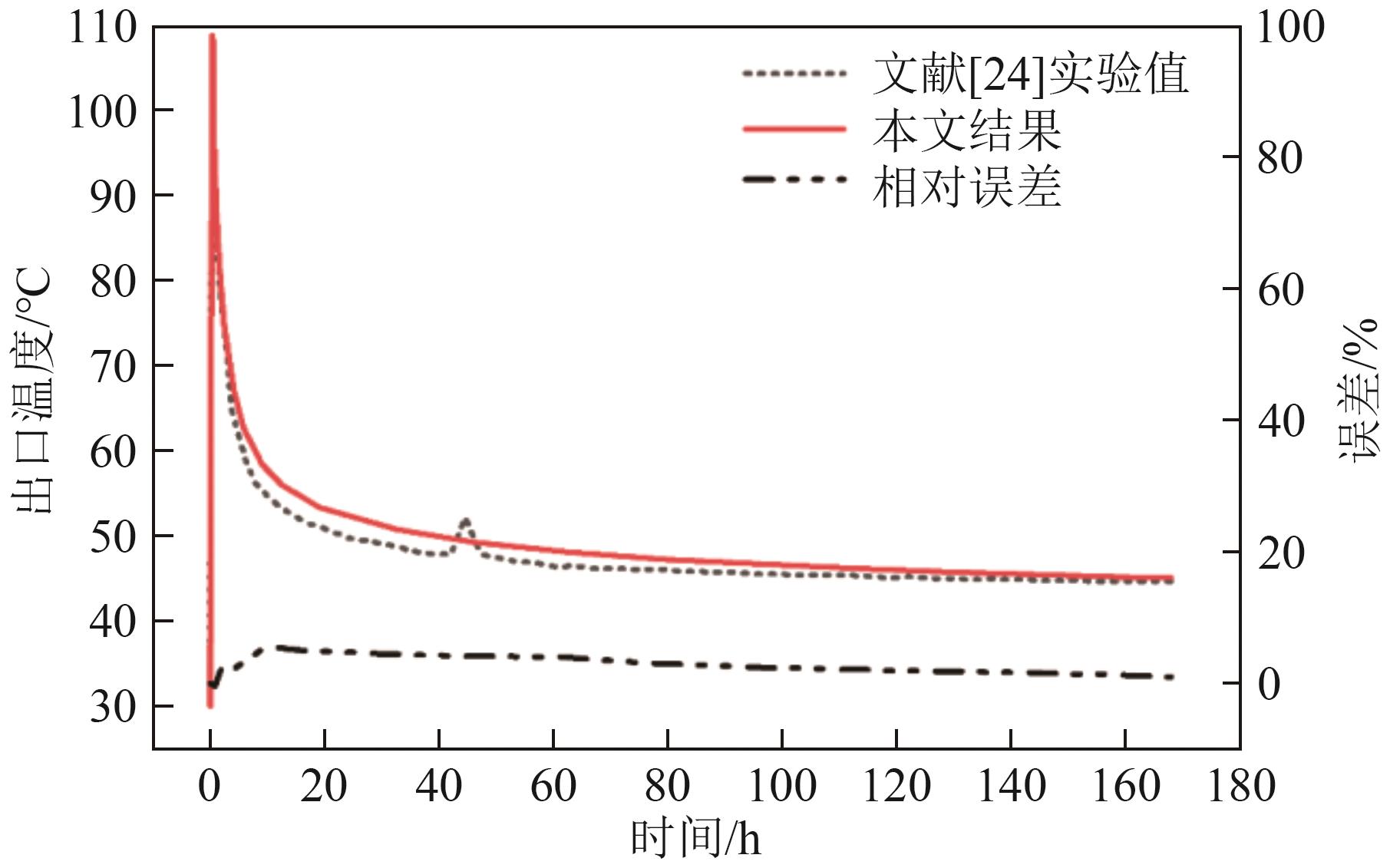

[24]	MORITA Koji, BOLLMEIER Warren S, MIZOGAMI Husanobu. An experiment to prove the concept of the downhole coaxial heat exchanger (DCHE) in Hawaii[J]. Geothermal Resources Council Transactions, 1992, 16: 9-16.
[25]	杨心柳, 刘强, 曹倩, 等. 储层渗流对单地热井同轴换热器取热特性的影响[J]. 化工进展, 2025, 44(7): 3860-3868.
	YANG Xinliu, LIU Qiang, CAO Qian, et al. Effect of reservoir seepage on heat extraction characteristics of coaxial heat exchangers in single geothermal wells[J]. Chemical Industry and Engineering Progress, 2025, 44(7): 3860-3868

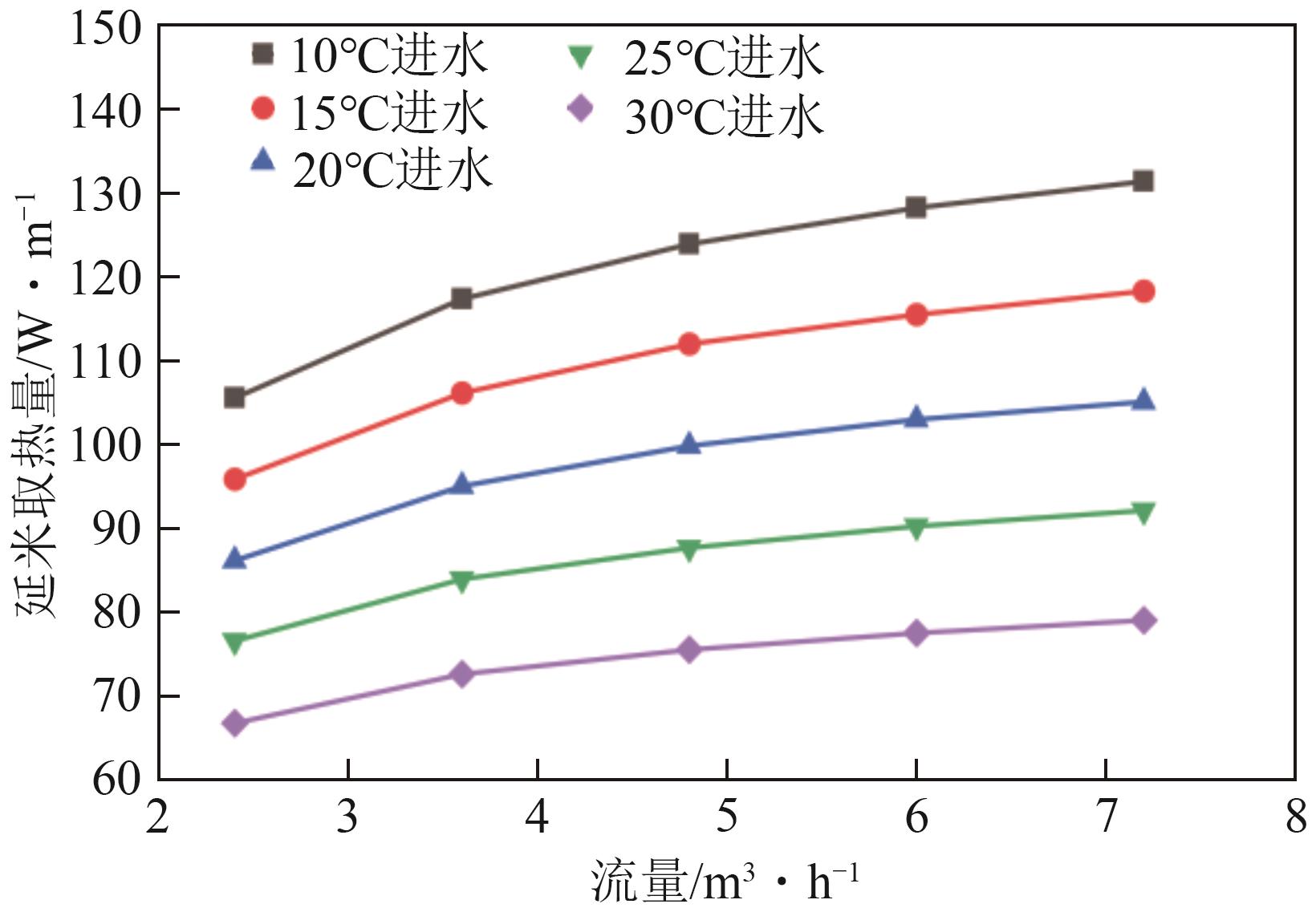

参数	数值
井深度/m	880
外管外径/cm	17.78
外管壁厚/cm	0.90
内管外径/cm	8.90
内管壁厚/cm	1.92
循环流量/m³·h^-1	4.8
外管热导率/W·m^-1·K^-1	46.1
内管热导率/W·m^-1·K^-1	0.02
地层热导率/W·m^-1·K^-1	1.60
地层比热容/ kJ·kg^-1·K^-1	0.87
地层密度/kg·m^-3	3050
入口温度/℃	30

参数	数值
井深度/m	880
外管外径/cm	17.78
外管壁厚/cm	0.90
内管外径/cm	8.90
内管壁厚/cm	1.92
循环流量/m³·h^-1	4.8
外管热导率/W·m^-1·K^-1	46.1
内管热导率/W·m^-1·K^-1	0.02
地层热导率/W·m^-1·K^-1	1.60
地层比热容/ kJ·kg^-1·K^-1	0.87
地层密度/kg·m^-3	3050
入口温度/℃	30

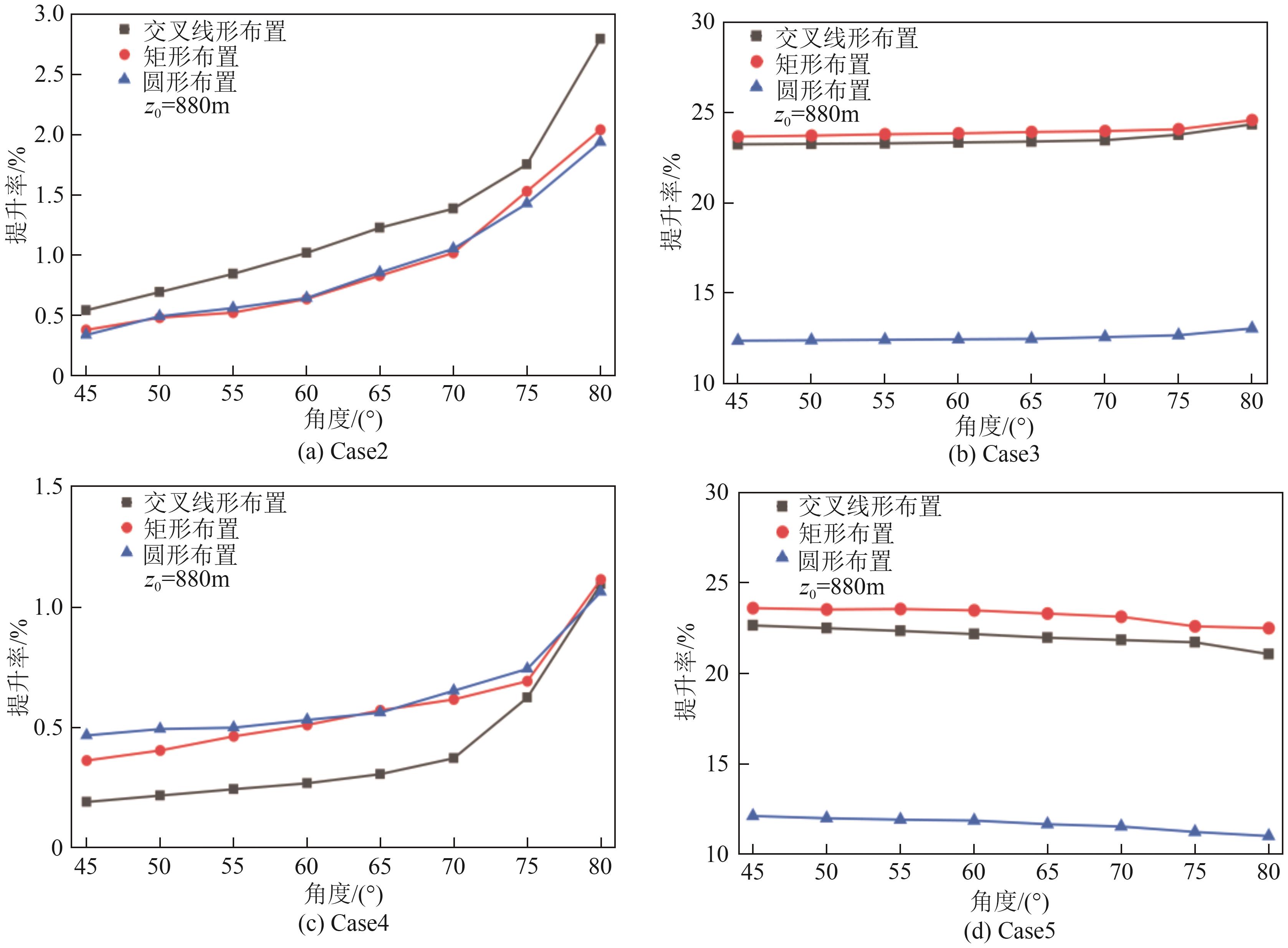

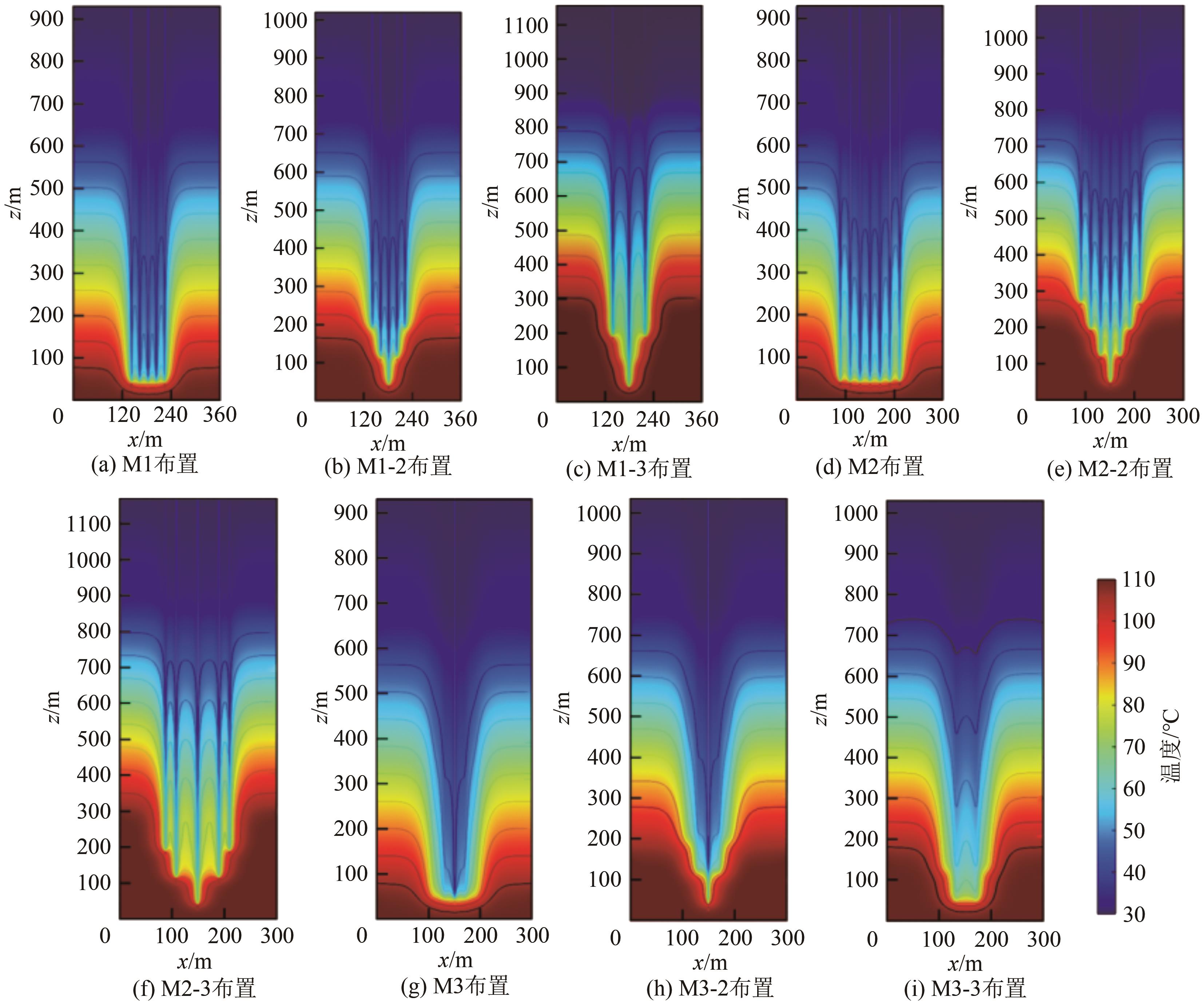

案例	布置方案	具体布置形式	取热量提升率
Case1	基础布置	等深布置（M1、M2和M3）	矩形排列更优，提升率为23.22%
Case1	改进布置	等深布置移除部分埋管（M1-1、M2-1和M3-1）	矩形排列更优，提升率为23.22%
Case2	基础布置	等深布置（M1、M2和M3）	α=80°时，交叉线形排列最优，提升率为2.79%
Case2	改进布置	非等深布置（M1-2、M2-2和M3-2）	α=80°时，交叉线形排列最优，提升率为2.79%
Case3	基础布置	等深布置（M1、M2和M3）	α=80°时，矩形排列最优，提升率为24.59%
Case3	改进布置	非等深布置移除部分埋管（M1-3、M2-3和M3-3）	α=80°时，矩形排列最优，提升率为24.59%
Case4	基础布置	等深布置移除部分埋管（M1-1、M2-1和M3-1）	α=80°时，矩形排列最优，提升率为1.11%
Case4	改进布置	非等深布置移除部分埋管（M1-3、M2-3和M3-3）	α=80°时，矩形排列最优，提升率为1.11%
Case5	基础布置	非等深布置（M1-2、M2-2和M3-2）	α=45°时，矩形排列最优，提升率为23.6%
Case5	改进布置	非等深布置移除部分埋管（M1-3、M2-3和M3-3）	α=45°时，矩形排列最优，提升率为23.6%

案例	布置方案	具体布置形式	取热量提升率
Case1	基础布置	等深布置（M1、M2和M3）	矩形排列更优，提升率为23.22%
Case1	改进布置	等深布置移除部分埋管（M1-1、M2-1和M3-1）	矩形排列更优，提升率为23.22%
Case2	基础布置	等深布置（M1、M2和M3）	α=80°时，交叉线形排列最优，提升率为2.79%
Case2	改进布置	非等深布置（M1-2、M2-2和M3-2）	α=80°时，交叉线形排列最优，提升率为2.79%
Case3	基础布置	等深布置（M1、M2和M3）	α=80°时，矩形排列最优，提升率为24.59%
Case3	改进布置	非等深布置移除部分埋管（M1-3、M2-3和M3-3）	α=80°时，矩形排列最优，提升率为24.59%
Case4	基础布置	等深布置移除部分埋管（M1-1、M2-1和M3-1）	α=80°时，矩形排列最优，提升率为1.11%
Case4	改进布置	非等深布置移除部分埋管（M1-3、M2-3和M3-3）	α=80°时，矩形排列最优，提升率为1.11%
Case5	基础布置	非等深布置（M1-2、M2-2和M3-2）	α=45°时，矩形排列最优，提升率为23.6%
Case5	改进布置	非等深布置移除部分埋管（M1-3、M2-3和M3-3）	α=45°时，矩形排列最优，提升率为23.6%
