Startup and operating characteristics of self-driven rotary energy recovery device

doi:10.16085/j.issn.1000-6613.2024-1824

Abstract

Abstract:

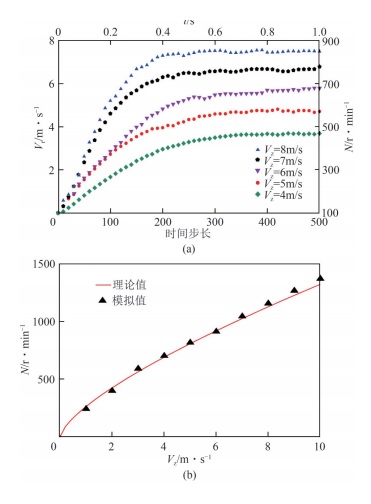

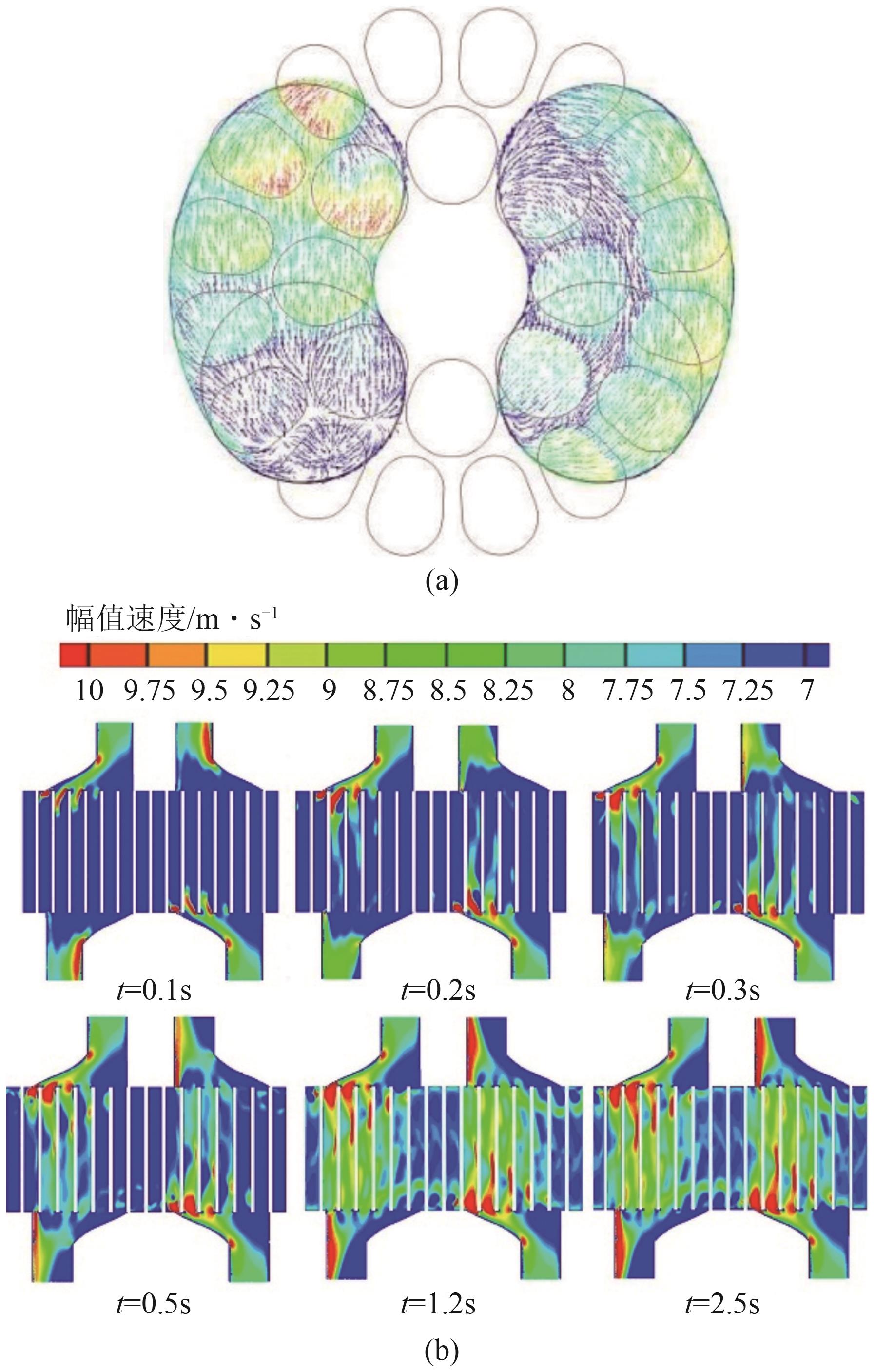

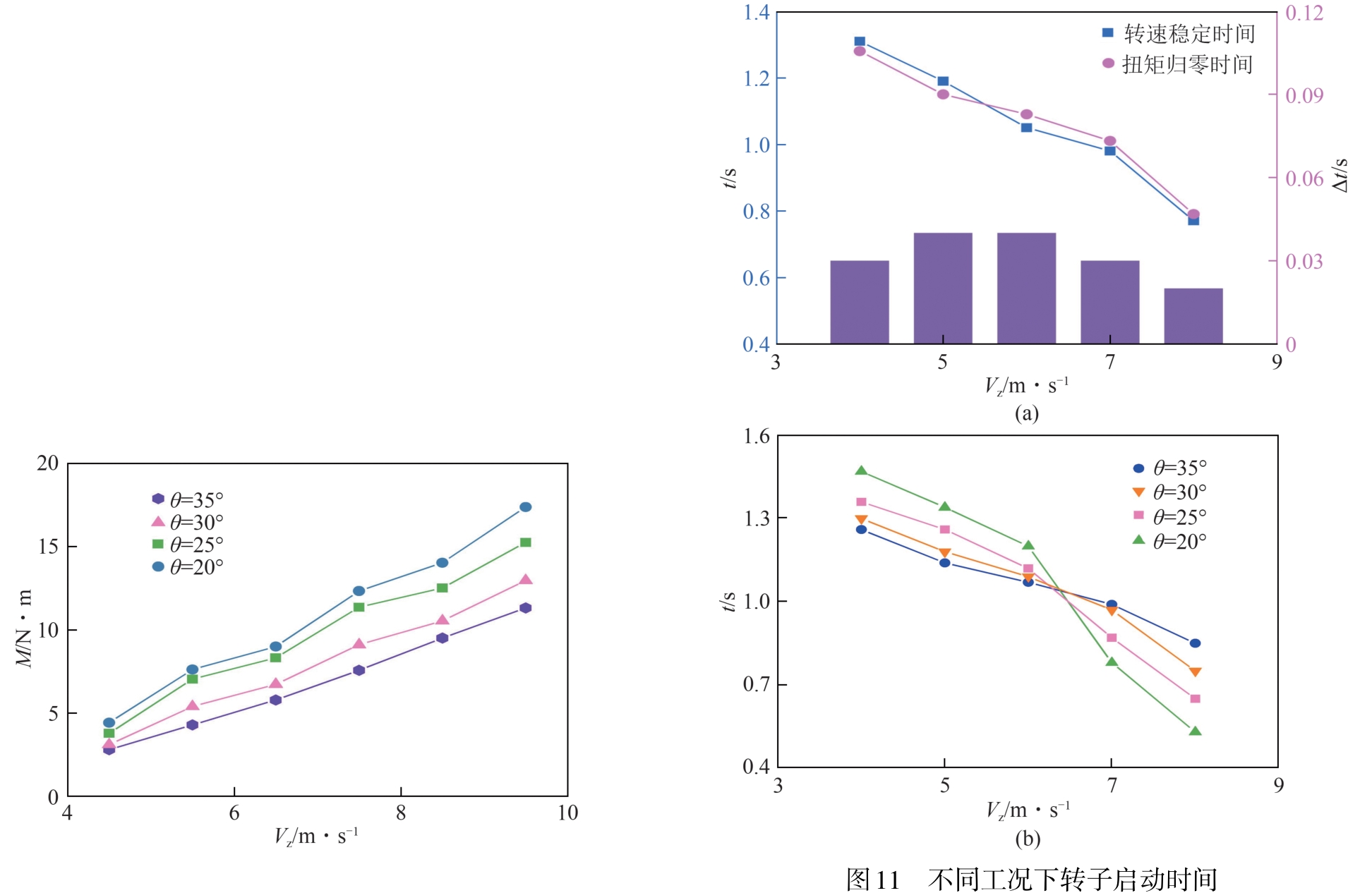

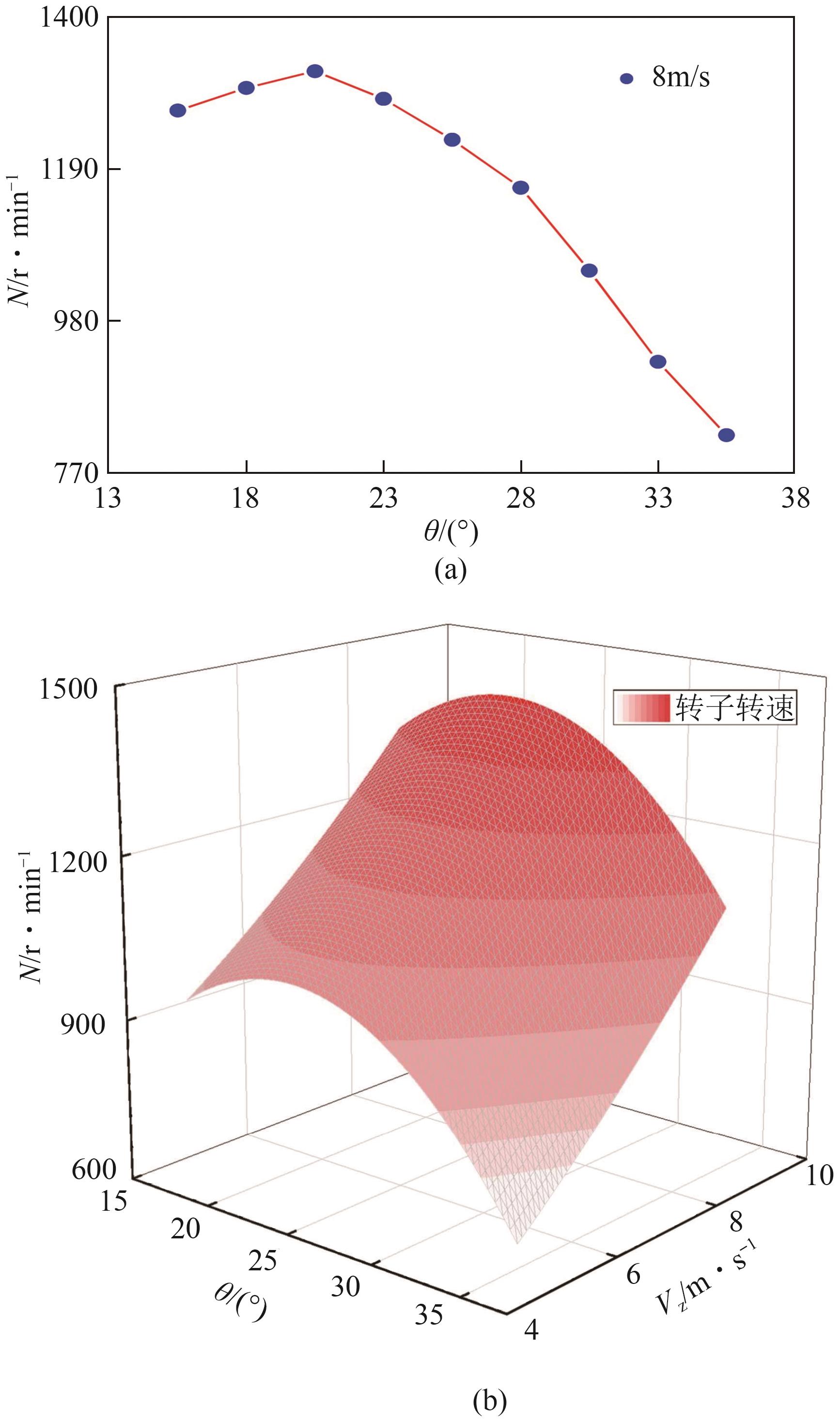

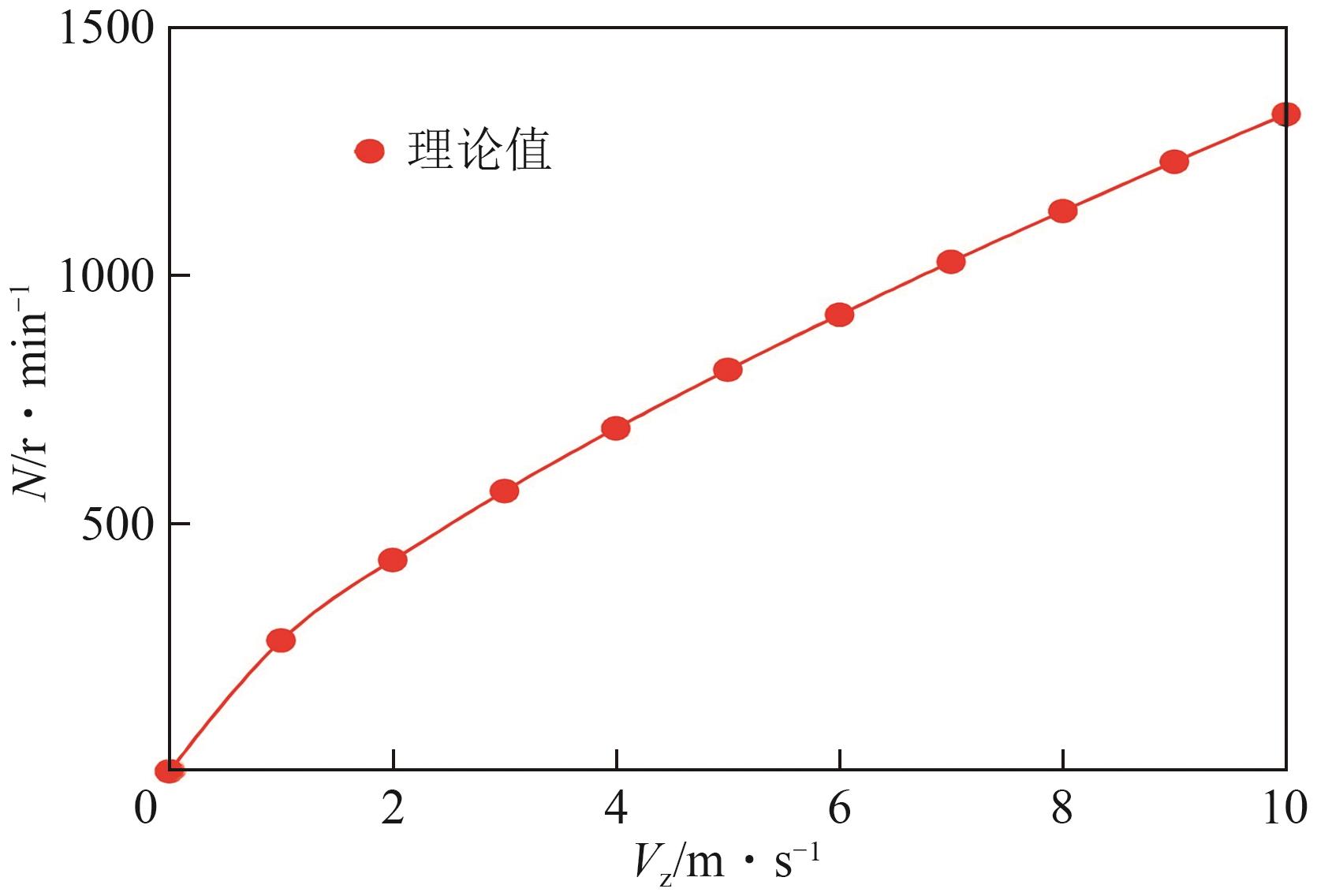

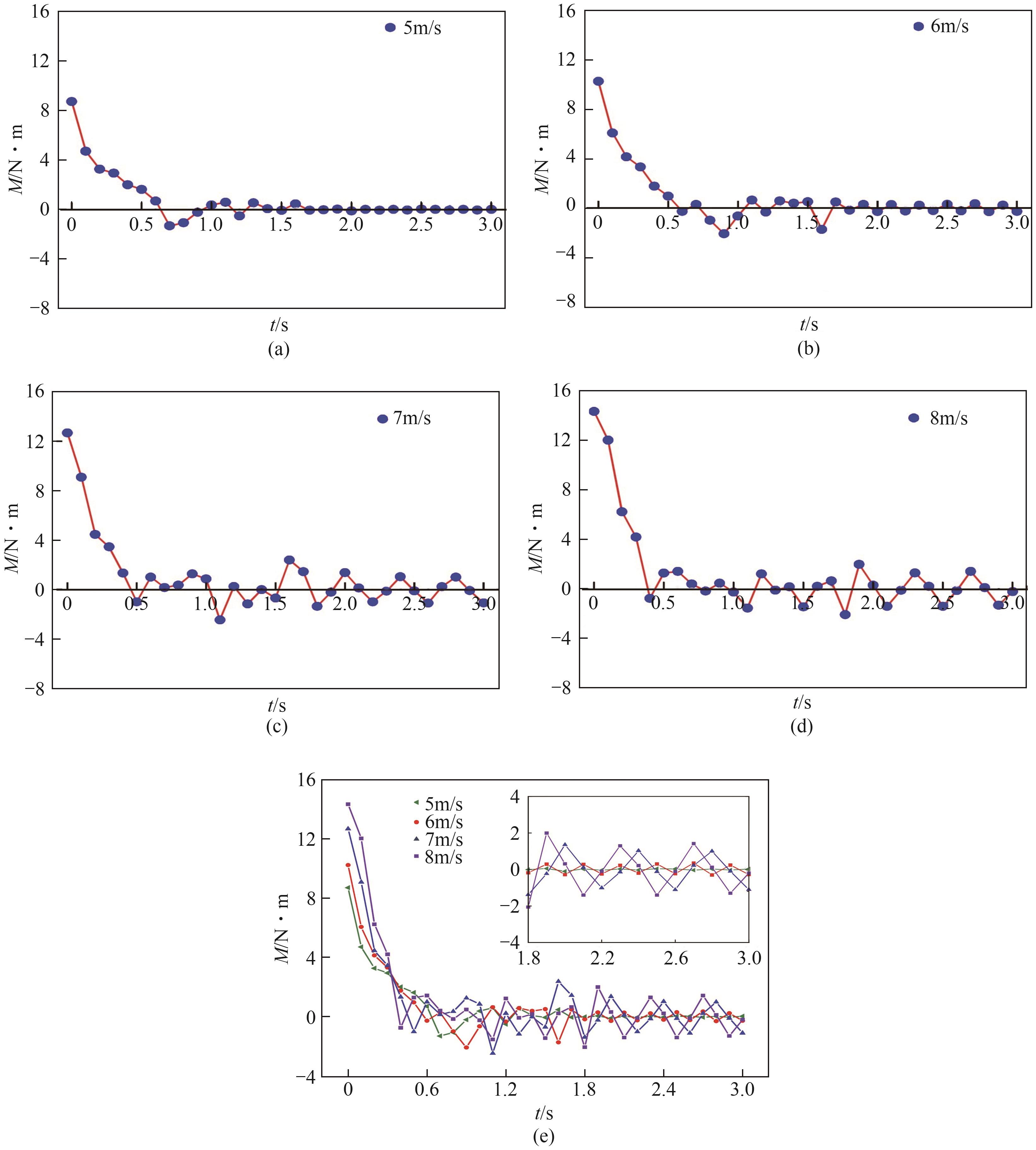

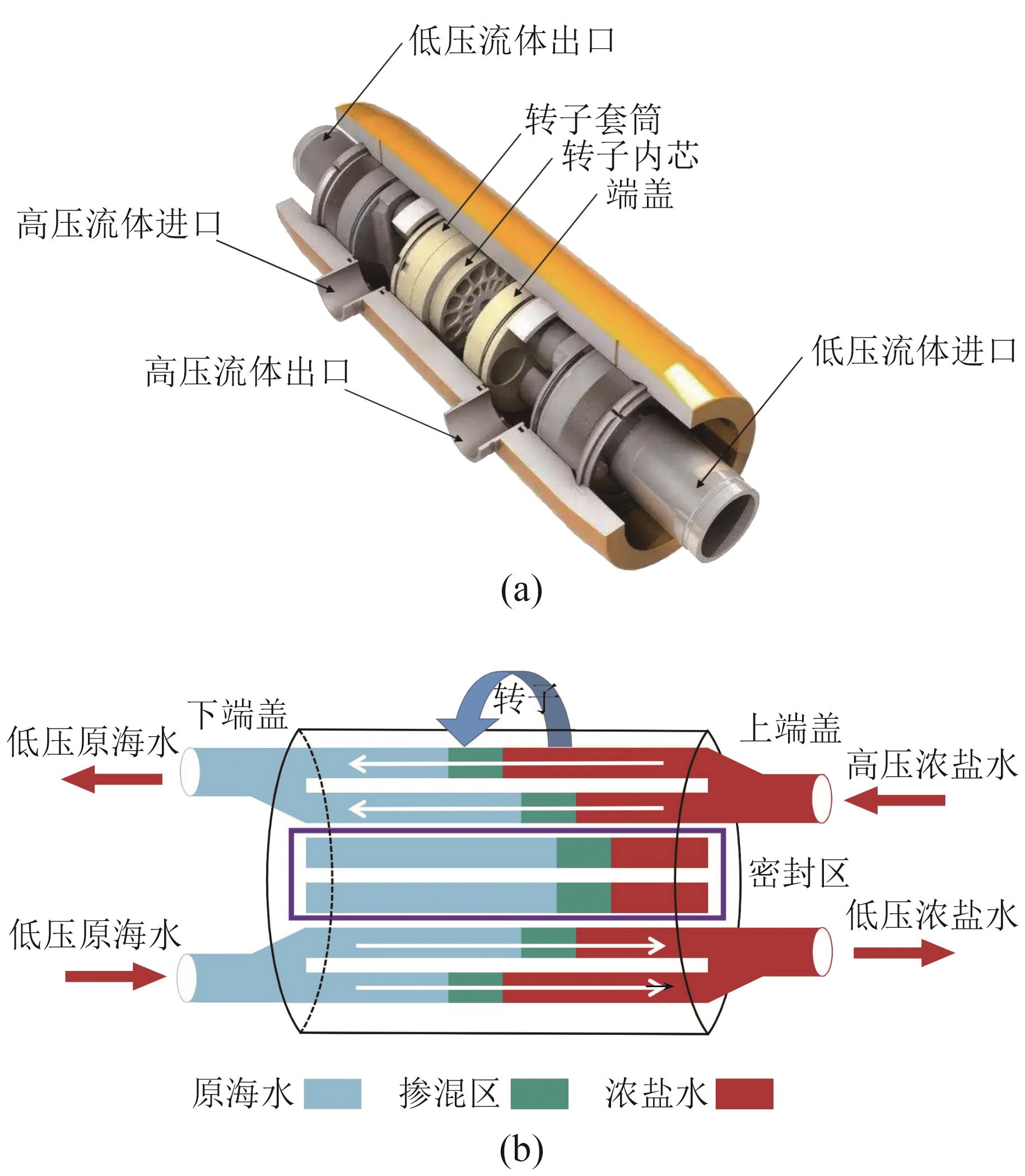

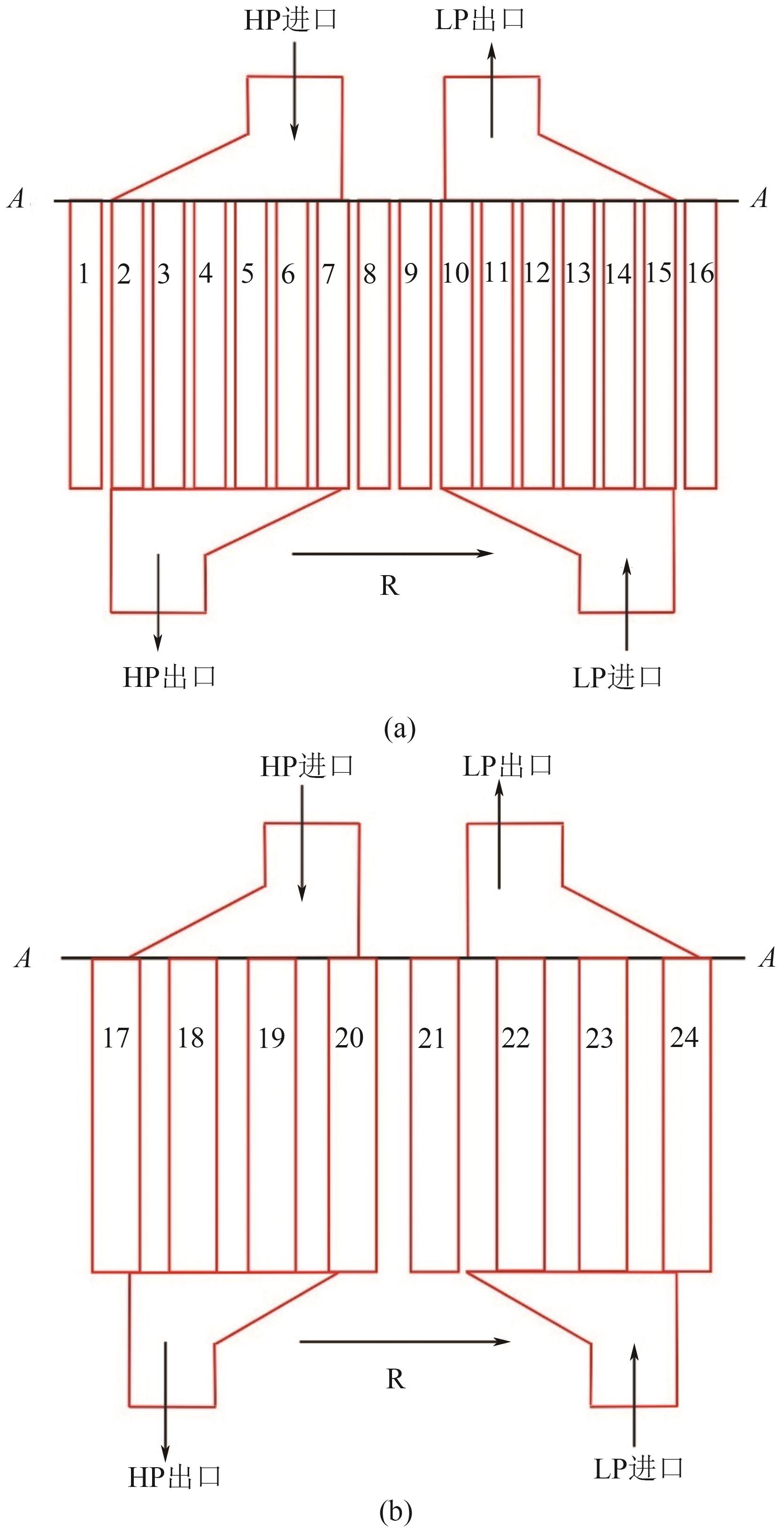

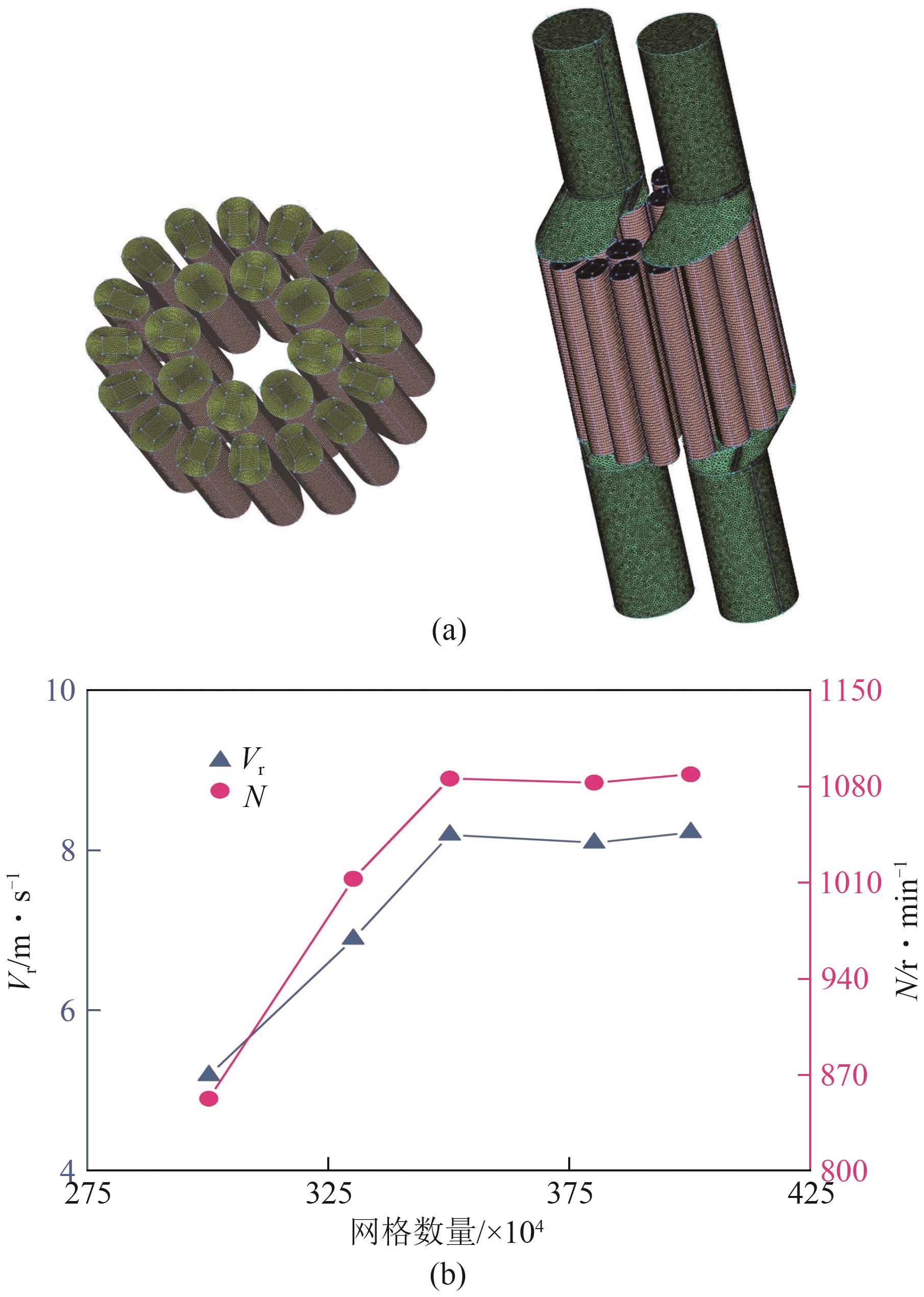

In the reverse osmosis seawater desalination technology, energy recovery devices are essential equipment. Unfortunately, currently there exists a paucity of research concerning the design, startup, and operational characteristics of the self-driven rotary energy recovery devices. This study initially conducted a theoretical derivation of the rotor speed variation during the startup process and established a relationship between the inlet flow velocity and the rotor speed based on the principle of energy conservation. Three-dimensional numerical simulations for the flow field within the device were conducted, and it was found that the rotor stable speed increased with the increase in inlet flow velocity. When the guide vane angle was in 20°—35°, the rotor speed rose as the angle decreased. However, when the angle was further reduced to 15°—20°, the speed decreased slightly. The variation of rotor torque during rotor startup process was analyzed, revealing that the torque initially reached a maximum value and subsequently diminished to zero thereafter, exhibiting oscillatory characteristics. The rotor speed stabilization time was defined as the rotor startup time. This startup time decreased with increasing inlet flow velocity and exhibited significant variations at smaller guide vane angles. In specific, at a guide vane angle of 20°, the range of startup time was 0.85 seconds, whereas at an angle of 35°, it was 0.41 seconds. Selecting an end cap angle of 17° to 23° allowed the rotor to achieve higher rotational speeds and shorter startup times.

Key words: seawater desalination, energy recovery, rotor self-starting, fluid mechanics, numerical simulation

摘要：

在反渗透海水淡化技术中，能量回收装置是必不可少的设备，但目前对于自驱型旋转式能量回收装置的设计、启动以及运行特性等方面的研究报道较少。本文首先对转子启动过程中的转速变化进行了理论推导，基于能量守恒定律建立了进口流速与转子转速之间的关系式。对装置内部流场进行了三维数值模拟，发现转子稳定时的转速随进口流速增大而升高；导流槽倾角在20°~35°时转速随倾角减小而升高，但是当倾角减小至15°~20°时，转子转速呈小幅降低的趋势。分析了转子扭矩在启动过程中的变化特征，结果显示扭矩在初始状态下为最大值，随后不断减小至归零后呈现振荡特征。定义转子转速稳定时间为转子启动时间，其随进口流速增大而减小。当导流槽倾角达到17°~23°时，转子会达到较高的转速以及较短的转子启动时间。

关键词: 海水淡化, 能量回收, 转子自启动, 流体力学, 数值模拟

CLC Number:

TH326

GE Yiyang, SHEN Shengqiang, LIANG Gangtao. Startup and operating characteristics of self-driven rotary energy recovery device[J]. Chemical Industry and Engineering Progress, 2025, 44(12): 6779-6788.

葛祎阳, 沈胜强, 梁刚涛. 自驱型旋转式能量回收装置启动与运行特性[J]. 化工进展, 2025, 44(12): 6779-6788.

Figures/Tables 11

References 11

[12]	LIU Kai, ZHENG Lixing. Simulation investigation on the flow and mixing in ducts of the rotary energy recovery device[J]. GEOFLUIDS, 2020, 2020: 8822493.
[13]	LIU Kai, DENG Jianqiang, YANG Bing. Research on flow field of a fixed duct in a rotary energy recovery device[C]// ASME 2017 Fluids Engineering Division Summer Meeting. 2017.
[14]	WANG Xiaopeng, WANG Yue, WANG Jianping, et al. Comparative study on stand-alone and parallel operating schemes of energy recovery device for SWRO system[J]. Desalination, 2010, 254(1/2/3): 170-174.
[15]	YE Fanghua, BIANCHI Giuseppe, RANE Sham, et al. Numerical methodology and CFD simulations of a rotary vane energy recovery device for seawater reverse osmosis desalination systems[J]. Applied Thermal Engineering, 2021, 190: 116788.
[16]	SUN Jiaxi, WANG Yue, XU Shichang, et al. Performance prediction of hydraulic energy recovery (HER) device with novel mechanics for small-scale SWRO desalination system[J]. Desalination, 2009, 249(2): 667-671.
[17]	CAMERON Ian B, CLEMENTE Rodney B. SWRO with ERI’s PX pressure exchanger device—A global survey[J]. Desalination, 2008, 221(1/2/3): 136-142.
[18]	LIU Kai, LIU Xuyu, WU Lijuan, et al. Numerical investigation of the influence of a splitter plate on mixing transfer in the ducts of a rotary energy recovery device[J]. Journal of Marine Science and Engineering, 2023, 11(9): 1804.
[19]	CHELLOU Nassir, MOUDJEBER Djamel Eddine, MAHMOUDI Hacene, et al. A smart innovation in seawater desalination (ERI PX durability & corrosion resistance)[C]// METAL 2016: 25th Anniversary International Conference on Metallurgy and Materials. 2016: 969-976.
[20]	尹方龙, 汪阳, 贾国涛, 等. 反渗透海水淡化能量回收装置的研究现状及展望[J]. 液压与气动, 2021, 45(9): 1-16.
	YIN Fanglong, WANG Yang, JIA Guotao, et al. Research situation and prospect of energy recovery device for seawater reverse osmosis desalination[J]. Chinese Hydraulics & Pneumatics, 2021, 45(9): 1-16.
[21]	霍慕杰, 别海燕, 林子昕, 等. 转子流道倾斜式的外驱旋转压能交换器性能研究[J]. 山东科学, 2020, 33(6): 16-21.
	HUO Mujie, BIE Haiyan, LIN Zixin, et al. Evaluating the performance of external-drive rotary pressure exchanger with tilted rotor runner[J]. Shandong Science, 2020, 33(6): 16-21.
[22]	孙扬平, 王越, 许恩乐, 等. 水力自驱旋转式能量回收装置的转速推导[J]. 化学工业与工程, 2016, 33(4): 67-73.
	SUN Yangping, WANG Yue, XU Enle, et al. Rotating speed derivation of hydro-drive rotary energy recovery device[J]. Chemical Industry and Engineering, 2016, 33(4): 67-73.
[23]	ZHOU Jie, LIU Dong, ZHANG Qinghong, et al. Investigations on the energy conversion and dissipation in hydraulic-driven rotary energy recovery device from a designer’s perspective: Simulation and validation[J]. Desalination, 2023, 563: 116718.
[24]	HUANG Dekai, QIAN Zhaohui, YU Xinwei, et al. Research on rotational driving torque of rotary energy recovery device in seawater reverse osmosis system[C]//OCEANS 2019-Marseille. IEEE, 2019: 1-4.
[25]	李磊, 董召民, 马变雄, 等. 旋转正位移式能量回收装置效率实验分析[C]//高等学校工程热物理第二十九届全国学术会议，2023.
	LI Lei, DONG Zhaomin, MA Bianxiong, et al. Experimental analysis of the efficiency of a rotating positive displacement energy recovery device[C]// Proceedings of the 29th National Conference on Engineering Thermophysics in Higher Education Institutions, 2023.
[26]	董召民, 马变雄, 沈胜强, 等. 旋转式能量回收装置转子孔道内部流体掺混特性分析[C]//高等学校工程热物理第二十九届全国学术会议， 2023.
	DONG Zhaomin, MA Bianxiong, SHEN Shengqiang,et al. Fluid mixing characteristics inside channel of rotary energy recovery device[C]// Proceedings of the 29th National Conference on Engineering Thermophysics in Higher Education Institutions, 2023.
[27]	马变雄, 葛祎阳, 梁刚涛, 等. 旋转式压力能回收装置端面密封数值模拟研究[C]//高等学校工程热物理第三十届全国学术会议， 2024.
	MA Bianxiong, GE Yiyang, LIANG Gangtao, et al. Numerical simulation study of end seals in rotary pressure energy recovery devices[C]// Proceedings of the 30th National Conference on Engineering Thermophysics in Higher Education Institutions, 2024.
[28]	翁晓丹, 张希建, 张建中, 等. 我国反渗透海水淡化能量回收装置研究与应用现状[J]. 中国给水排水, 2021, 37(4): 11-15.
	WENG Xiaodan, ZHANG Xijian, ZHANG Jianzhong, et al. Research and application status of energy recovery devices for desalination of reverse osmosis sea water system in China[J]. China Water & Wastewater, 2021, 37(4): 11-15.
[29]	韩松, 王越, 许恩乐, 等. 水力驱动转子式能量回收装置启动特性研究[J]. 化学工业与工程, 2014, 31(2): 24-30.
	HAN Song, WANG Yue, XU Enle, et al. Startup characteristics of hydraulic-drive rotary energy recovery device[J]. Chemical Industry and Engineering, 2014, 31(2): 24-30.
[30]	杨大壮, 袁丹青, 李辉. 自驱旋转式能量回收装置的转速特性曲线[J]. 排灌机械工程学报, 2024, 42(3): 288-293.
	YANG Dazhuang, YUAN Danqing, LI Hui. Research on speed characteristic curve of self-driving rotary energy recovery device[J]. Journal of Drainage and Irrigation Machinery Engineering, 2024, 42(3): 288-293.
[1]	QASIM Muhammad, BADRELZAMAN Mohamed, DARWISH Noora N, et al. Reverse osmosis desalination: A state-of-the-art review[J]. Desalination, 2019, 459: 59-104.
[2]	AL-HAWAJ Osamah M. The design aspects of rotary work exchanger for SWRO[J]. Desalination and Water Treatment, 2009, 8(1/2/3): 131-138.
[3]	Aamer ALI, TUFA Ramato Ashu, MACEDONIO Francesca, et al. Membrane technology in renewable-energy-driven desalination[J]. Renewable and Sustainable Energy Reviews, 2018, 81: 1-21.
[4]	Yu Jie LIM, Kunli GOH, KURIHARA Masaru, et al. Seawater desalination by reverse osmosis: Current development and future challenges in membrane fabrication—A review[J]. Journal of Membrane Science, 2021, 629: 119292.
[5]	Gary AMY, GHAFFOUR Noreddine, LI Zhenyu, et al. Membrane-based seawater desalination: Present and future prospects[J]. Desalination, 2017, 401: 16-21.
[6]	SAYED Enas Taha, OLABI A G, ELSAID Khaled, et al. Recent progress in renewable energy based-desalination in the Middle East and North Africa MENA region[J]. Journal of Advanced Research, 2023, 48: 125-156.
[7]	SHAHZAD Muhammad Wakil, BURHAN Muhammad, Li ANG, et al. Energy-water-environment nexus underpinning future desalination sustainability[J]. Desalination, 2017, 413: 52-64.
[8]	WANG Chengpeng, WANG Shenghui, WANG Kaijie, et al. Developmental impediment and prospective trends of desalination energy recovery device[J]. Desalination, 2024, 578: 117465.
[9]	YE Tianzhuang, HU Xinchao, WANG Kaiyuan, et al. Research on the influence of lateral force and pressure fluctuation on the stability of a rotary energy recovery device in the desalination system[J]. Water, 2024, 16(6): 823.
[10]	刘宁, 李艳霞, 刘中良, 等. 反渗透海水淡化系统中压力能回收装置[C]//高等学校工程热物理第十九届全国学术会议. 2013: 1374-1383.
	LIU Ning, LI Yanxia, LIU Zhongliang, et al. Pressure energy recovery devices of the reverse osmosis seawater desalination[C]//Proceedings of the 19th National Conference on Engineering Thermophysics in Higher Education Institutions. 2013: 1374-1383.
[11]	LIU Kai, LIU Xuyu, ZHANG Xingkai, et al. Influence of structural and operating factors on mixing transfer of rotary energy recovery device through CFD simulation[J]. Frontiers in Energy Research, 2023, 10: 1111138.

参数	数值	参数	数值
A₁/m²	0.003	V₂/m³	0.0026
A₂/m²	0.0245	ρ_l/kg·m^-3	1050
L/m	0.19	ρ_z/kg·m^-3	2680
r_z /m	0.09	θ/(°)	30
V₁/m³	0.002	μ/Pa·s	0.001005

参数	数值	参数	数值
A₁/m²	0.003	V₂/m³	0.0026
A₂/m²	0.0245	ρ_l/kg·m^-3	1050
L/m	0.19	ρ_z/kg·m^-3	2680
r_z /m	0.09	θ/(°)	30
V₁/m³	0.002	μ/Pa·s	0.001005
