激光构建超疏水表面的研究进展

doi:10.16085/j.issn.1000-6613.2024-0429

摘要/Abstract

摘要：

超疏水表面在诸多领域有广泛的应用前景，现已发展出多种制备方法。激光加工技术作为一种绿色、高效的非接触式加工方法，在超疏水表面的制备上具有独特的优势。本文首先以表面润湿理论为基础，简述了激光加工表面的特点及图案类型，从激光一步制备、激光与化学修饰结合制备及激光与其他技术复合制备超疏水表面三方面概述了近年来对不同材料超疏水表面的激光构建方法，分析了不同制备方式存在的优缺点；随后介绍了激光加工构建不同材料超疏水表面在防冰、集雾等领域的应用进展，对拓展不同材料的应用及使用性能的提升具有一定启发意义；最后，指出了现阶段激光加工构建超疏水表面存在的一些问题，激光对表面的影响、润湿理论、大规模应用及表面修复机制等方面的研究还有待深入探索，为制备出稳定、耐久的超疏水表面提供了更多可能性。

关键词: 激光加工, 超疏水表面, 润湿理论, 表面处理

Abstract:

Superhydrophobic surfaces have a wide range of applications in numerous fields and various preparation methods have been developed. As a green and efficient non-contact processing method, laser processing technology has unique advantages in preparing superhydrophobic surfaces. Based on the theory of surface wetting, this review outlined the characteristics and pattern types of laser-treated surfaces. It provided an overview of laser construction methods for superhydrophobic surfaces on various materials including laser one-step preparation, laser combined with chemical modification and laser combined with other technologies. The strengths and weaknesses of the different production methods were analyzed. Subsequently, the progress of laser technology to construct superhydrophobic surfaces of various materials in the anti-icing and fog collection was introduced. It was inspiring to expand the application and enhance the performance of materials. Finally, some problems of constructing superhydrophobic surfaces with laser processing at the present stage were pointed out. The studies on the effect of laser on the surface, wetting theory, large-scale application and surface repair mechanism still needed to be further explored to provide more possibilities for fabricating stable and durable superhydrophobic surfaces.

Key words: laser processing, superhydrophobic surfaces, wetting theory, surface treatment

中图分类号:

TN249

李杰, 王宇科, 石文天, 郭云杰, 陆彦宁, 付硕, 路祎祎. 激光构建超疏水表面的研究进展[J]. 化工进展, 2025, 44(3): 1432-1444.

LI Jie, WANG Yuke, SHI Wentian, GUO Yunjie, LU Yanning, FU Shuo, LU Yiyi. Research progress in constructing superhydrophobic surfaces by laser processing[J]. Chemical Industry and Engineering Progress, 2025, 44(3): 1432-1444.

图/表 13

参考文献 89

1	FENG Lin, ZHANG Yanan, XI Jinming, et al. Petal effect: A superhydrophobic state with high adhesive force[J]. Langmuir, 2008, 24(8): 4114-4119.
2	BIXLER Gregory D, THEISS Andrew, BHUSHAN Bharat, et al. Anti-fouling properties of microstructured surfaces bio-inspired by rice leaves and butterfly wings[J]. Journal of Colloid and Interface Science, 2014, 419: 114-133.
3	KOCH Kerstin, BHUSHAN Bharat, BARTHLOTT Wilhelm. Multifunctional surface structures of plants: An inspiration for biomimetics[J]. Progress in Materials Science, 2009, 54(2): 137-178.
4	LI Wen, ZHAN Yanlong, YU Sirong. Applications of superhydrophobic coatings in anti-icing: Theory, mechanisms, impact factors, challenges and perspectives[J]. Progress in Organic Coatings, 2021, 152: 106117.
5	YUAN Gan, LIU Yu, Chi-Vinh NGO, et al. Rapid fabrication of anti-corrosion and self-healing superhydrophobic aluminum surfaces through environmentally friendly femtosecond laser processing[J]. Optics Express, 2020, 28(24): 35636-35650.
6	MAO Zhenwei, CAO Wei, HU Jie, et al. A dual-functional surface with hierarchical micro/nanostructure arrays for self-cleaning and antireflection[J]. RSC Advances, 2017, 7(78): 49649-49654.
7	赵欣, 黄成超, 李梦，等. 激光结构化超疏水表面的应用与研究现状[J]. 激光与光电子学进展, 2022, 59(19): 82-92.
	ZHAO Xin, HUANG Chengchao, LI Meng, et al. Application and research status of laser structured superhydrophobic surfaces[J]. Laser & Optoelectronics Progress, 2022, 59(19): 82-92.
8	张嘉亮, 成扬, 杨青，等. 飞秒激光制备耐久型超疏水表面及其应用的研究进展[J]. 光子学报, 2022, 51(7): 0751414.
	ZHANG Jialiang, CHENG Yang, YANG Qing, et al. Research progress of femtosecond laser preparation of durable superhydrophobic surface and its application[J]. Acta Photonica Sinica, 2022, 51(7): 0751414.
9	杨焕, 曹宇, 李峰平，等. 激光制备超疏水表面研究进展[J]. 光电工程, 2017, 44(12): 1160-1168.
	YANG Huan, CAO Yu, LI Fengping, et al. Research progress in superhydrophobic surfaces fabricated by laser[J]. Opto-Electronic Engineering, 2017, 44(12): 1160-1168.
10	雍佳乐, 杨青, 陈烽，等. 飞秒激光仿生制备极端浸润性表面[J]. 科学通报, 2019, 64(12): 1211-1237.
	YONG Jiale, YANG Qing, CHEN Feng, et al. Femtosecond laser-induced superwetting surfaces[J]. Chinese Science Bulletin, 2019, 64(12): 1211-1237.
11	白雪, 陈烽. 飞秒激光制备超疏水表面的研究进展[J]. 光学学报, 2021, 41(1): 218-231.
	BAI Xue, CHEN Feng. Recent advances in femtosecond laser-induced superhydrophobic surfaces[J]. Acta Optica Sinica, 2021, 41(1): 218-231.
12	YOUNG Thomas. An essay on the cohesion of fluids[J]. Philosophical Transactions of the Royal Society of London Series Ⅰ, 1805, 95: 65-87.
13	WENZEL Robert N. Resistance of solid surfaces to wetting by water[J]. Industrial & Engineering Chemistry, 1936, 28(8): 988-994.
14	CASSIE A B D, BAXTER S. Wettability of porous surfaces[J]. Transactions of the Faraday Society, 1944, 40: 546-551.
15	KIETZIG Anne-Marie, NEGAR MIRVAKILI Mehr, KAMAL Saeid, et al. Laser-patterned super-hydrophobic pure metallic substrates: Cassie to Wenzel wetting transitions[J]. Journal of Adhesion Science and Technology, 2011, 25(20): 2789-2809.
16	曹祥康, 孙晓光, 蔡光义，等. 耐久型超疏水表面：理论模型、制备策略和评价方法[J]. 化学进展, 2021, 33(9): 1525-1537.
	CAO Xiangkang, SUN Xiaoguang, CAI Guangyi, et al. Durable superhydrophobic surfaces: Theoretical models, preparation strategies, and evaluation methods[J]. Progress in Chemistry, 2021, 33(9): 1525-1537.
17	BONN Daniel, EGGERS Jens, INDEKEU Joseph, et al. Wetting and spreading[J]. Reviews of Modern Physics, 2009, 81(2): 739-805.
18	FEOKTISTOV Dmitry V, ORLOVA Evgeniya G, ISLAMOVA Anastasia G. Mechanism of contact line movement of a droplet spreading over a solid surface[J]. MATEC Web of Conferences, 2017, 91: 01026.
19	PANG Khang Ee, NÁRAIGH Lennon Ó. A mathematical model and mesh-free numerical method for contact-line motion in lubrication theory[J]. Environmental Fluid Mechanics, 2022, 22(2/3): 301-336.
20	WANG Ben, ZHANG Yabin, SHI Lei, et al. Advances in the theory of superhydrophobic surfaces[J]. Journal of Materials Chemistry, 2012, 22(38): 20112-20127.
21	WANG Xiao, FU Cheng, ZHANG Chunlai, et al. A comprehensive review of wetting transition mechanism on the surfaces of microstructures from theory and testing methods[J]. Materials, 2022, 15(14): 4747.
22	SHIBUICHI S, YAMAMOTO T, ONDA T, et al. Super water- and oil-repellent surfaces resulting from fractal structure[J]. Journal of Colloid and Interface Science, 1998, 208(1): 287-294.
23	陈列, 文关棋, 郭飞，等. 纳秒激光诱导超疏水硅橡胶表面微结构的分形特性[J]. 中国激光, 2021, 48(6): 0602201.
	CHEN Lie, WEN Guanqi, GUO Fei, et al. Fractal characteristics of microstructures on a superhydrophobic silicone rubber surface induced by a nanosecond laser[J]. Chinese Journal of Lasers, 2021, 48(6): 0602201.
24	巴一, 韩善果, 杨永强，等. 激光刻蚀法制备超疏水材料表面的研究进展[J]. 热加工工艺, 2023, 52(4): 1-5, 11.
	BA Yi, HAN Shanguo, YANG Yongqiang, et al. Research progress on preparation of superhydrophobic materials by laser etching[J]. Hot Working Technology, 2023, 52(4): 1-5, 11.
25	曹嘉冀, 修思羽, 许金凯，等. 飞秒激光制备仿生功能微纳结构及其应用[J]. 中国激光, 2022, 49(10): 1002702.
	CAO Jiaji, XIU Siyu, XU Jinkai, et al. Fabrication of bioinspired functional micro-nano structures by femtosecond laser and their applications[J]. Chinese Journal of Lasers, 2022, 49(10): 1002702.
26	GUO Chunfang, ZHANG Meiju, HU Jun. Fabrication of hierarchical structures on titanium alloy surfaces by nanosecond laser for wettability modification[J]. Optics & Laser Technology, 2022, 148: 107728.
27	YONG Jiale, YANG Qing, HUO Jinglan, et al. Underwater gas self-transportation along femtosecond laser-written open superhydrophobic surface microchannels (<100μm) for bubble/gas manipulation[J]. International Journal of Extreme Manufacturing, 2022, 4(1): 015002.
28	SARBADA Shashank, SHIN Yung C. Superhydrophobic contoured surfaces created on metal and polymer using a femtosecond laser[J]. Applied Surface Science, 2017, 405: 465-475.
29	TRAN Ngoc Giang, CHUN Doo-Man. Green manufacturing of extreme wettability contrast surfaces with superhydrophilic and superhydrophobic patterns on aluminum[J]. Journal of Materials Processing Technology, 2021, 297: 117245.
30	孙晓雨, 孙树峰, 王津，等. 超疏水表面激光加工技术研究进展[J]. 中国表面工程, 2022, 35(1): 53-71.
	SUN Xiaoyu, SUN Shufeng, WANG Jin, et al. Research progress of laser processing technology for superhydrophobic surface[J]. China Surface Engineering, 2022, 35(1): 53-71.
31	占彦龙, 李文, 李宏，等. 激光微加工技术制备浸润性可控聚四氟乙烯超疏水表面[J]. 高分子材料科学与工程, 2018, 34(4): 147-151, 158.
	ZHAN Yanlong, LI Wen, LI Hong, et al. Fabrication of polytetrafluoroethylene superhydrophobic surface with controllable wettability by laser micromaching technology[J]. Polymer Materials Science & Engineering, 2018, 34(4): 147-151, 158.
32	陈峒霖, 毛江维, 陈招弟，等. 激光加工制备仿芦苇叶结构的超疏水表面[J]. 科学通报, 2019, 64(12): 1303-1308.
	CHEN Donglin, MAO Jiangwei, CHEN Zhaodi, et al. Fabrication of bionic reed leaf superhydrophobic surface by laser processing[J]. Chinese Science Bulletin 2019, 64(12): 1303-1308.
33	FARSHCHIAN Bahador, GATABI Javad R, BERNICK Steven M, et al. Laser-induced superhydrophobic grid patterns on PDMS for droplet arrays formation[J]. Applied Surface Science, 2017, 396: 359-365.
34	陈列, 聂琦璐, 郭飞，等. 飞秒激光刻蚀硅橡胶超疏水表面老化特征的研究[J]. 中国激光, 2022, 49(10): 1002606.
	CHEN Lie, NIE Qilu, GUO Fei, et al. Aging characteristics of superhydrophobic silicone rubber surfaces etched by femtosecond laser[J]. Chinese Journal of Lasers, 2022, 49(10): 1002606.
35	YANG Huan, XU Kaichen, XU Changwen, et al. Femtosecond laser fabricated elastomeric superhydrophobic surface with stretching-enhanced water repellency[J]. Nanoscale Research Letters, 2019, 14(1): 333.
36	NASSER Jalal, LIN Jiajun, ZHANG Lisha, et al. Laser induced graphene printing of spatially controlled super-hydrophobic/hydrophilic surfaces[J]. Carbon, 2020, 162: 570-578.
37	TANG M. Laser ablation of metal substrates for super-hydrophobic effect[J]. Journal of Laser Micro, 2011, 6(1): 6-9.
38	李杰, 刘玉德, 高东明，等. 激光加工结合自组装制备铝合金超疏水表面[J]. 中国材料进展, 2015, 34(6): 462-466.
	LI Jie, LIU Yude, GAO Dongming, et al. Preparation of superhydrophobic surface on aluminum alloy based on laser manufacturing and self-assembled method[J]. Materials China, 2015, 34(6): 462-466.
39	LI Haoyang, TIAN Yanling, YANG Zhen. Stability mechanism of laser-induced fluorinated super-hydrophobic coating in alkaline solution[J]. Journal of Bionic Engineering, 2022, 19(1): 113-125.
40	FENG Libang, ZHANG Hongxia, WANG Zilong, et al. Superhydrophobic aluminum alloy surface: Fabrication, structure, and corrosion resistance[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2014, 441: 319-325.
41	JIN Qing, TIAN Guangyuan, LI Jinxin, et al. The study on corrosion resistance of superhydrophobic magnesium hydroxide coating on AZ31B magnesium alloy[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2019, 577: 8-16.
42	ZHANG Fen, CHEN Shougang, DONG Lihua, et al. Preparation of superhydrophobic films on titanium as effective corrosion barriers[J]. Applied Surface Science, 2011, 257(7): 2587-2591.
43	ZHOU Xue, YU Sirong, ZANG Jie, et al. Colorful nanostructured TiO₂ film with superhydrophobic-superhydrophilic switchable wettability and anti-fouling property[J]. Journal of Alloys and Compounds, 2019, 798: 257-266.
44	刘祁文, 刘国东, 李子航，等. 纳秒激光制备镁合金超疏水表面及其性能研究[J]. 激光与光电子学进展, 2022, 59(5): 224-231.
	LIU Qiwen, LIU Guodong, LI Zihang, et al. Preparation and properties of superhydrophobic surface of magnesium alloy by nanosecond laser[J]. Laser & Optoelectronics Progress, 2022, 59(5): 224-231.
45	乔屹涛, 张东光, 张智泓. 激光加工对65Mn超疏水表面分形结构机械稳定性的影响[J]. 太原理工大学学报, 2022, 53(5): 846-853.
	QIAO Yitao, ZHANG Dongguang, ZHANG Zhihong. Effect of laser texturing on mechanical stability of fractal structure on 65Mn superhydrophobic surface[J]. Journal of Taiyuan University of Technology, 2022, 53(5): 846-853.
46	任乃飞, 宋佳佳, 李保家，等. 飞秒激光刻蚀氧化锆表面微纳结构及其润湿与抗菌性能[J]. 表面技术, 2022, 51(9): 359-370.
	REN Naifei, SONG Jiajia, LI Baojia, et al. Micro-nano structures, wettability and antibacterial property on zirconia surfaces by femtosecond laser etching[J]. Surface Technology, 2022, 51(9): 359-370.
47	林立峰, 何秀权, 章桥新，等. 飞秒激光制备超疏水镍基合金及性能研究[J]. 应用激光, 2022, 42(10): 93-98.
	LIN Lifeng, HE Xiuquan, ZHANG Qiaoxin, et al. Femtosecond laser preparation and properties of superhydrophobic nickel-based alloy[J]. Applied Laser, 2022, 42(10): 93-98.
48	TANG Yiping, CAI Yukui, WANG Lei, et al. Formation mechanism of superhydrophobicity of stainless steel by laser-assisted decomposition of stearic acid and its corrosion resistance[J]. Optics and Laser Technology, 2022, 153: 108190.
49	YANG Zhen, LIU Xianping, TIAN Yanling. Novel metal-organic super-hydrophobic surface fabricated by nanosecond laser irradiation in solution[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2020, 587: 124343.
50	ZHAO Menglei, GUO Jian, ZHAO Jingnan, et al. Heat treatment temperature effect on wettability of laser-machined aluminum surface[J]. Journal of Materials Engineering and Performance, 2022, 31(1): 733-741.
51	兰铃, 底月兰, 王海斗，等. 激光复合加工制备超疏水金属表面的研究进展[J]. 表面技术, 2021, 50(12): 246-256.
	LAN Ling, DI Yuelan, WANG Haidou, et al. Research progress on preparation of super-hydrophobic metal surface by laser composite processing[J]. Surface Technology, 2021, 50(12): 246-256.
52	郑志霞, 李文芳, 张丹，等. 激光刻蚀紫铜表面润湿性的快速转变[J]. 激光与光电子学进展, 2022, 59(7): 0714010.
	ZHENG Zhixia, LI Wenfang, ZHANG Dan, et al. Rapid transformation of wettability on surface of laser etched red copper[J]. Laser & Optoelectronics Progress, 2022, 59(7): 0714010.
53	ZHAO Yizhe, HONG Minghui. Stainless steel anisotropic superhydrophobic surfaces fabrication with inclined cone array via laser ablation and post annealing treatment[J]. Journal of Central South University, 2022, 29(10): 3261-3269.
54	王青华, 程杨洋, 王慧鑫. 锆基非晶合金激光微织构处理及摩擦磨损性能[J]. 东北大学学报(自然科学版), 2022, 43(11): 1575-1582.
	WANG Qinghua, CHENG Yangyang, WANG Huixin. Laser surface micro-texturing of Zr-based bulk metallic glass and investigation of tribological and wear performance[J]. Journal of Northeastern University(Natural Science), 2022, 43(11): 1575-1582.
55	KWON Min Ho, SHIN Hong Shik, CHU Chong Nam. Fabrication of a super-hydrophobic surface on metal using laser ablation and electrodeposition[J]. Applied Surface Science, 2014, 288: 222-228.
56	SHAO Yanlong, ZHAO Jie, FAN Yong, et al. Shape memory superhydrophobic surface with switchable transition between “Lotus Effect” to “Rose Petal Effect”[J]. Chemical Engineering Journal, 2020, 382: 122989.
57	李晶, 丛居平, 郭楠，等. 超疏水低黏附自清洁类蝶鳞片仿生结构的激光构筑与力学机理[J]. 中国激光, 2022, 49(16): 1602009.
	LI Jing, CONG Juping, GUO Nan, et al. Superhydrophobic low adhesion self-cleaning biomimetic surfaces: Laser construction and mechanical properties of simulated butterfly scales[J]. Chinese Journal of Lasers, 2022, 49(16): 1602009.
58	沈宗宝, 李闯, 李品，等. 激光冲击压印制备具有良好时效性的疏水铜表面[J]. 激光与光电子学进展, 2022, 59(17): 1714006.
	SHEN Zongbao, LI Chuang, LI Pin, et al. Preparation of a hydrophobic copper surface with excellent aging properties using laser shock imprinting[J]. Laser & Optoelectronics Progress, 2022, 59(17): 1714006.
59	MA Qiang, TONG Zhe, WANG Wei, et al. Fabricating robust and repairable superhydrophobic surface on carbon steel by nanosecond laser texturing for corrosion protection[J]. Applied Surface Science, 2018, 455: 748-757.
60	赵美云, 杨帆, 张小龙，等. 基于光刻法的复合织构硅橡胶表面的抗冰性能[J]. 中国激光, 2022, 49(10): 1002603.
	ZHAO Meiyun, YANG Fan, ZHANG Xiaolong, et al. Anti-icing performance of complex texture silicone rubber surface based on laser engraving[J]. Chinese Journal of Lasers, 2022, 49(10): 1002603.
61	CHEN Lie, PING Heng, YANG Tao, et al. Icing performance of superhydrophobic silicone rubber surfaces by laser texturing[J]. Materials Research Express, 2019, 6(12): 1250e2.
62	于庆华, 于世胜, 王帅，等. 纳秒激光制备超疏水TC4钛合金表面的抗结霜性能[J]. 机械工程材料, 2022, 46(6): 84-90, 97.
	YU Qinghua, YU Shisheng, WANG Shuai, et al. Frost resistance of superhydrophobic TC4 titanium alloy surface by nanosecond laser[J]. Materials for Mechanical Engineering, 2022, 46(6): 84-90, 97.
63	梅宏昆, 王宬轩, 杨广峰. 微秒激光制备超疏水表面及抑霜性能实验研究[J]. 激光与红外, 2022, 52(10): 1468-1473.
	MEI Hongkun, WANG Chengxuan, YANG Guangfeng. Experimental study on superhydrophobic surface fabrication by microsecond laser and frost suppression performance[J]. Laser & Infrared, 2022, 52(10): 1468-1473.
64	WANG Peng, ZHAO Hui, ZHENG Boyuan, et al. A super-robust armoured superhydrophobic surface with excellent anti-icing ability[J]. Journal of Bionic Engineering, 2023, 20(5): 1891-1904.
65	CHEN Changhao, TIAN Ze, LUO Xiao, et al. Cauliflower-like micro-nano structured superhydrophobic surfaces for durable anti-icing and photothermal de-icing[J]. Chemical Engineering Journal, 2022, 450: 137936.
66	PAN Rui, ZHANG Hongjun, ZHONG Minlin. Triple-scale superhydrophobic surface with excellent anti-icing and icephobic performance via ultrafast laser hybrid fabrication[J]. ACS Applied Materials & Interfaces, 2021, 13(1): 1743-1753.
67	HONG Zhihao, WANG Wenjun, MA Zelin, et al. Anti-icing ceramics surface induced by femtosecond laser[J]. Ceramics International, 2022, 48(7): 10236-10243.
68	ZHAN Y L, RUAN M, LI W, et al. Fabrication of anisotropic PTFE superhydrophobic surfaces using laser microprocessing and their self-cleaning and anti-icing behavior[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2017, 535: 8-15.
69	SU Yahui, CHEN Liang, JIAO Yunlong, et al. Hierarchical hydrophilic/hydrophobic/bumpy Janus membrane fabricated by femtosecond laser ablation for highly efficient fog harvesting[J]. ACS Applied Materials & Interfaces, 2021, 13(22): 26542-26550.
70	LI Weizhen, CHU Dongkai, QU Shuoshuo, et al. Bioinspired superwetting surfaces for fog harvesting fabricated by picosecond laser direct ablation[J]. Journal of Central South University, 2022, 29(10): 3368-3375.
71	ZHANG Jingzhou, ZHANG Yuanchen, YONG Jiale, et al. Femtosecond laser direct weaving bioinspired superhydrophobic/hydrophilic micro-pattern for fog harvesting[J]. Optics & Laser Technology, 2022, 146: 107593.
72	HOU Kongyang, LI Xiaoyang, LI Qiang, et al. Tunable wetting patterns on superhydrophilic/superhydrophobic hybrid surfaces for enhanced dew-harvesting efficacy[J]. Advanced Materials Interfaces, 2020, 7(2): 1901683.
73	LI Jing, ZHOU Yingluo, CONG Juping, et al. Bioinspired integrative surface with hierarchical texture and wettable gradient-driven water collection[J]. Langmuir, 2020, 36(48): 14737-14747.
74	YIN Kai, DU Haifeng, DONG Xinran, et al. A simple way to achieve bioinspired hybrid wettability surface with micro/nanopatterns for efficient fog collection[J]. Nanoscale, 2017, 9(38): 14620-14626.
75	WANG Meng, LIU Qian, ZHANG Haoran, et al. Laser direct writing of tree-shaped hierarchical cones on a superhydrophobic film for high-efficiency water collection[J]. ACS Applied Materials & Interfaces, 2017, 9(34): 29248-29254.
76	YUAN Gan, LIU Yu, XIE Fei, et al. Fabrication of superhydrophobic gully-structured surfaces by femtosecond laser and imprinting for high-efficiency self-cleaning rain collection[J]. Langmuir, 2022, 38(8): 2720-2728.
77	MERTANIEMI Henrikki, JOKINEN Ville, SAINIEMI Lauri, et al. Superhydrophobic tracks for low-friction, guided transport of water droplets[J]. Advanced Materials, 2011, 23(26): 2911-2914.
78	WU Huaping, ZHU Kai, CAO Binbin, et al. Smart design of wettability-patterned gradients on substrate-independent coated surfaces to control unidirectional spreading of droplets[J]. Soft Matter, 2017, 13(16): 2995-3002.
79	YU Yunru, SHANG Luoran, GUO Jiahui, et al. Design of capillary microfluidics for spinning cell-laden microfibers[J]. Nature Protocols, 2018, 13(11): 2557-2579.
80	LI Yifan, FISCHER Robert, ZBORAY Robert, et al. Laser-engraved textiles for engineering capillary flow and application in microfluidics[J]. ACS Applied Materials & Interfaces, 2020, 12(26): 29908-29916.
81	CHEN Lie, XU Yifan, BENNETT Peter, et al. Capillary performance of vertically grooved wicks on laser-processed aluminum surfaces with different wettability[J]. Journal of Physics D: Applied Physics, 2023, 56(42): 425501.
82	CHANG Bo, FENG Yuhang, JIN Jialong, et al. Low-cost laser micromachining super hydrophilic-super hydrophobic microgrooves for robotic capillary micromanipulation of microfibers[J]. Micromachines, 2021, 12(8): 854.
83	SONG Yuegan, HU Yanlei, ZHANG Yachao, et al. Flexible tri-switchable wettability surface for versatile droplet manipulations[J]. ACS Applied Materials & Interfaces, 2022, 14(32): 37248-37256.
84	成健, 曹佳丽, 张恒超，等. 基于超快激光的浸润性可控表面无泵运输轨迹制备[J]. 中国激光, 2019, 46(11): 1102012.
	CHENG Jian, CAO Jiali, ZHANG Hengchao, et al. Preparation of pump-free transport trajectory on infiltration controllable surface using ultrafast laser[J]. Chinese Journal of Lasers, 2019, 46(11): 1102012.
85	HOU Huimin, WU Xiaomin, HU Zhifeng, et al. High-speed directional transport of condensate droplets on superhydrophobic saw-tooth surfaces[J]. Journal of Colloid and Interface Science, 2023, 649: 290-301.
86	LIU Yu, YUAN Gan, GUO Chunlei, et al. Femtosecond laser fabrication and chemical coating of anti-corrosion ethylene-glycol repellent aluminum surfaces[J]. Materials Letters, 2022, 323: 132562.
87	FENG Guang, LI Fengping, XUE Wei, et al. Laser textured GFRP superhydrophobic surface as an underwater acoustic absorption metasurface[J]. Applied Surface Science, 2019, 463: 741-746.
88	杨成娟, 杨雪, 王蒙，等. 仿生超疏水表面在微夹持器钳口端面的应用研究[J]. 中国激光, 2022, 49(10): 225-238.
	YANG Chengjuan, YANG Xue, WANG Meng, et al. Application of bionic superhydrophobic surface in jaw end face of microgripper[J]. Chinese Journal of Lasers, 2022, 49(10): 225-238.
89	何婉盈, 姚鹏, 褚东凯，等. 钛表面微凹凸织构的激光加工及其细胞黏附研究[J]. 中国激光, 2022, 49(10): 258-272.
	HE Wanying, YAO Peng, CHU Dongkai, et al. Fabrication and cell-adhesion evaluation of laser-ablated microprotrusion or microgroove on titanium[J]. Chinese Journal of Lasers, 2022, 49(10): 258-272.

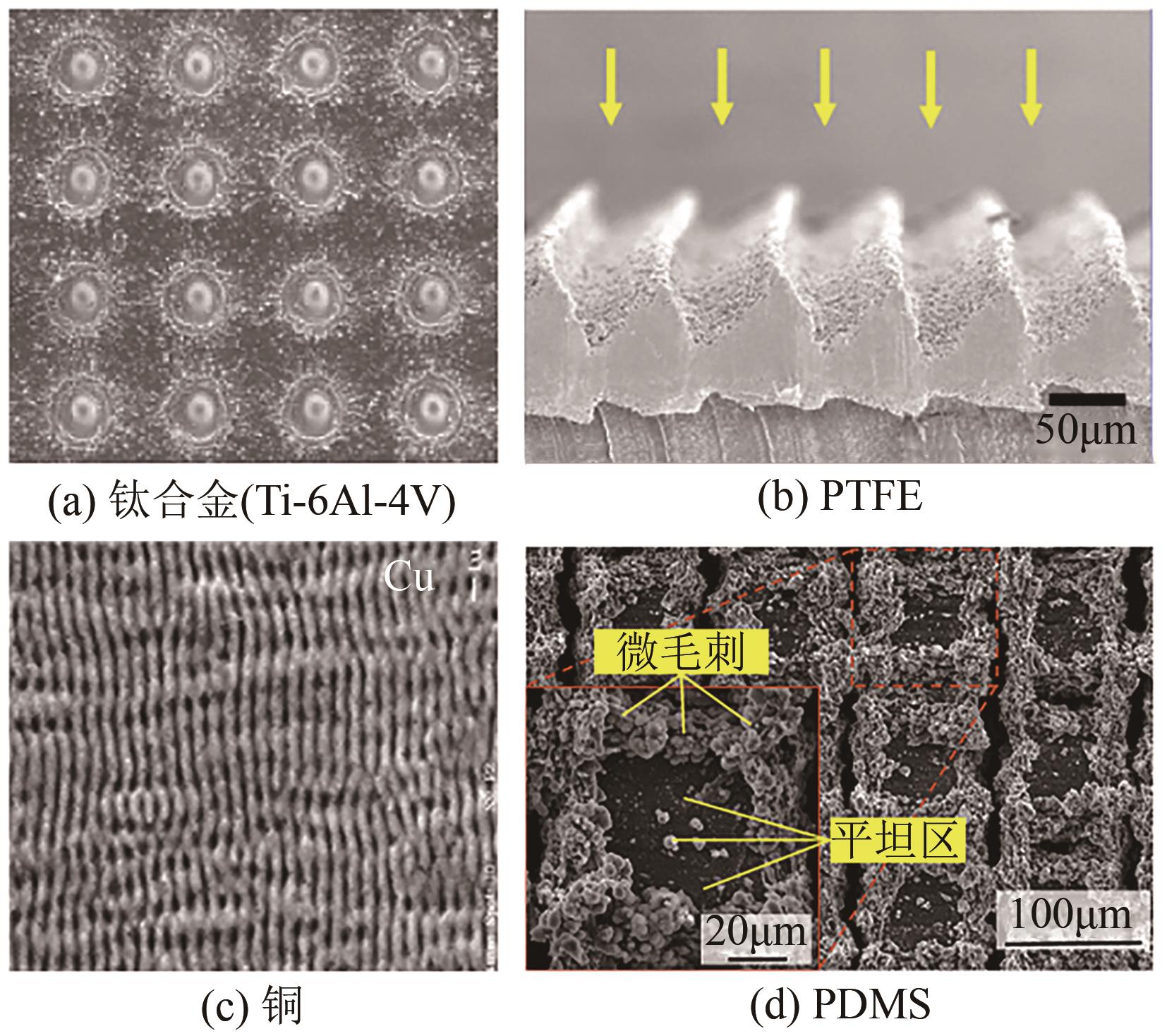

激光刻蚀类型	表面结构特点	形成过程	表面疏水特点
点	凹坑阵列	激光以单个点逐行扫描	各向同性
线	凹槽阵列	激光以线条逐行扫描	各向异性
网格	横纵凹槽阵列	激光以线条在横纵方向逐行扫描	各向同性
激光诱导周期性表面（LIPSS）	多尺度周期性条纹结构	激光束与表面等离子体之间的干涉	多尺度周期结构增强疏水性

激光刻蚀类型	表面结构特点	形成过程	表面疏水特点
点	凹坑阵列	激光以单个点逐行扫描	各向同性
线	凹槽阵列	激光以线条逐行扫描	各向异性
网格	横纵凹槽阵列	激光以线条在横纵方向逐行扫描	各向同性
激光诱导周期性表面（LIPSS）	多尺度周期性条纹结构	激光束与表面等离子体之间的干涉	多尺度周期结构增强疏水性

材料	激光波长/nm	频率 /kHz	脉冲时间/s	扫描速度 /mm·s^-1	功率 /W	水接触角 /(°)	参考文献
PTFE	1064	20	—	—	3	165.34	[31]
PDMS	248	10	2.5×10^-8	0.05	—	156	[33]
橡胶	800	1	1×10^-13	2	—	153.6	[35]
铜	335	30	2×10^-8	200	—	161	[37]

材料	激光波长/nm	频率 /kHz	脉冲时间/s	扫描速度 /mm·s^-1	功率 /W	水接触角 /(°)	参考文献
PTFE	1064	20	—	—	3	165.34	[31]
PDMS	248	10	2.5×10^-8	0.05	—	156	[33]
橡胶	800	1	1×10^-13	2	—	153.6	[35]
铜	335	30	2×10^-8	200	—	161	[37]

材料	激光波长/nm	频率/kHz	脉冲时间/s	扫描速度/mm·s^–1	功率/W	化学试剂	水接触角/(°)	参考文献
铜	1064	20	5×10^-8	500	16	1H, 1H, 2H, 2H-全氟癸基三氯硅烷	156.4	[39]
65Mn	—	20	2×10^-8~10×10^-8	200~400	30	硬脂酸	154.19	[45]
氧化锆	1030	50	2.62×10^-13	10~50	—	硬脂酸	163.9	[46]
镍	1040	100	3.88×10^-13	80	1.6	氟硅烷	156.8	[47]
不锈钢	1064	50~200	1×10^-7	20~50	1~20	硬脂酸	153.9	[48]
铝	1060	20	5×10^-8	100	10	1H, 1H, 2H, 2H-全氟癸基三乙氧基硅烷	155.8	[49]
