Promoting effect of high density fluid phase nano-bubbles on hydrate formation

doi:10.16085/j.issn.1000-6613.2024-2016

Chemical Industry and Engineering Progress ›› 2025, Vol. 44 ›› Issue (12): 6789-6797.DOI: 10.16085/j.issn.1000-6613.2024-2016

• Chemical processes and equipment • Previous Articles

Promoting effect of high density fluid phase nano-bubbles on hydrate formation

LIU Qingdi¹(), GUO Yong¹(), LIU Xinyu¹, HUANG Deshi², WANG Guan³, ZHANG Xian¹()

^1.Key Laboratory of Enhanced Oil and Gas Recovery of Ministry of Education, Northeast Petroleum University, Daqing 163000, Heilongjiang, China
^2.Xinjiang Oilfield Branch Jiqing Oilfield Operation Area, Kelamayi 834000, Xinjiang, China
^3.Bohai Drilling Third Drilling Company, Tianjin 300000, China

Received:2024-12-11 Revised:2025-04-25 Online:2026-01-06 Published:2025-12-25
Contact: ZHANG Xian

高密度体相纳米气泡对气体水合物生成的促进作用

刘青帝¹(), 郭勇¹(), 刘心语¹, 黄德士², 王冠³, 张弦¹()

^1.东北石油大学提高油气采收率教育部重点实验室，黑龙江大庆 163000
^2.新疆油田分公司吉庆油田作业区，新疆克拉玛依 834000
^3.渤海钻探第三钻井分公司，天津 300000

通讯作者: 张弦
作者简介:刘青帝（1994—），男，硕士研究生，研究方向为水合物成核。E-mail：17854262861@163.com
郭勇（1985—），男，讲师，研究方向为天然气水合物绿色高效开采。E-mail：guoyong@nepu.edu.cn。
基金资助:
国家博士后科学基金面上项目(2021MD703808)

Abstract

Abstract:

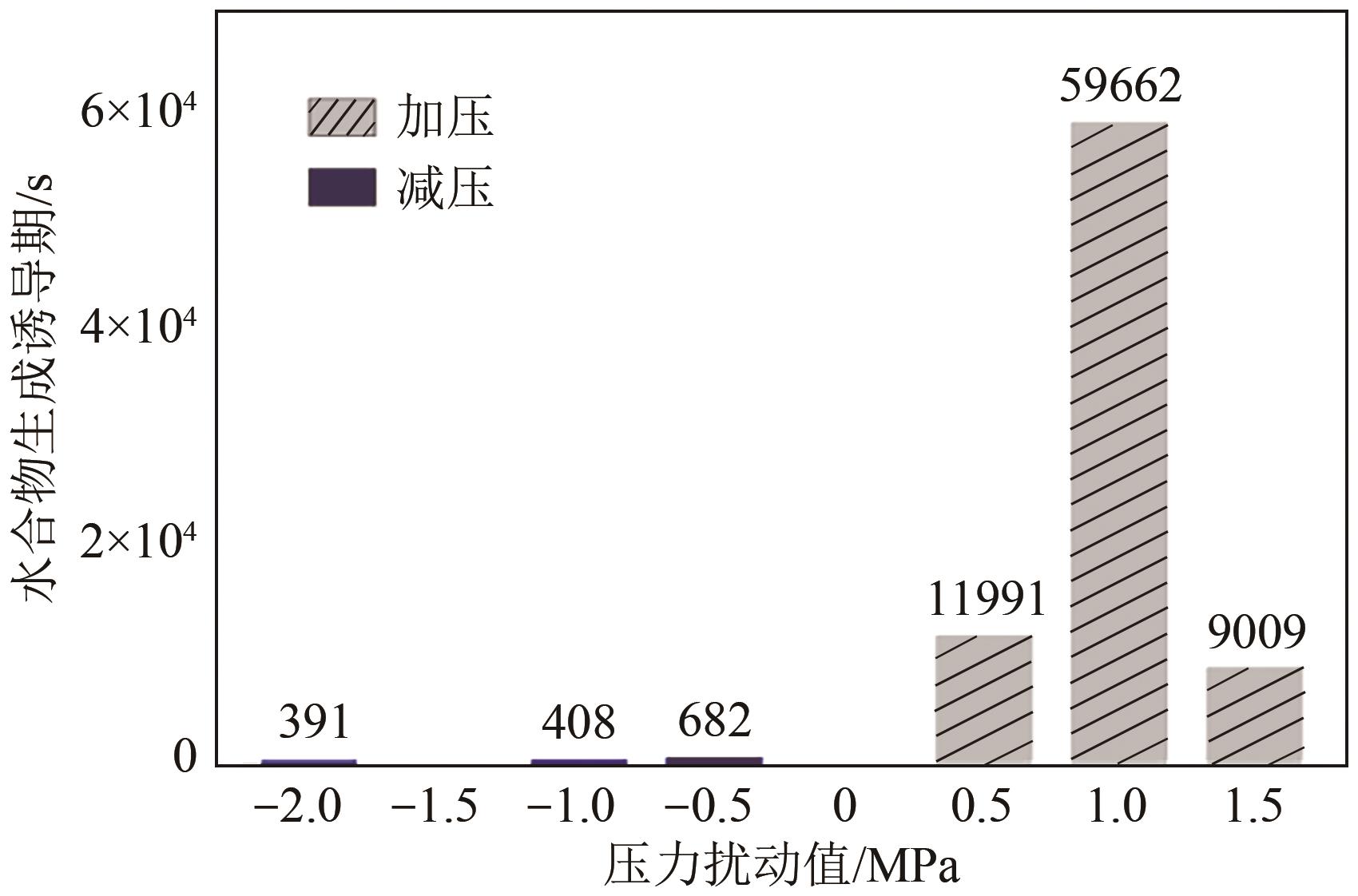

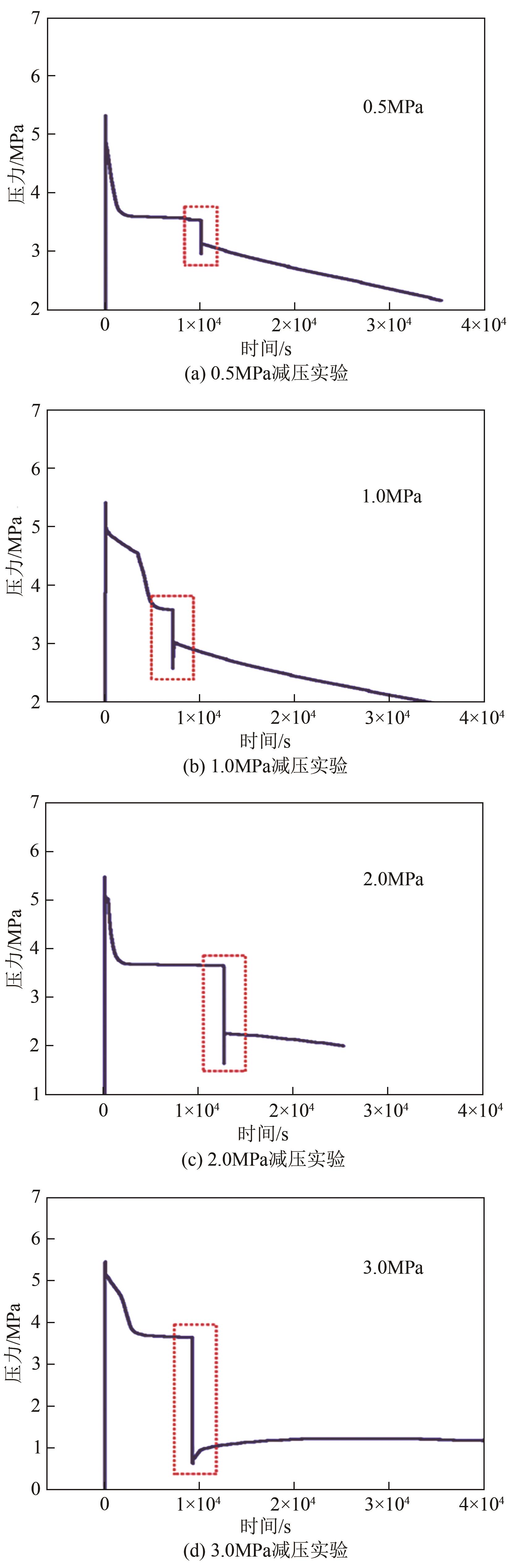

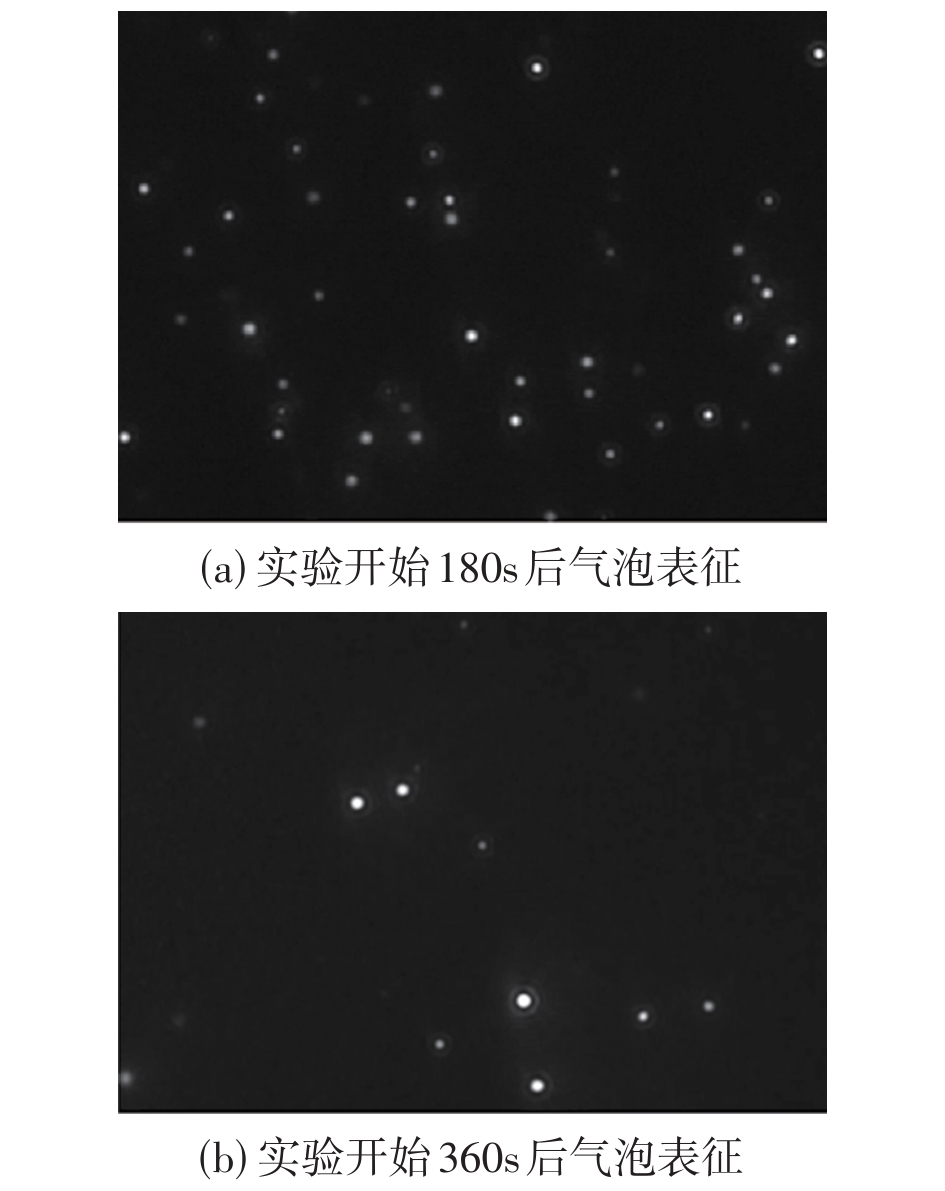

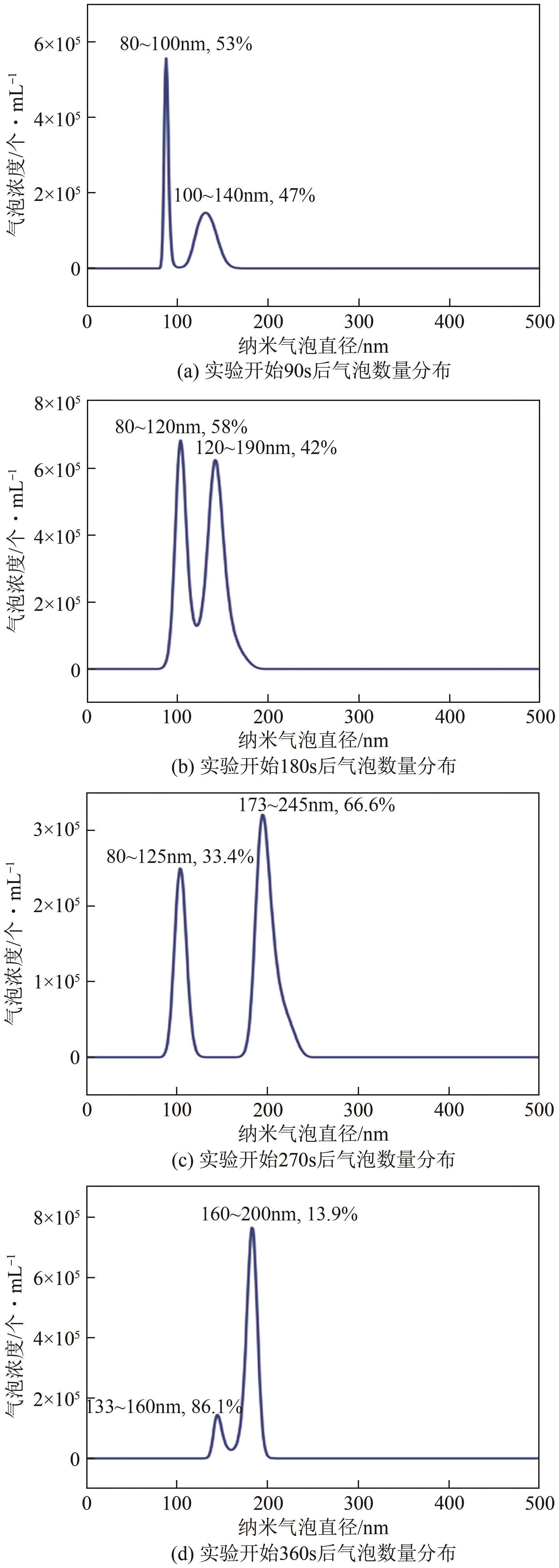

The effects of nano-bubbles on hydrate formation rate and induction period are studied in this paper. In the experiment of the influence of pressure disturbance on the induction period of hydrate formation, it is found that pressure reduction can effectively shorten or even eliminate the induction period of hydrate formation, but instantaneous depressurization does not affect the phase equilibrium characteristics of CO₂ hydrate. Through the NanoSight microscale analysis experiment observation, it is found that high concentration nano-bubbles are formed in the proper phase during the depressurization process. The gas-liquid contact area of nano-bubbles is increased, and the high density of nano-bubbles significantly increases the driving force of hydrate nucleation. The experimental results show that the artificially controlled pressure disturbance may avoid the formation of CO₂ hydrate, which has practical engineering guiding significance in the marine waste mineral carbon sequestration (CCUS) CO₂ project.

Key words: pressure disturbance, hydrate formation, nano-bubbles, carbon sequestration

摘要：

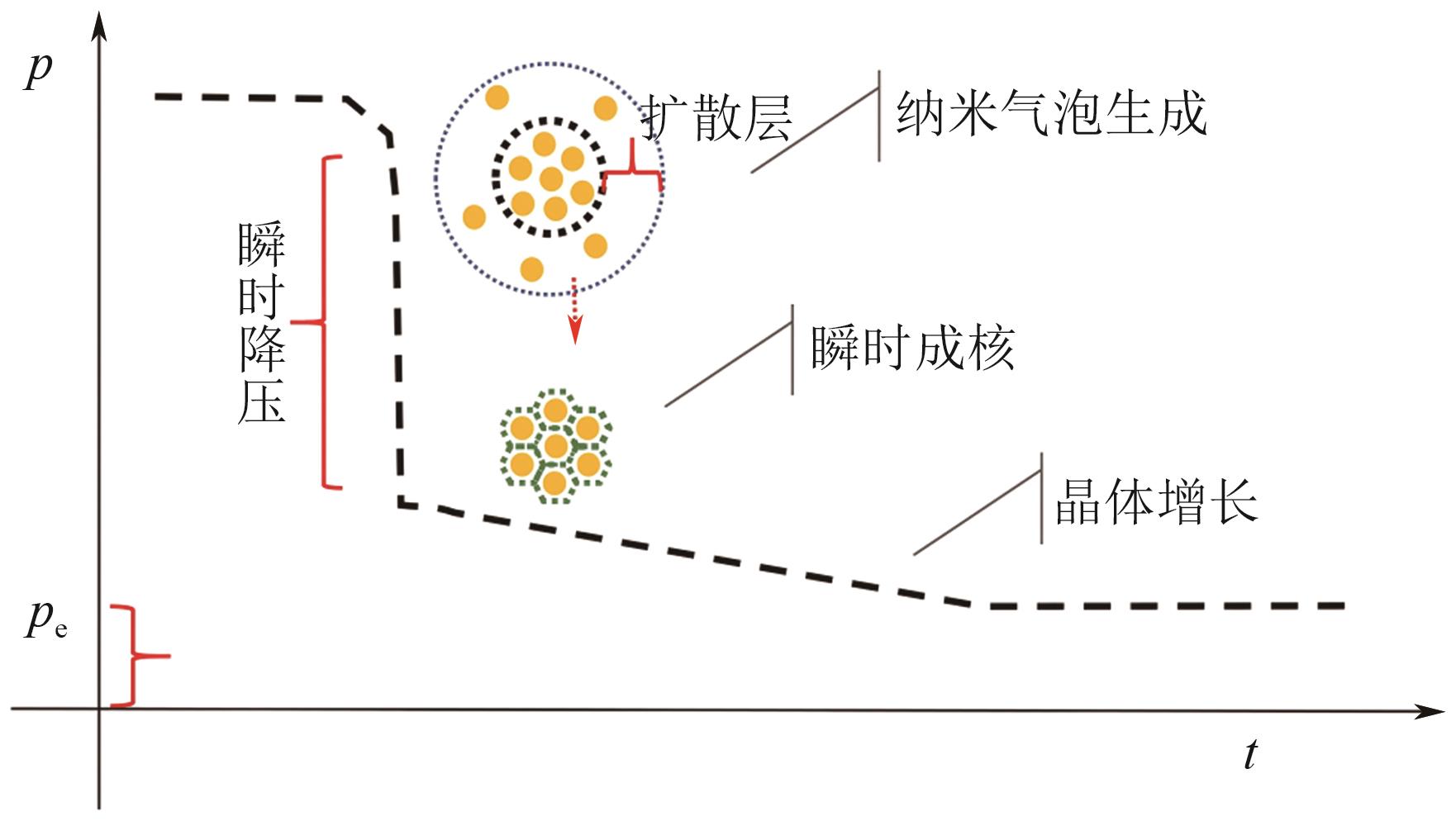

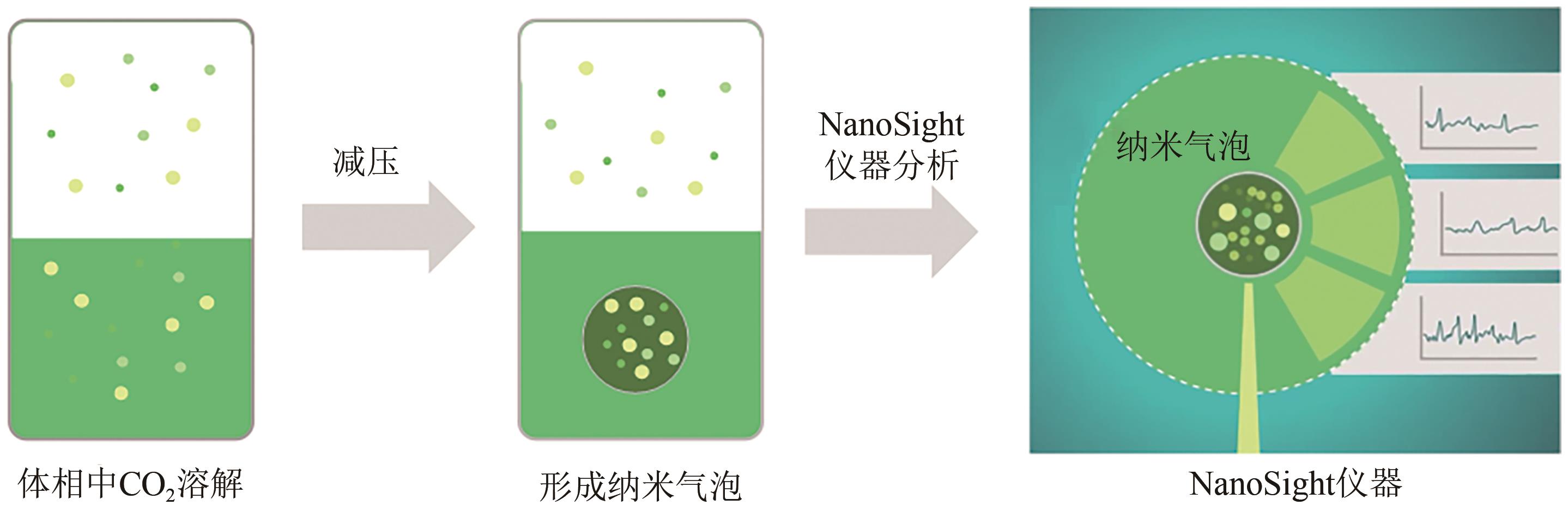

研究了瞬时降压所造成的体相纳米气泡对二氧化碳水合物的生成速率及诱导期的影响。在瞬时压力扰动对水合物生成诱导期影响实验中发现瞬时降压能够有效缩短甚至消除水合物生成的诱导期，但瞬时降压并不影响二氧化碳水合物的相平衡特性。进一步通过NanoSight纳米微粒分析仪观测发现，系统瞬时降压过程使得体相中生成了高浓度纳米气泡。纳米气泡较大的比表面特性增大了气液接触面积，通过热力学计算证实其高密度特性显著增大了水合物成核驱动力。实验现象表明，通过控制压力扰动可以控制CO₂水合物的成核速率。研究结果在海洋废弃矿藏碳捕集、利用与封存（carbon capture,utilization and storage，CCUS）项目中有实际的工程指导意义。

关键词: 压力扰动, 水合物生成, 纳米气泡, 碳封存

CLC Number:

TQ95

LIU Qingdi, GUO Yong, LIU Xinyu, HUANG Deshi, WANG Guan, ZHANG Xian. Promoting effect of high density fluid phase nano-bubbles on hydrate formation[J]. Chemical Industry and Engineering Progress, 2025, 44(12): 6789-6797.

刘青帝, 郭勇, 刘心语, 黄德士, 王冠, 张弦. 高密度体相纳米气泡对气体水合物生成的促进作用[J]. 化工进展, 2025, 44(12): 6789-6797.

Figures/Tables 12

纳米气泡中心距离r/nm	过饱和度驱动力 $(l n S) 2$	成核概率 $J$
75	0.0734	1.7×10^-24
80	0.0649	2.0×10^-27
90	0.0531	4.6×10^-33
100	0.0444	1.6×10^-39
120	0.0323	1.1×10^-54
150	0.0210	1.5×10^-83
200	0.0125	2.2×10^-139
300	0.0056	0

纳米气泡中心距离r/nm	过饱和度驱动力 $(l n S) 2$	成核概率 $J$
75	0.0734	1.7×10^-24
80	0.0649	2.0×10^-27
90	0.0531	4.6×10^-33
100	0.0444	1.6×10^-39
120	0.0323	1.1×10^-54
150	0.0210	1.5×10^-83
200	0.0125	2.2×10^-139
300	0.0056	0

References 24

[1]	周守为, 李清平, 朱军龙, 等. CO₂海洋封存的思考与新路径探索[J]. 天然气工业, 2024, 44(4): 1-10, 199.
	ZHOU Shouwei, LI Qingping, ZHU Junlong, et al. Consideration on CO₂ marine storage and exploration of new paths[J]. Natural Gas Industry, 2024, 44(4): 1-10, 199.
[2]	WU Qiang, ZHANG Baoyong. Memory effect on the pressure-temperature condition and induction time of gas hydrate nucleation[J]. Journal of Natural Gas Chemistry, 2010, 19(4): 446-451.
[3]	MOHAMMADI A H, ESLAMIMANESH A, BELANDRIA V, et al. Phase equilibria of semiclathrate hydrates of CO₂, N₂, CH₄, or H₂+ tetra-n-butylammonium bromide aqueous solution[J]. Journal of Chemical & Engineering Data, 2011, 56(10): 3855-3865.
[4]	吴强, 周竹青, 高霞, 等. NaCl溶液中多组分瓦斯水合物的成核诱导时间[J]. 煤炭学报, 2015, 40(6): 1396-1401.
	WU Qiang, ZHOU Zhuqing, GAO Xia, et al. Induction time of multi-component gas hydrate nucleation in NaCl solution[J]. Journal of China Coal Society, 2015, 40(6): 1396-1401.
[5]	李智峰, 张强, 吴强, 等. 驱动力对瓦斯气体水合物成核诱导时间的影响[J]. 黑龙江科技学院学报, 2013, 23(4): 329-332.
	LI Zhifeng, ZHANG Qiang, WU Qiang, et al. Influence of different driving forces on nucleation induction time of multi-component mixed gas hydrate[J]. Journal of Heilongjiang Institute of Science and Technology, 2013, 23(4): 329-332.
[6]	ARJMANDI Mosayyeb, TOHIDI Bahman, DANESH Ali, et al. Is subcooling the right driving force for testing low-dosage hydrate inhibitors?[J]. Chemical Engineering Science, 2005, 60(5): 1313-1321.
[7]	李金平, 王立璞, 梁德青, 等. 表面活性剂对气体水合物生成过程的影响[J]. 中国科学技术大学学报, 2006, 36(4): 364-369.
	LI Jinping, WANG Lipu, LIANG Deqinget al. The effects of surfactants on the formation of gas hydrate[J]. Journal of University of Science and Technology of China, 2006, 36(4): 364-369.
[8]	NGUYEN Ngoc N, NGUYEN Anh V, STEEL Karen M, et al. Interfacial gas enrichment at hydrophobic surfaces and the origin of promotion of gas hydrate formation by hydrophobic solid particles[J]. The Journal of Physical Chemistry C, 2017, 121(7): 3830-3840.
[9]	GUO Yong, XIAO Wei, PU Wanfen, et al. CH₄ nanobubbles on the hydrophobic solid-water interface serving as the nucleation sites of methane hydrate[J]. Langmuir, 2018, 34(34): 10181-10186.
[10]	DUBE N K, OEFFINGER B E, WHEATLEY M A. Development and characterization of a nano-sized surfactant stabilized contrast agent for diagnostic ultrasound[C]//2003 IEEE 29th Annual Proceedings of Bioengineering Conference. IEEE, 2003: 102-103.
[11]	UCHIDA Tsutomu, YAMAZAKI Kenji, GOHARA Kazutoshi. Generation of micro-and nano-bubbles in water by dissociation of gas hydrates[J]. Korean Journal of Chemical Engineering, 2016, 33(5): 1749-1755.
[12]	UCHIDA Tsutomu, YAMAZAKI Kenji, GOHARA Kazutoshi. Gas nanobubbles as nucleation acceleration in the gas-hydrate memory effect[J]. The Journal of Physical Chemistry C, 2016, 120(47): 26620-26629.
[13]	FENG Yu, HAN Yuze, GAO Peng, et al. Study of hydrate nucleation and growth aided by micro-nanobubbles: Probing the hydrate memory effect[J]. Energy, 2024, 290: 130228.
[14]	LU Yi, LI Qingping, ZHANG Xiaoxin, et al. Molecular simulation on hydrate nucleation in the presence of initial ih ice and nanobubble[J]. Energy & Fuels, 2023, 37(4): 3307-3313.
[15]	蔡业彬, 国明成, 彭玉成, 等. 剪切流场中微孔发泡的气泡成核理论研究现状[J]. 中国塑料, 2004, 18(2): 5-11.
	CAI Yebin, GUO Mingcheng, PENG Yucheng, et al. Research status quo of theory for cell nucleation of microcellular foam in shear flow field[J]. China Plastics, 2004, 18(2): 5-11.
[16]	CHEN Yuyu, HU Yue, WANG Benlong, et al. Interfacial thermal fluctuations stabilize bulk nanobubbles[J]. Physical Review Letters, 2024, 133(10): 104001.
[17]	KASHCHIEV Dimo, FIROOZABADI Abbas. Driving force for crystallization of gas hydrates[J]. Journal of Crystal Growth, 2002, 241(1/2): 220-230.
[18]	刘纾曼. 水合物分解和生成的动力学模型[J]. 化学工程与装备, 2011(9): 5-8.
	LIU Shuman. Kinetic model of hydrate decomposition and formation[J]. Chemical Engineering & Equipment, 2011(9): 5-8.
[19]	ENGLEZOS P, KALOGERAKIS N, DHOLABHAI P D, et al. Kinetics of formation of methane and ethane gas hydrates[J]. Chemical Engineering Science, 1987, 42(11): 2647-2658.
[20]	李玉星, 朱超, 王武昌. 表面活性剂促进CO₂水合物生成的实验及动力学模型[J]. 石油化工, 2012, 41(6): 699-703.
	LI Yuxing, ZHU Chao, WANG Wuchang. Promoting effects of surfactants on carbon dioxide hydrate formation and the kinetics[J]. Petrochemical Technology, 2012, 41(6): 699-703.
[21]	周利民, 王兴亚, 张立娟, 等. 纳米气泡的同步辐射研究进展[J]. 中国科学: 物理学力学天文学, 2021, 51(9): 53-65.
	ZHOU Limin, WANG Xingya, ZHANG Lijuan, et al. Recent developments in nanobubble research based on synchrotron radiation techniques[J]. Scientia Sinica (Physica, Mechanica & Astronomica), 2021, 51(9): 53-65.
[22]	ZHOU Limin, WANG Xingya, SHIN Hyun-Joon, et al. Ultrahigh density of gas molecules confined in surface nanobubbles in ambient water[J]. Journal of the American Chemical Society, 2020, 142(12): 5583-5593.
[23]	WANG Shuo, ZHOU Limin, WANG Xingya, et al. Force spectroscopy revealed a high-gas-density state near the graphite substrate inside surface nanobubbles[J]. Langmuir, 2019, 35(7): 2498-2505.
[24]	WANG Chunlei, LI Zhaoxia, LI Jingyuan, et al. High density gas state at water/graphite interface studied by molecular dynamics simulation[J]. Chinese Physics B, 2008, 17(7): 2646-2654.
