Preparation of gelatin-based cationic exchange resin microspheres and separation performance for lactoferrin

doi:10.16085/j.issn.1000-6613.2024-1871

Abstract

Abstract:

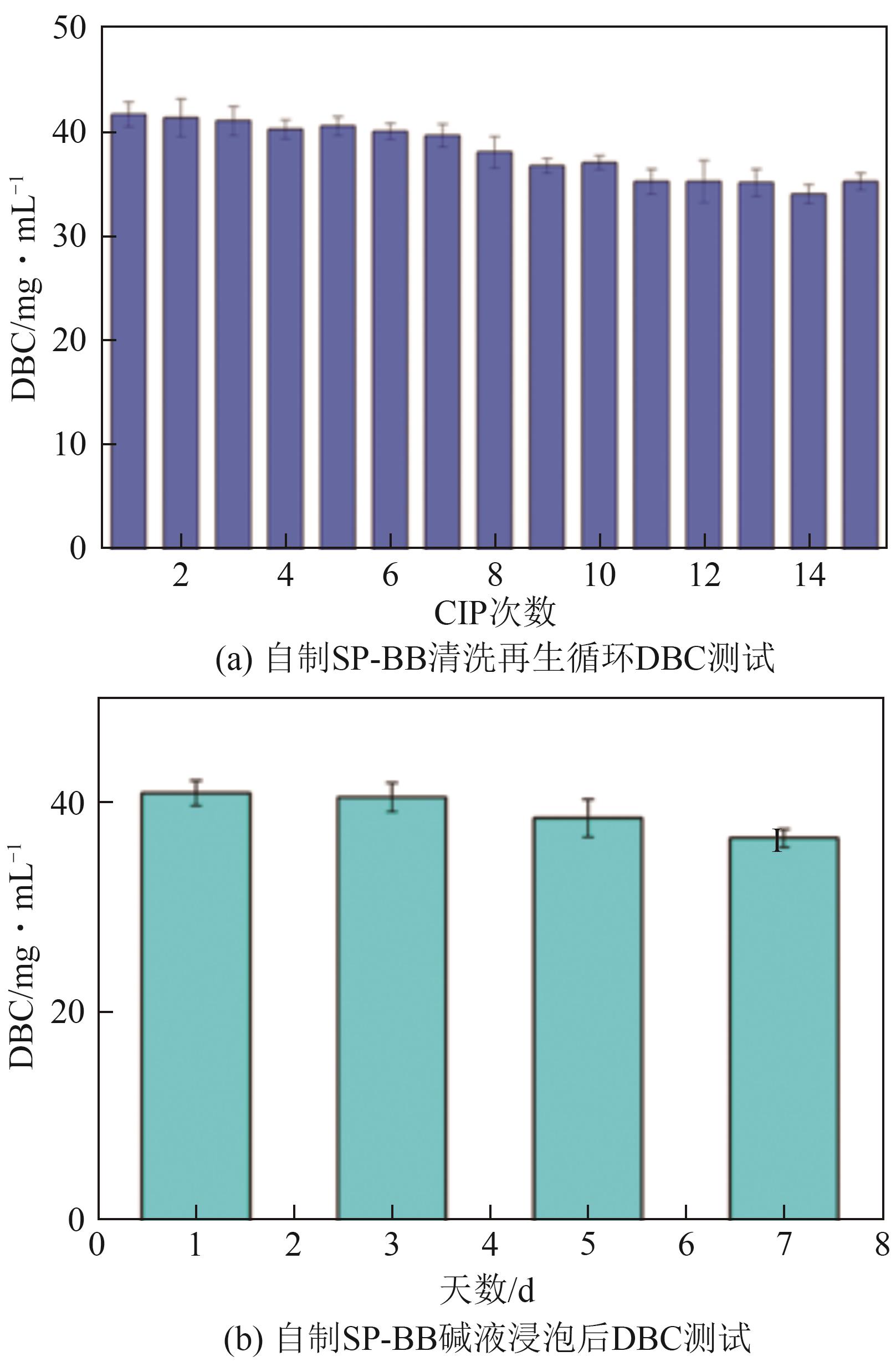

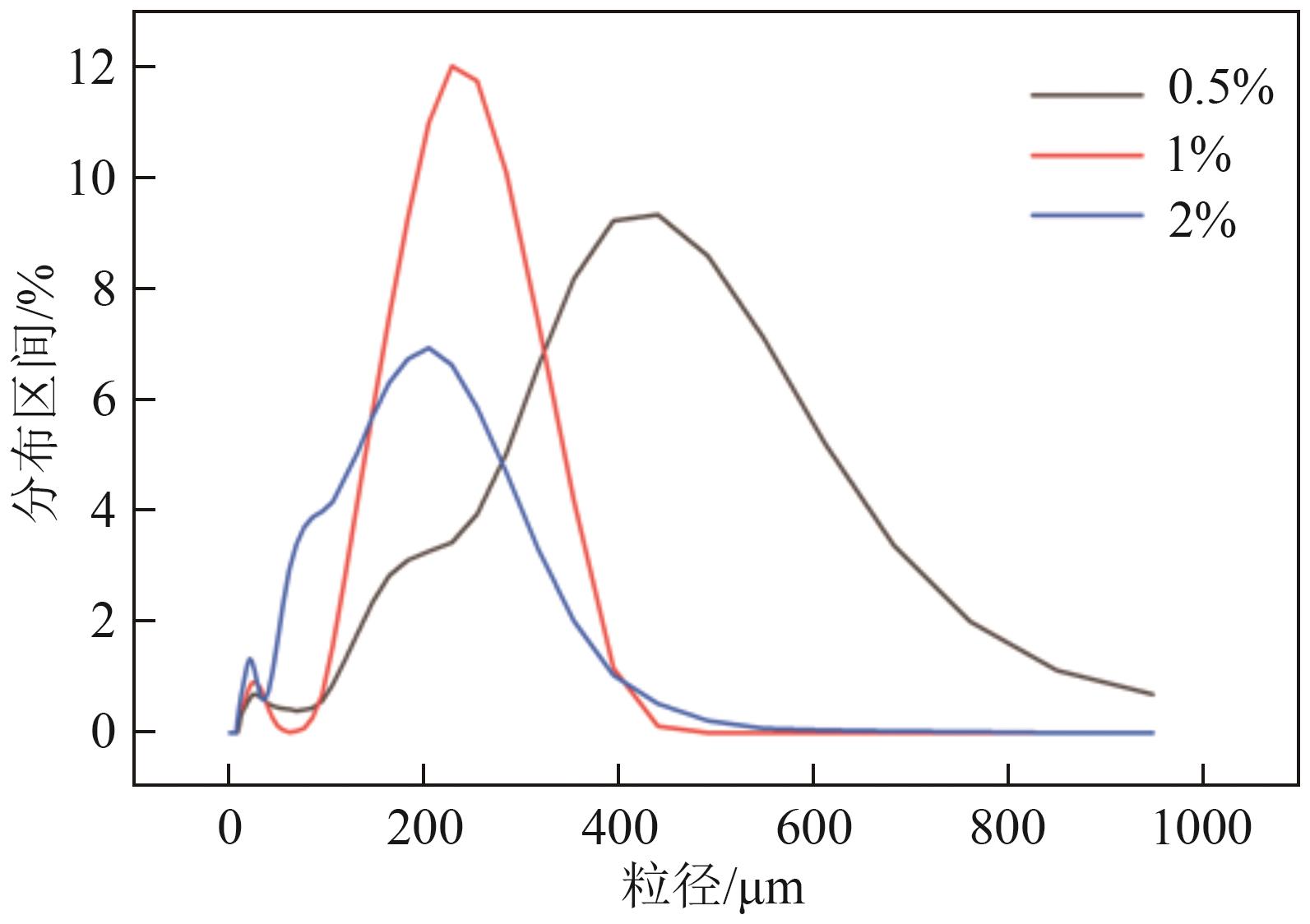

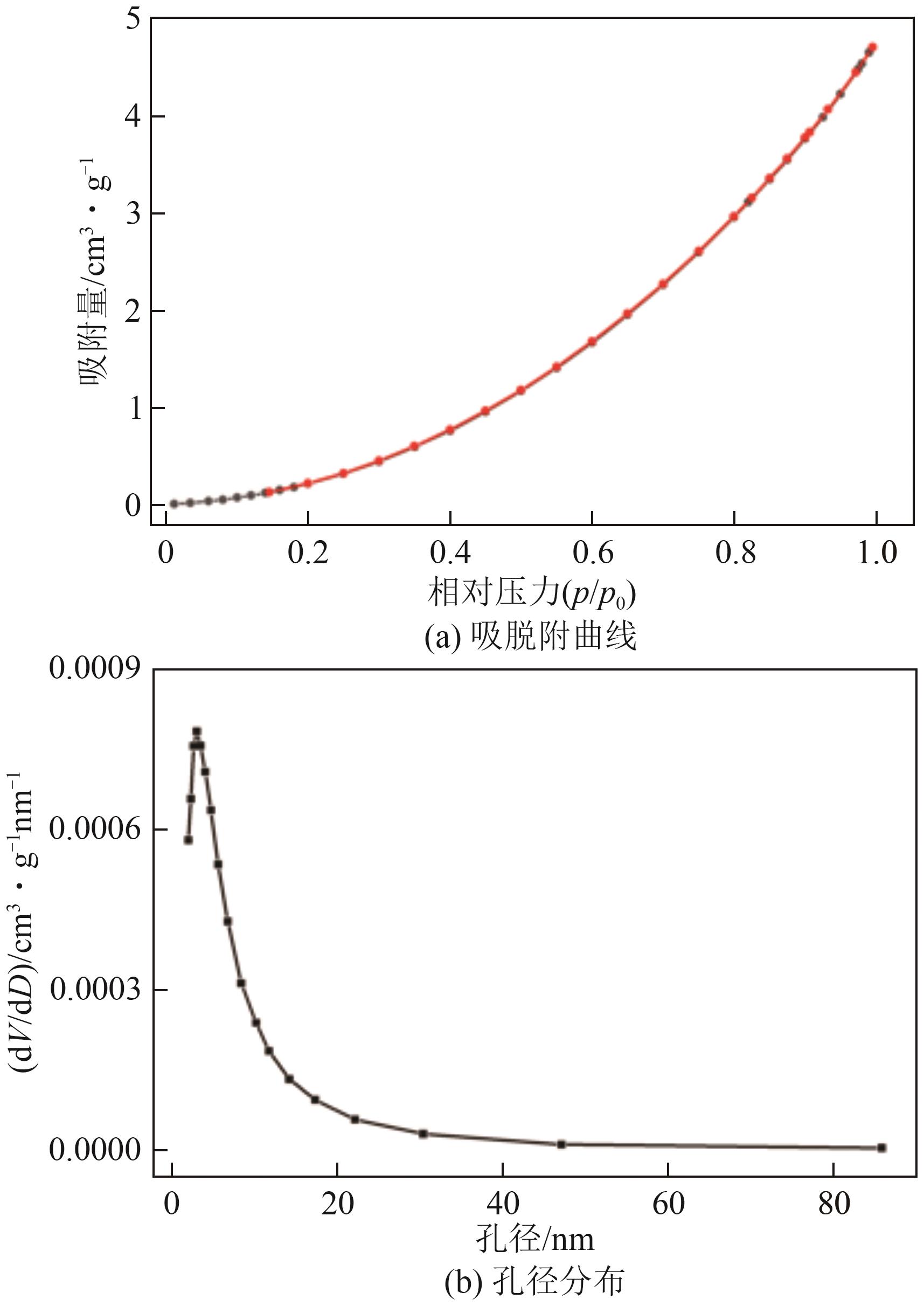

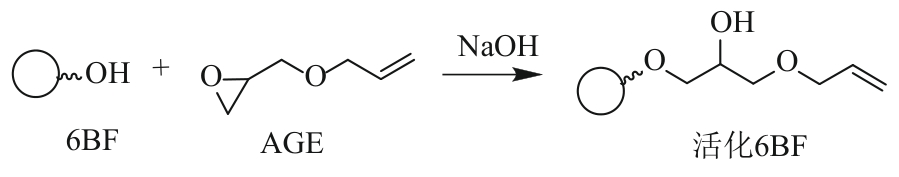

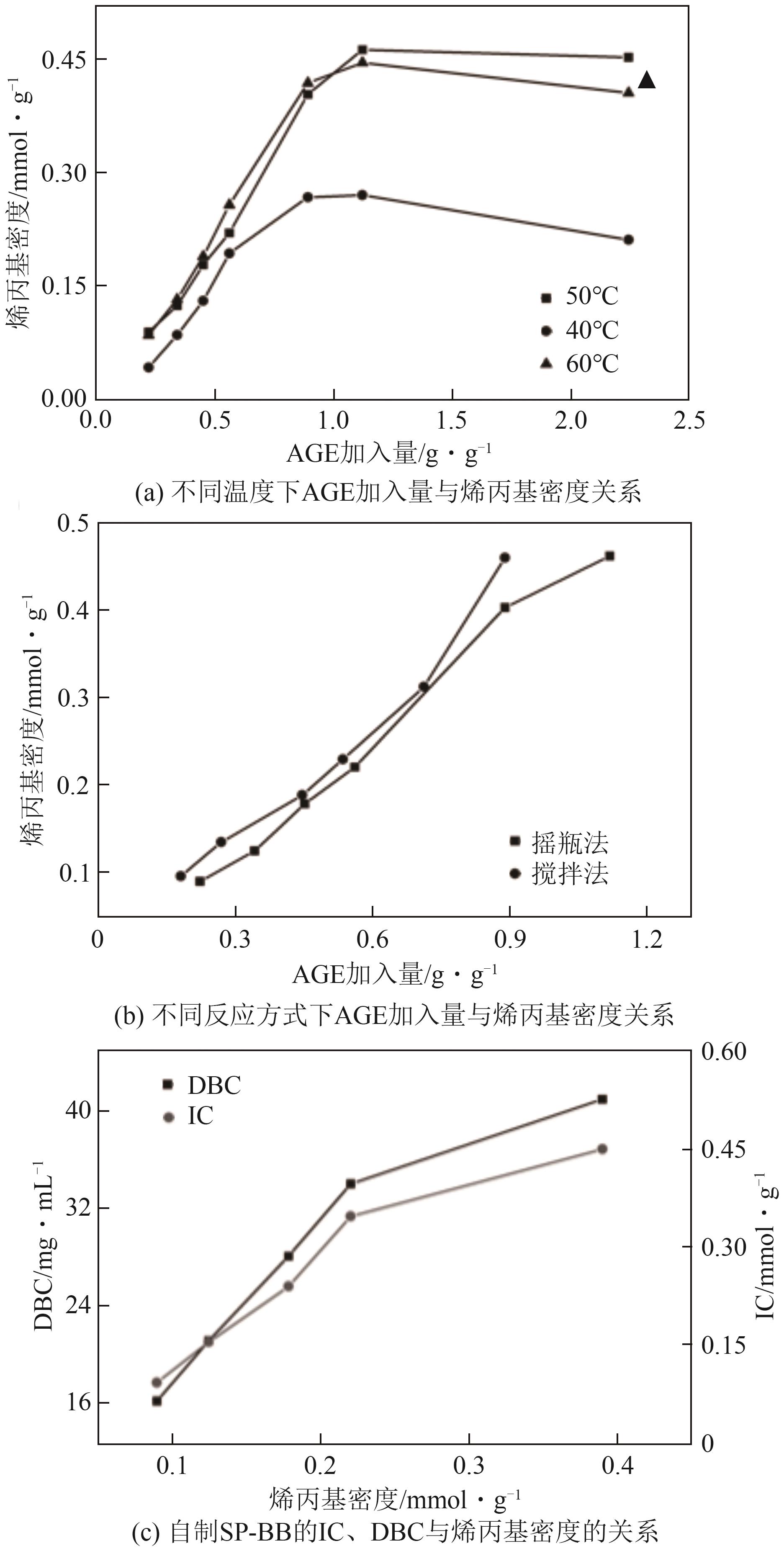

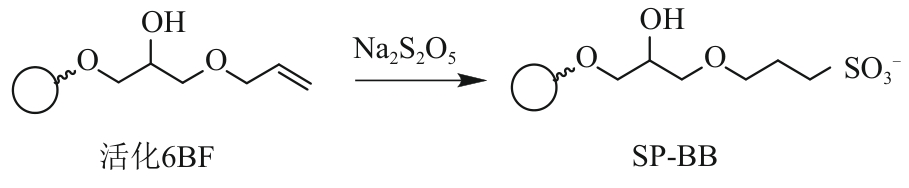

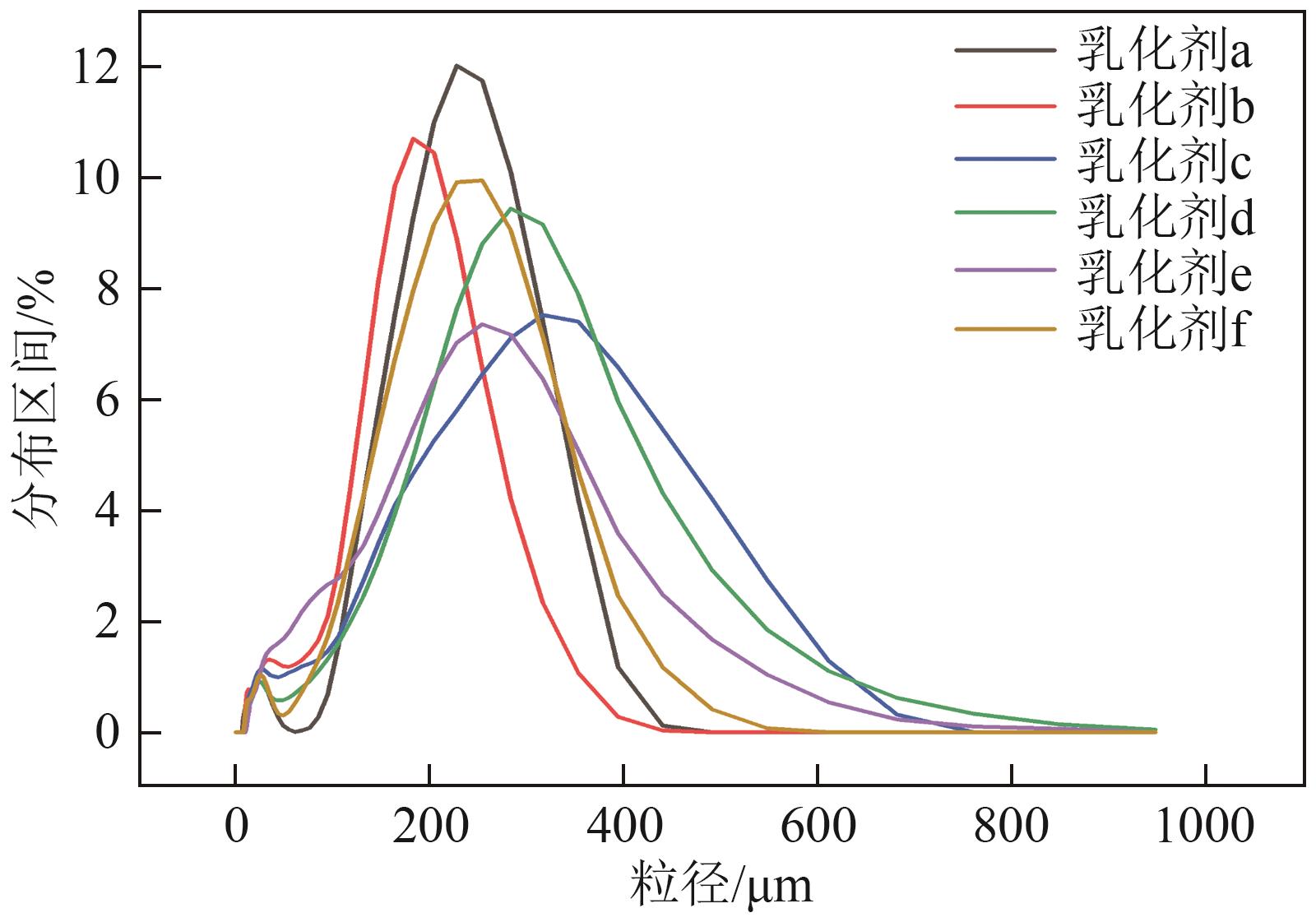

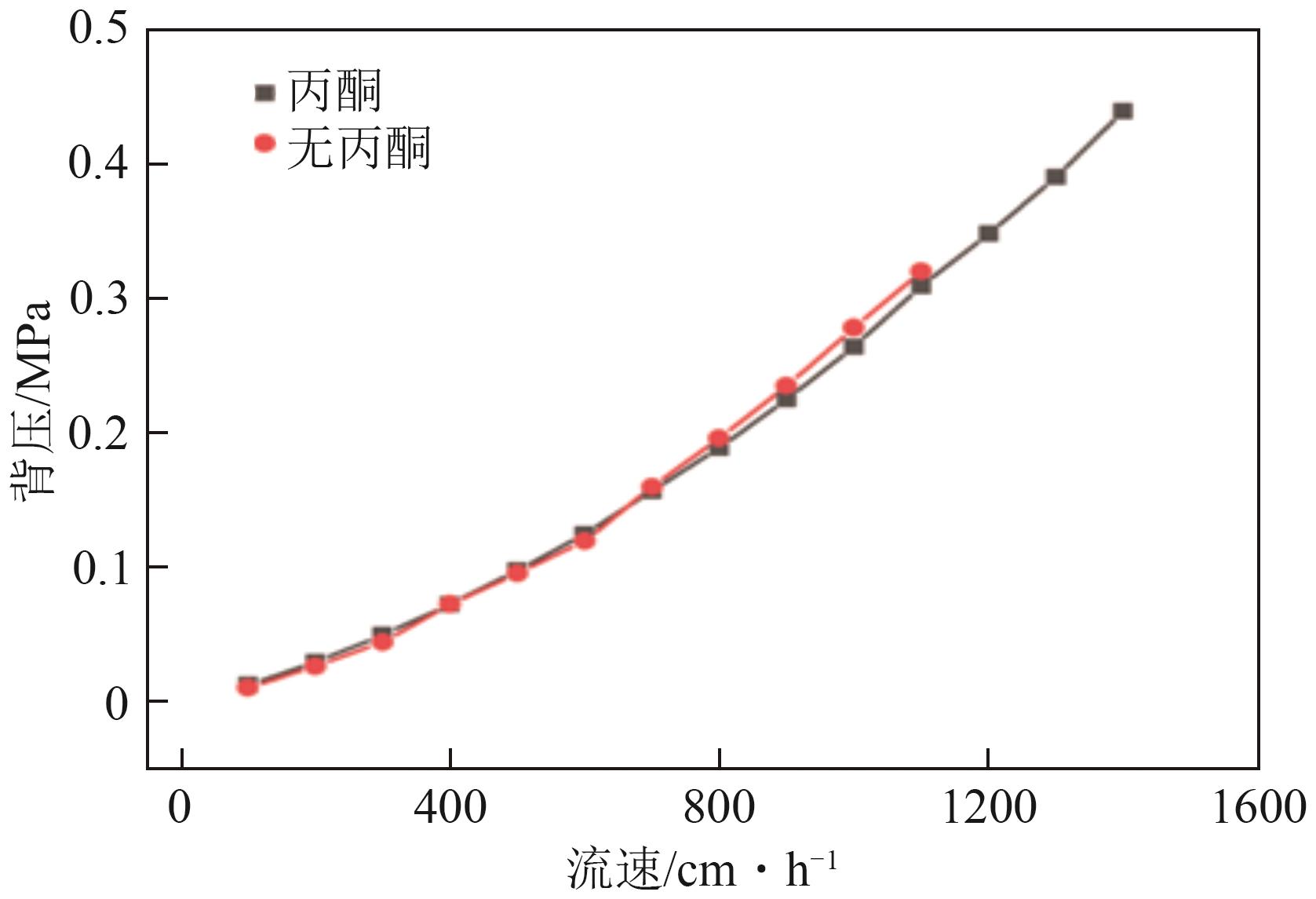

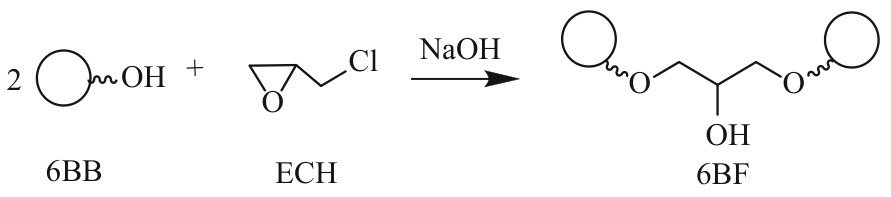

Ion exchange chromatography is one of the common methods for large-scale purification of proteins. In this study, a large-sized agarose gel bead (BB) (100—300μm) was used as the matrix to prepare cation exchange chromatography media by chemical cross-linking and ligand coupling. The separation and purification effect of lactoferrin (LF) in bovine colostrum was investigated. By optimizing the type and amount of emulsifier, transparent and spherical agarose microbeads were obtained. Subsequently, the matrix microbeads were chemically cross-linked and sulfonic acid-based ligand-coupled to prepare a high-rigidity cation exchange chromatography medium (SP-BB) with a pressure resistance of up to 0.45MPa. The results of scanning electron microscopy (SEM) and nitrogen adsorption-desorption tests showed that SP-BB microbeads contained rich pore structures, which were beneficial to the adsorption of protein molecules. Meanwhile, the adsorption kinetics, dynamics, and dynamic loading capacity (DBC) of SP-BB were tested using lysozyme (LYS) and bovine serum albumin (BSA) as model proteins, and the results showed that the performance of the self-prepared medium was better than that of domestic products and comparable to that of imported products. Finally, the exploration of the separation and purification of lactoferrin (LF) in bovine colostrum using SP-BB was conducted, and the results showed that SP-BB successfully captured LF from the mixture, and the purity of the LF in the first purification eluate was 88.8%, with a recovery rate of 71.2%. This work provides a new idea for the preparation of large-sized cation exchange media and the separation and purification of lactoferrin in bovine colostrum.

Key words: agarose microbeads, SP cation exchange medium, chromatography resin, protein adsorption, lactoferrin purification

摘要：

离子交换色谱是蛋白质大规模纯化的常见方法之一。本文以大粒径琼脂糖凝胶微球（BB）（100~300μm）为基质，进行化学交联与配体偶联制备阳离子交换色谱介质，并考察对牛初乳中乳铁蛋白（LF）的分离纯化效果。通过对乳化剂种类及用量探究，得到透明圆整且均一的大粒径琼脂糖微球。随后，对基质微球进行化学交联与磺酸基配体偶联，制备耐压达0.45MPa的高刚性磺酸基阳离子交换介质（SP-BB）。通过扫描电镜（SEM）和氮气吸脱附测试结果表明SP-BB微球中含有丰富的孔道结构，有利于蛋白分子的吸附。同时，以溶菌酶（LYS）和牛血清白蛋白（BSA）为模型蛋白对SP-BB开展吸附静力学、动力学以及动态载量（DBC）测试，结果表明自制SP-BB性能优于国产介质，略低于进口介质。最后应用自制SP-BB对牛初乳中乳铁蛋白（LF）分离纯化，结果表明SP-BB成功从牛初乳中捕获LF，液相色谱结果表明经一次纯化分离出的乳铁蛋白纯度高达88.8%，回收率为71.2%。本工作为一种大粒径阳离子交换介质的制备及其在牛初乳中乳铁蛋白的分离纯化提供了新思路。

关键词: 琼脂糖微球, SP阳离子交换介质, 色谱填料, 蛋白吸附, 乳铁蛋白纯化

CLC Number:

TQ033

WANG Wenjin, WANG Yixuan, ZENG Zeyang, YANG Jianhai, XU Cai, GUO Jia, DAI Liyan. Preparation of gelatin-based cationic exchange resin microspheres and separation performance for lactoferrin[J]. Chemical Industry and Engineering Progress, 2025, 44(12): 7141-7151.

王文瑾, 王意萱, 曾泽阳, 杨建海, 徐偲, 郭佳, 戴立言. 琼脂糖阳离子交换介质微球的制备及对乳铁蛋白的分离性能[J]. 化工进展, 2025, 44(12): 7141-7151.

Figures/Tables 19

References 9

[10]	DU Qianyan, LIN Dongqiang, XIONG Zhansen, et al. One-step purification of lactoferrin from crude sweet whey using cation-exchange expanded bed adsorption[J]. Industrial & Engineering Chemistry Research, 2013, 52(7): 2693-2699.
[11]	刘佳欣. 牛初乳中乳铁蛋白的提取及分离纯化工艺研究[D]. 沈阳: 沈阳化工大学, 2021.
	LIU Jiaxin. Study on extraction, separation and purification of lactoferrin from bovine colostrum[D]. Shenyang: Shenyang University of Chemical Technology, 2021.
[12]	白倩. 磺酸基(SP)阳离子交换介质的制备及其对重组人乳铁蛋白的纯化[D]. 北京: 北京化工大学, 2010.
	BAI Qian. Preparation of sulfonic acid group (SP) cation exchange medium and its purification for recombinant human lactoferrin[D]. Beijing: Beijing University of Chemical Technology, 2010.
[13]	ZHAO Xi, HUANG Lan, WU Jie, et al. Fabrication of rigid and macroporous agarose microspheres by pre-cross-linking and surfactant micelles swelling method[J]. Colloids and Surfaces B: Biointerfaces, 2019, 182: 110377.
[14]	Stellan HJERTÉN. The preparation of agarose spheres for chromatography of molecules and particles[J]. Biochimica et Biophysica Acta (BBA)-Specialized Section on Biophysical Subjects, 1964, 79(2): 393-398.
[15]	ÖĞRETMEN Özen Yusuf, DUYAR Hünkar Avni. The effect of different extraction methods and pre-treatments on agar yield and physico-chemical properties of Gelidium latifolium (Gelidiaceae, Rhodophyta) from Sinop Peninsula Coast of Black Sea, Turkey[J]. Journal of Applied Phycology, 2018, 30(2): 1355-1360.
[16]	BERBER I, COKMUS C, ATALAN E. Characterization of Staphylococcus species by SDS-PAGE of whole-cell and extracellular proteins[J]. Microbiology, 2003, 72(1): 42-47.
[17]	PORATH Jerker, JANSON Jan-Christer, Torgny LÅÅS. Agar derivatives for chromatography, electrophoresis and gel-bound enzymes[J]. Journal of Chromatography A, 1971, 60: 167-177.
[18]	曾泽阳, 徐偲, 金子杰, 等. 基于琼脂糖微球金属螯合层析介质的制备及性能评价[J]. 化工进展, 2024, 43(10): 5693.
	ZENG Zeyang, XU Cai, JIN Zijie, et al. Preparation and performance evaluation of metal chelating chromatography media based on agarose microspheres[J]. Chemical Industry and Engineering Progress, 2024, 43(10): 5693.
[19]	史清洪, 彭冠英, 孙舒, 等. 环氧氯丙烷活化琼脂糖凝胶过程强化及性能评价[J]. 过程工程学报, 2007, 7(4): 743-746.
	SHI Qinghong, PENG Guanying, SUN Shu, et al. Process intensification and characterization of agarose gel activation with epichlorohydrin[J]. The Chinese Journal of Process Engineering, 2007, 7(4): 743-746.
[20]	马光辉, 苏志国, 王连艳, 等. 膜乳化法制备尺寸均一的多糖高分子微球[C]// 2004年全国高分子材料科学与工程研讨会论文集, 2004.MA Guanghui, SU Zhiguo, WANG Lianyan,et al. Preparation of uniform polysaccharide microsphere by membrane emulsification technique[C]// Proceedings of the 2004 National Symposium on Polymer Materials Science and Engineering, 2004.
[21]	FISCHER Hannes, POLIKARPOV Igor, CRAIEVICH Aldo F. Average protein density is a molecular-weight-dependent function[J]. Protein Science, 2004, 13(10): 2825-2828.
[22]	HONG Yan, LIU Na, WEI Wei, et al. Protein adsorption to poly(ethylenimine)-modified sepharose FF: Ⅲ. Comparison between different proteins[J]. Journal of Chromatography A, 2014, 1342: 30-36.
[23]	BOWES Brian D, KOKU Harun, CZYMMEK Kirk J, et al. Protein adsorption and transport in dextran-modified ion-exchange media. Ⅰ: Adsorption[J]. Journal of Chromatography A, 2009, 1216(45): 7774-7784.
[24]	PAN Jianming, MA Yue, ZENG Jun, et al. Facile assembly of hollow polydopamine capsules onto macroporous poly(glycidyl methacrylate) foams for simultaneous removal of λ-cyhalothrin and copper ions[J]. Chemical Engineering Journal, 2016, 302: 670-681.
[25]	ZHAO Liangshen, LI Shasha, LIANG Chao, et al. High-strength and low-crystallinity cellulose/agarose composite microspheres: Fabrication, characterization and protein adsorption[J]. Biochemical Engineering Journal, 2021, 166: 107826.
[26]	LI Shasha, SHI Ce, AI Hao, et al. Bacterial cellulose-based submicrobundle framework-induced hyperporous cellulose microspheres functionalized by ionic liquids for anion exchange chromatography[J]. Chemical Engineering Journal, 2023, 475: 146030.
[1]	HONDIUS David C, EIGENHUIS Kristel N, MORREMA Tjado H J, et al. Proteomics analysis identifies new markers associated with capillary cerebral amyloid angiopathy in Alzheimer’s disease[J]. Acta Neuropathologica Communications, 2018, 6: 1-19.
[2]	ROLLAND Delphine C M, Megan S LIM, ELENITOBA-JOHNSON Kojo S J. Mass spectrometry and proteomics in hematology[J]. Seminars in Hematology, 2019, 56(1): 52-57.
[3]	CHEN Serene W, TAN Darryl, YANG Yuansheng, et al. Investigation of the effect of salt additives in Protein L affinity chromatography for the purification of tandem single-chain variable fragment bispecific antibodies[J]. mAbs, 2020, 12(1): 1718440.
[4]	JANSON Jan-Christer. Protein purification principles, high resolution methods, and applications[M]. 3rd ed. Hoboken: John Wiley & Sons, 2011.
[5]	QI Chongdi, CHEN Lei. Progress of ligand-modified agarose microspheres for protein isolation and purification[J]. Microchimica Acta, 2024, 191(3): 149.
[6]	YUN Eun Ju, YU Sora, KIM Kyoung Heon. Current knowledge on agarolytic enzymes and the industrial potential of agar-derived sugars[J]. Applied Microbiology and Biotechnology, 2017, 101(14): 5581-5589.
[7]	ZHANG Y, LU C, ZHANG J. Lactoferrin and its detection methods: A review[J]. Nutrients, 2021, 13(8): 2492.
[8]	GERSTWEILER Lukas, SCHAD Paulina, TRUNZER Tatjana, et al. Model based process optimization of an industrial chromatographic process for separation of lactoferrin from bovine milk[J]. Journal of Chromatography A, 2023, 1710: 464428.
[9]	WU Mianbin, XU Yinjun. Isolation and purification of lactoferrin and immunoglobulin G from bovine colostrum with serial cation-anion exchange chromatography[J]. Biotechnology and Bioprocess Engineering, 2009, 14(2): 155-160.

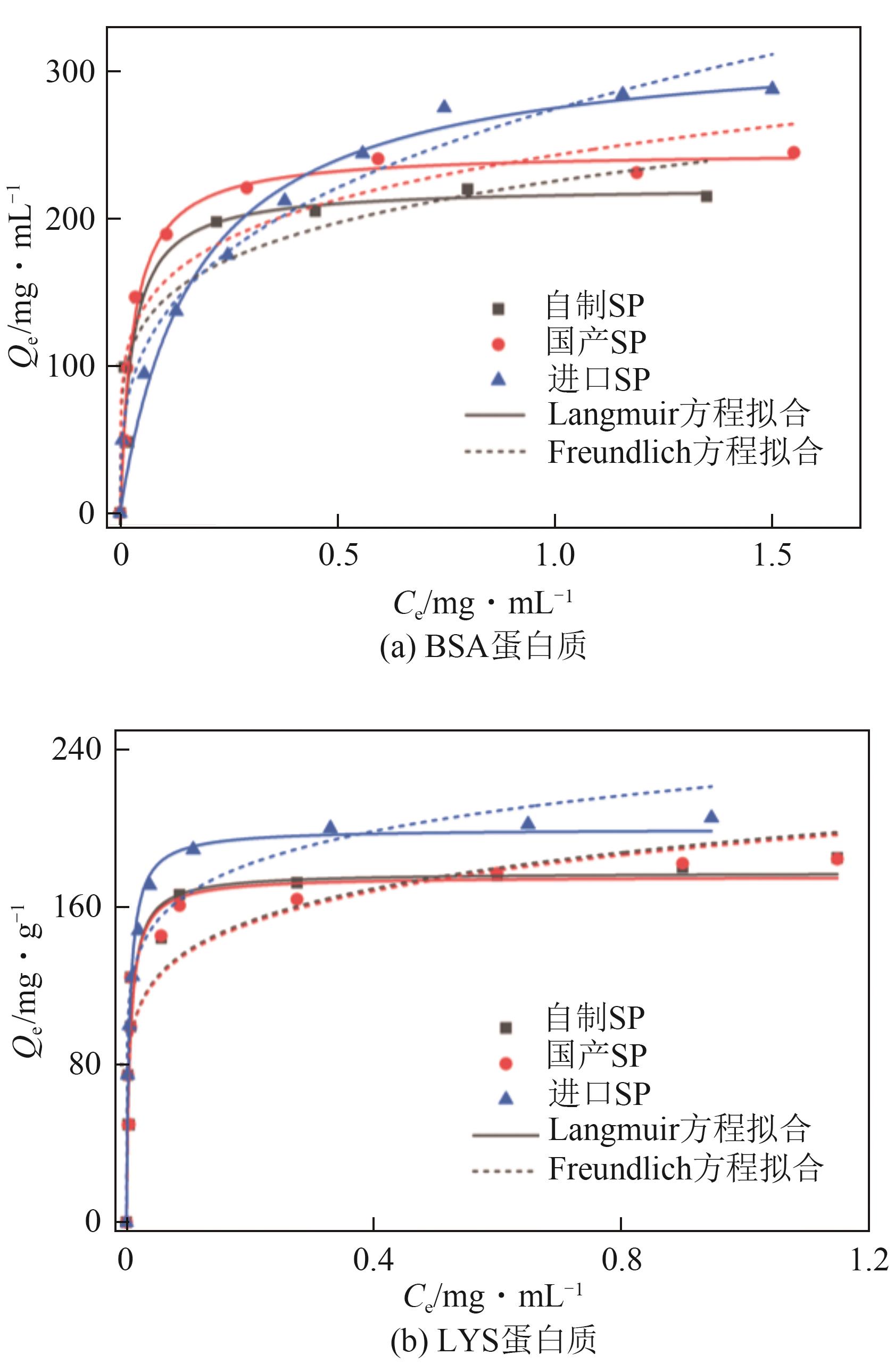

模型	参数	BSA			LYS
模型	参数	自制SP	国产SP	进口SP	自制SP	国产SP	进口SP
Langmuir	Q_m1/mg·g^-1	221.7	245.7	322.7	177.5	175.6	199.7
	K_d/mg·g^-1	0.027	0.029	0.173	0.0057	0.0056	0.005
	R²	0.921	0.987	0.974	0.94	0.937	0.985
Freundlich	K_f/mg^1-^1/n·L ^1/n ·g^-1	225.6	243.2	274.5	193.9	192.7	222.7
	n	5.15	5.22	3.19	6.76	6.73	7.96
	R²	0.887	0.9	0.97	0.876	0.885	0.939

模型	参数	BSA			LYS
模型	参数	自制SP	国产SP	进口SP	自制SP	国产SP	进口SP
Langmuir	Q_m1/mg·g^-1	221.7	245.7	322.7	177.5	175.6	199.7
	K_d/mg·g^-1	0.027	0.029	0.173	0.0057	0.0056	0.005
	R²	0.921	0.987	0.974	0.94	0.937	0.985
Freundlich	K_f/mg^1-^1/n·L ^1/n ·g^-1	225.6	243.2	274.5	193.9	192.7	222.7
	n	5.15	5.22	3.19	6.76	6.73	7.96
	R²	0.887	0.9	0.97	0.876	0.885	0.939

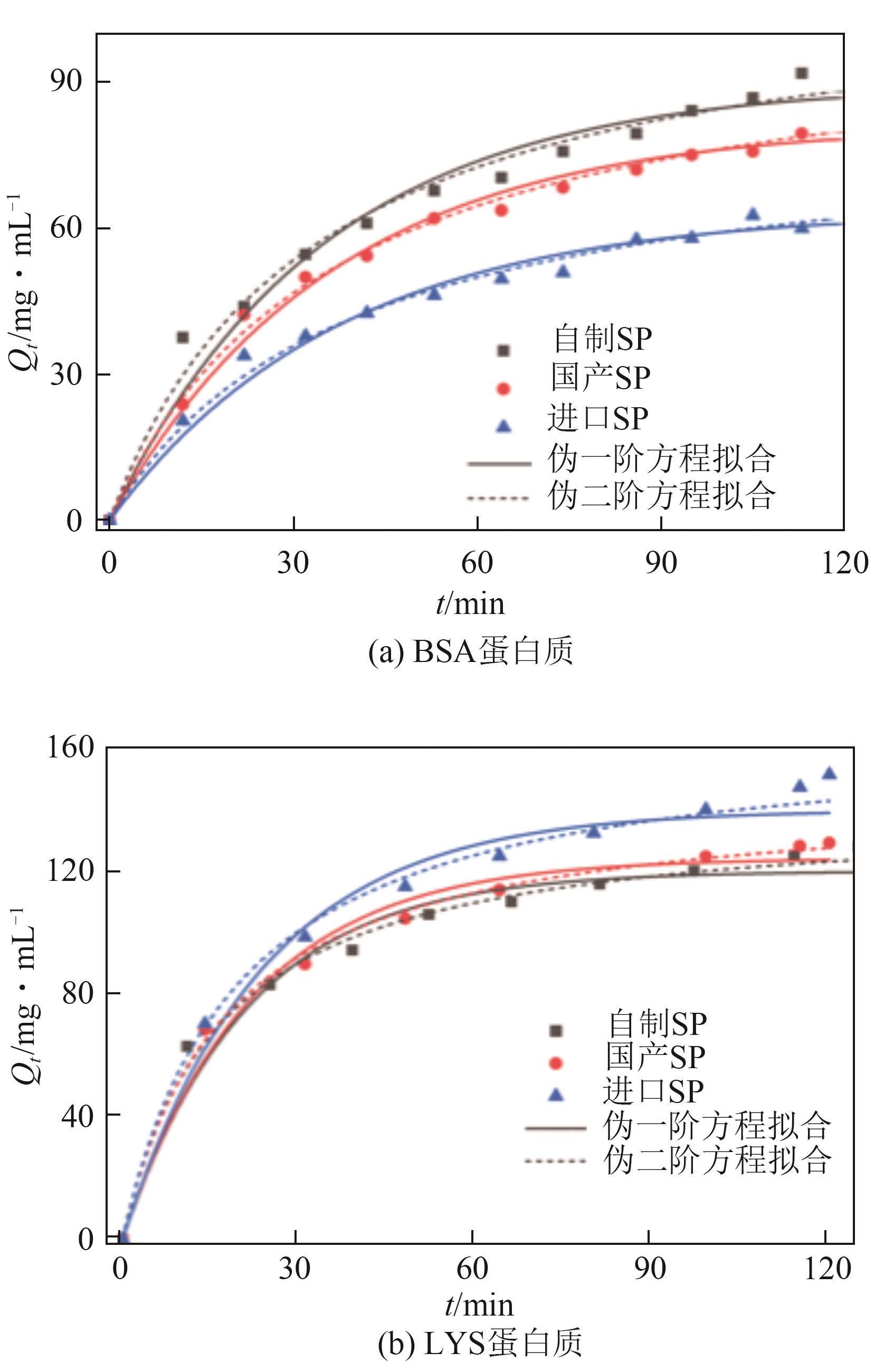

模型	参数	BSA			LYS
模型	参数	自制SP	国产SP	进口SP	自制SP	国产SP	进口SP
伪一阶方程	Q_e1/mg·g^-1	89.8	81.4	63.6	120.2	124.4	140.1
	k₁/min^-1	0.0287	0.0275	0.0266	0.0468	0.0457	0.0419
	R²	0.926	0.964	0.97	0.958	0.972	0.952
伪二阶方程	Q_e2/mg·g^-1	112.9	105	82.2	140.4	146.6	166.5
	k₂/min^-1	2.65	2.54	3.13	0.0004	0.0003	0.0003
	R²	0.948	0.975	0.982	0.984	0.995	0.979

模型	参数	BSA			LYS
模型	参数	自制SP	国产SP	进口SP	自制SP	国产SP	进口SP
伪一阶方程	Q_e1/mg·g^-1	89.8	81.4	63.6	120.2	124.4	140.1
	k₁/min^-1	0.0287	0.0275	0.0266	0.0468	0.0457	0.0419
	R²	0.926	0.964	0.97	0.958	0.972	0.952
伪二阶方程	Q_e2/mg·g^-1	112.9	105	82.2	140.4	146.6	166.5
	k₂/min^-1	2.65	2.54	3.13	0.0004	0.0003	0.0003
	R²	0.948	0.975	0.982	0.984	0.995	0.979
